W25I Laboratory Extruder
W25i is a prototype single-screw extrusion unit featuring an innovative induction heating system that uses electromagnetic induction to reach operating temperatures very quickly. Thanks to this, the plasticizing system and the extrusion head can be heated up to 650°C within 10–20 minutes.
This solution significantly expands polymer processing capabilities, as it allows thermoplastics to be processed at temperatures above 400°C, which is often impossible with standard extrusion units. W25i therefore opens up new possibilities for manufacturing and developing polymer products with operating temperatures above 200°C.
The unit uses three independent heating zones (two on the barrel and one on the head), with each zone powered by a separate medium-frequency generator and controlled by its own temperature controller with a sensor. The system includes a 7.5 kW main motor, a frequency inverter, and a programmable control system with a 10" touch panel.

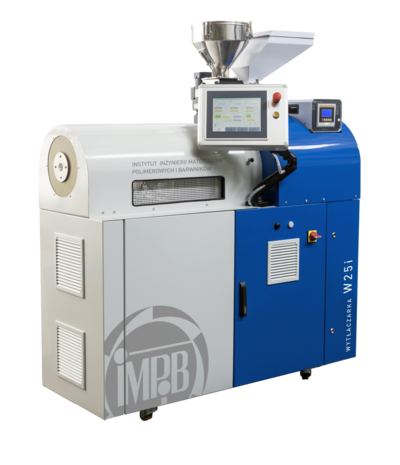

W25I Laboratory Extruder
W25I Laboratory Extruder
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative IMPIB products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.
If you need more information do not hesitate to contact us.
Configuration code
Fast heat-up, high temperatures, stable process, and new polymer processing possibilities
W25i is a prototype single-screw extrusion unit with an innovative induction heating system. It uses electromagnetic induction, allowing the plasticizing system and the head to be heated up to 650 °C in a very short time (approx. 10–20 minutes). This solution enables processing of thermoplastics above 400 °C, which is often impossible with standard extrusion units.
If you need consultation, integration, or recommendations for the best configuration for your materials, please contact our technicians.

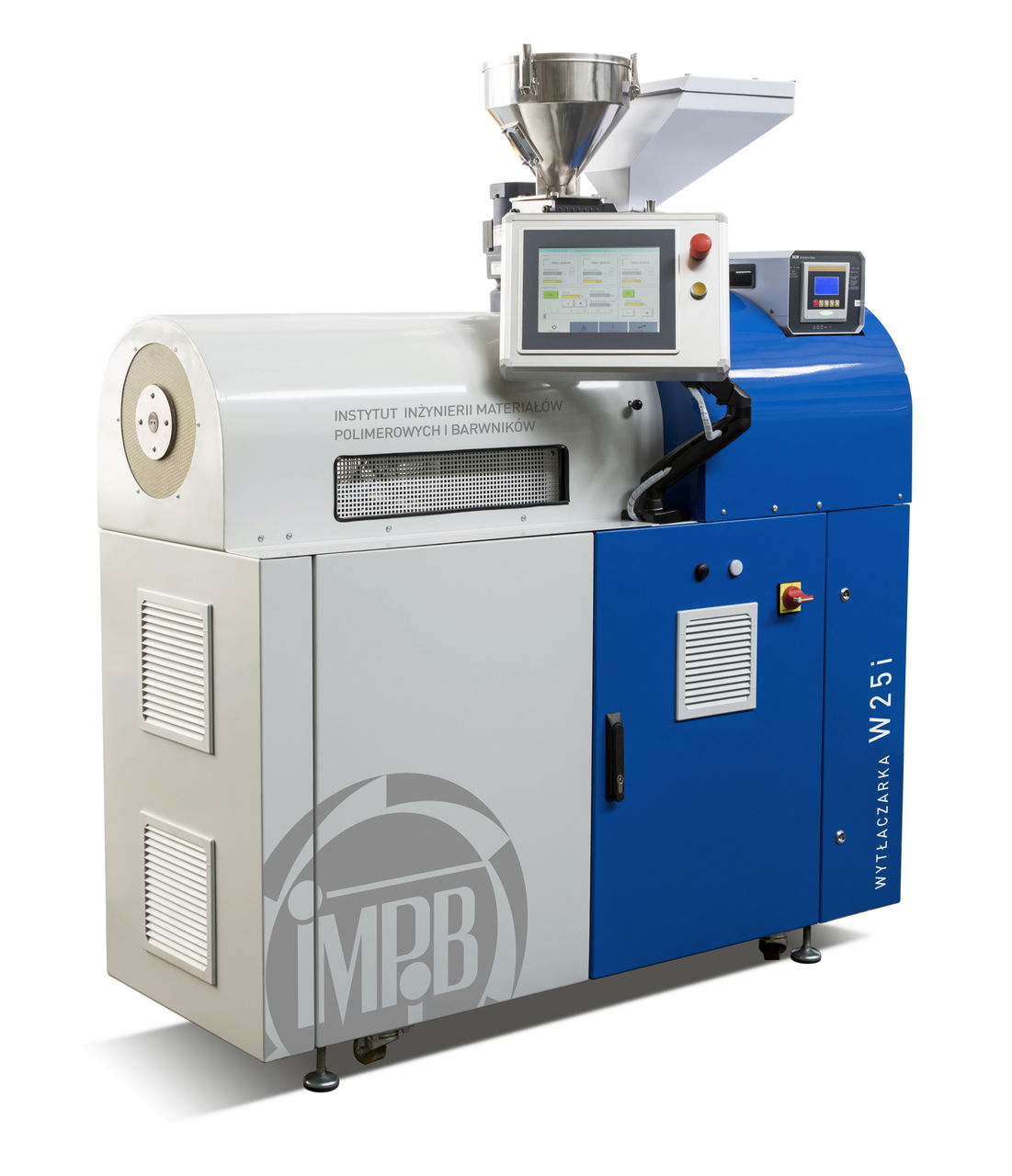

W25i – prototype extrusion unit with induction heating
Induction heating on the W25i significantly reduces the heat-up time of both the barrel and the head, while also contributing to high stability of the extrusion process. The unit opens up new possibilities for the development and production of polymer products intended for operating temperatures above 200 °C.
The extrusion unit is equipped with three independent heating zones: two zones are located on the barrel and the third zone on the head. Each zone is powered by its own medium-frequency generator and controlled by a separate temperature controller with a sensor.

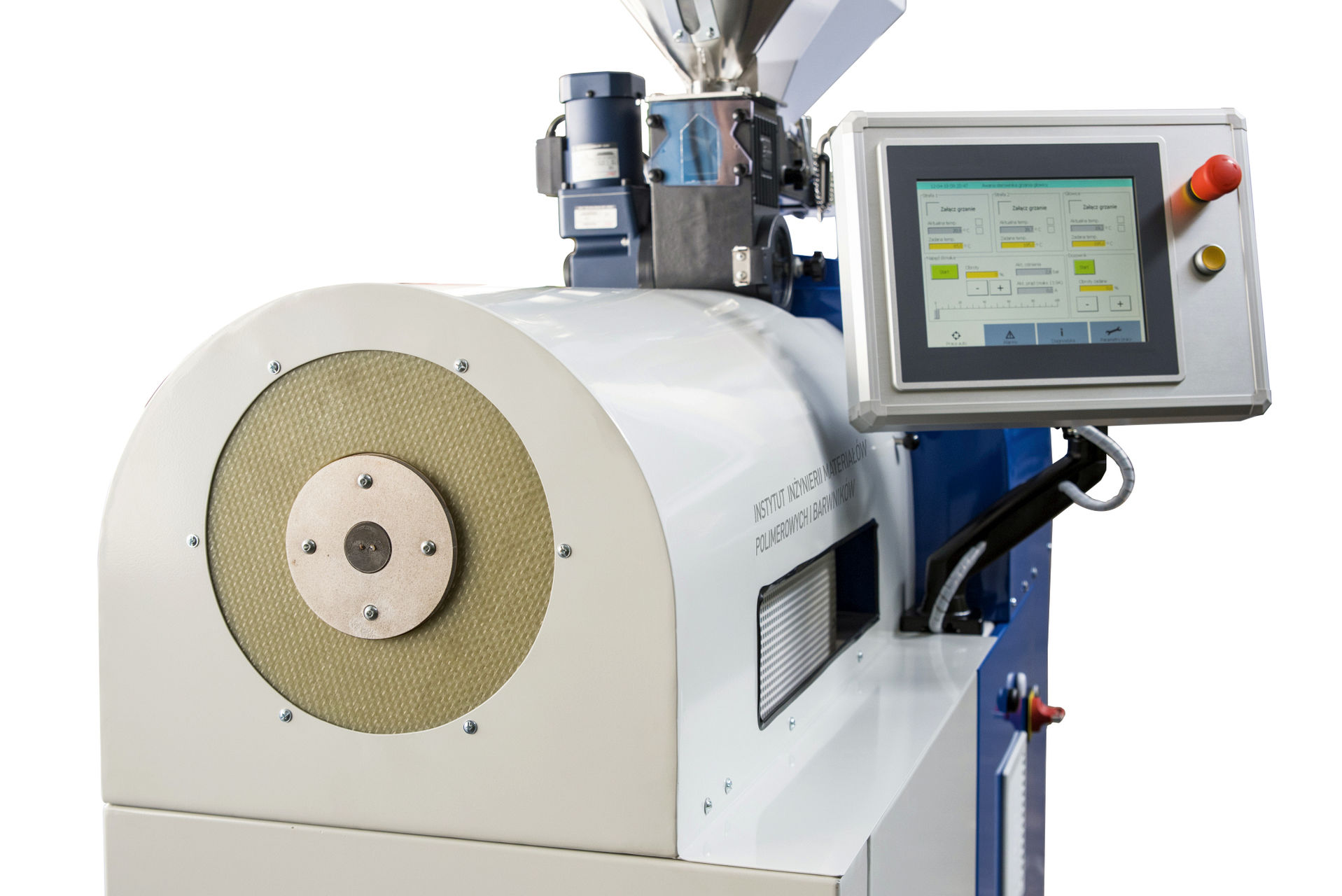

The system includes a 7.5 kW main motor (with a PTC sensor), a frequency inverter, and a programmable control system with a 10" touch panel for convenient operation and process setup.
Technical specifications
| Machine type: | Prototype single-screw extrusion unit |
|---|---|
| Heating: | Induction (electromagnetic induction) |
| Max. system temperature: | up to 650 °C |
| Heat-up time: | approx. 10–20 minutes |
| Heating zones: | 3 (2× barrel + 1× head) |
| Zone control: | Separate generator + temperature controller + sensor for each zone |
| Main motor: | 7.5 kW (PTC) |
| Control: | Programmable control system + 10" touch panel |
| Suitable materials: | Thermoplastics + high-temperature polymers (e.g., PEEK, PPS) |
