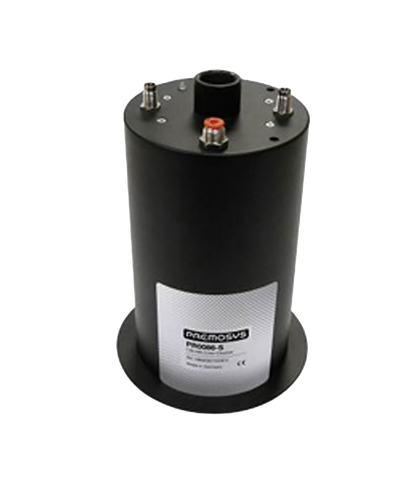

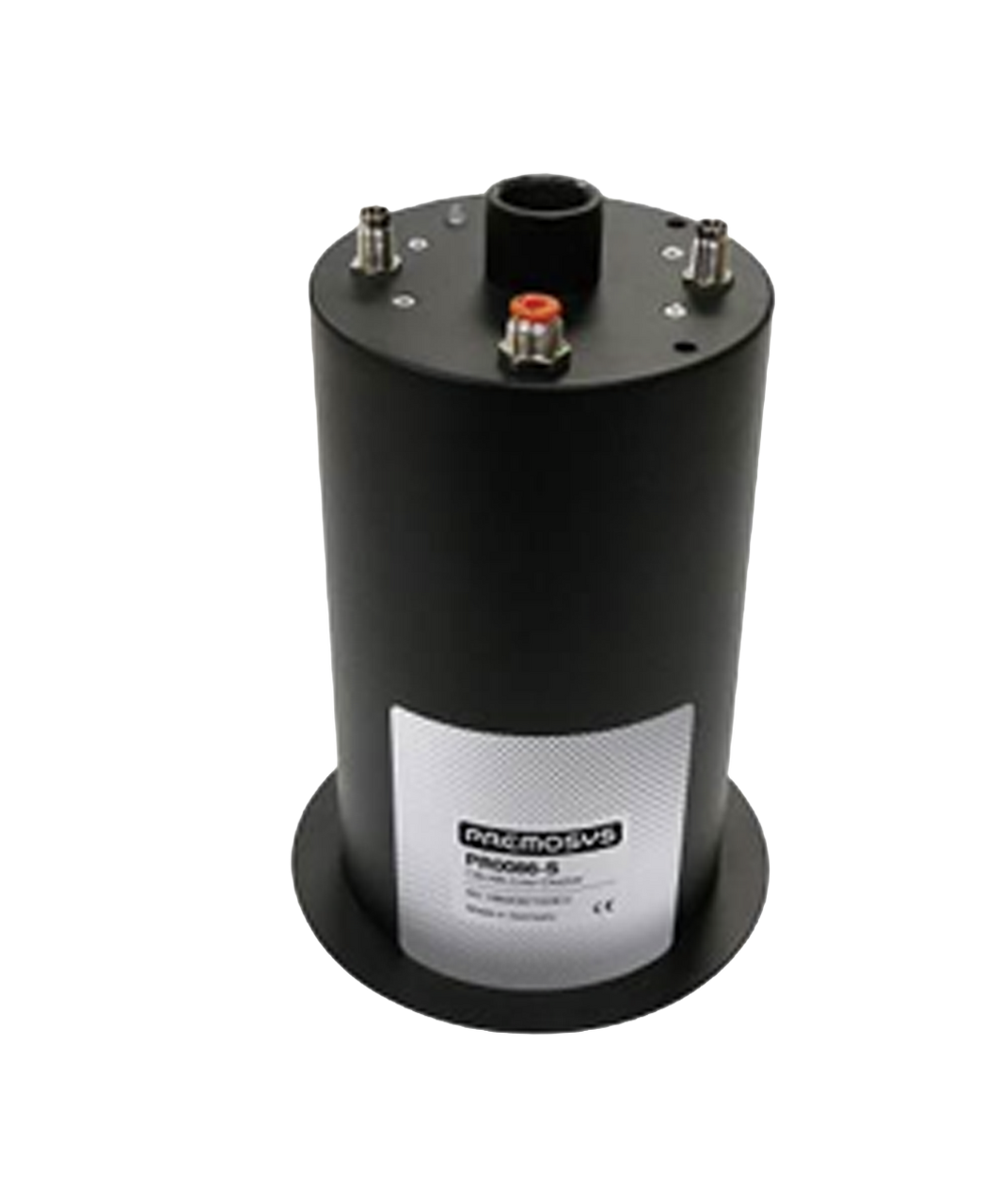

PR0086-S – CIELab Color Checker
PR0086-S (CIELab Color Checker) is an industrial sensor for color measurement and surface quality inspection. It provides outputs in the CIE 1976 Lab* color space, tristimulus values X/Y/Z, yellowness index (YI E313; YI D1925), whiteness index (CIE whiteness W; tint TW), and ΔE.
The sensor uses a white LED light source and achieves repeatability of < 0.05 ΔE (referenced to the sample).
Communication is via the RS485 interface (proprietary protocol), and parameters can be configured through the serial interface.
Power supply is 24 V DC (±10%), protection rating IP24, and operating temperature range is 10 to 50°C.
Precise color measurement, easy installation, high repeatability, and reliability
PR0086-S (CIELab Color Checker) is an industrial system for accurate color measurement and surface quality inspection in the CIE 1976 L*a*b* color space. It is designed for measuring non-homogeneous surfaces and bulk materials, such as plastic pellets. Thanks to its white LED light source and high measurement repeatability, it is suitable for stable process control and evaluation of color deviations (ΔE). Installation is straightforward, and the system can be parameterized via a serial interface.

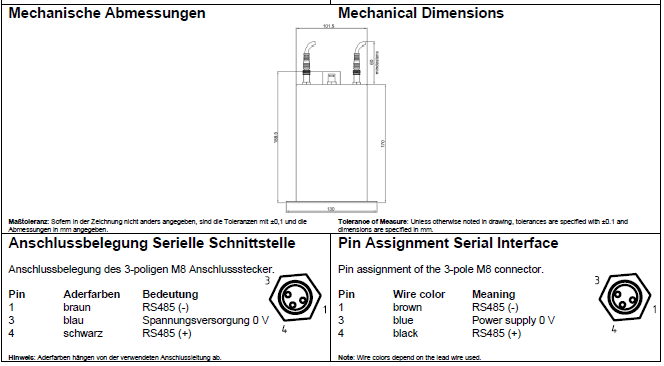

If you are unsure about proper wiring or settings, contact our technicians – we will help you with integration and recommend the right configuration.
PR0086-S – CIELab Color Checker
The PR0086-S sensor provides outputs in CIE 1976 L*a*b* as well as tristimulus values X/Y/Z, Yellowness Index (YI), and Whiteness Index, including evaluation of the color difference ΔE. Communication is via RS485 (proprietary protocol), and parameterization is performed through the serial interface.
The mechanical installation is designed for stable measurement at a 15° working angle. The detection area depends on the working distance, allowing you to select the optimal setup for your application (e.g., spot measurement vs. larger-area measurement).
Technical specifications
| Power supply: | 24 V DC ± 10%, max. 200 mA |
|---|---|
| Spectral range: | 380 nm to 780 nm |
| Outputs: | CIE 1976 L*a*b*, Tristimulus (X, Y, Z), Yellowness Index (YI E313; YI D1925), Whiteness Index (CIE whiteness W; tint TW), ΔE |
| Light source: | White LED |
| Repeatability: | < 0.05 ΔE (referenced to the sample) |
| Interface: | RS485 |
| Communication protocol: | Proprietary |
| Parameterization: | Via serial interface |
| Material / design: | Stainless steel body, painted |
| Mounting: | Thread M20x1 |
| Protection rating: | IP24 |
| Operating temperature: | 10 °C to 50 °C |
| Operating humidity: | 35% to 85% RH |
| Storage temperature: | −10 °C to 60 °C |
| Weight: | approx. 1100 g |

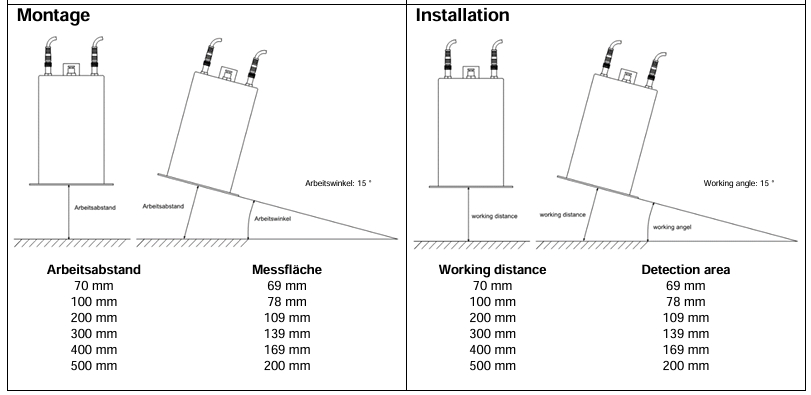

Installation / working geometry
| Working angle: | 15° |
|---|---|
| Working distance / detection area: | 70 mm → 69 mm 100 mm → 78 mm 200 mm → 109 mm 300 mm → 139 mm 400 mm → 169 mm 500 mm → 200 mm |
Safety notes
The system is not intended to be used as a safety-critical machine component and is not approved for medical applications. During operation, do not look into the light source for extended periods and never point the light beam into anyone’s eyes.
