Motorized Z-axis
The motorized Z stand provides controlled vertical positioning of the sensor. The 25 × 25 mm manual cross table enables precise positioning of the measurement point in the X/Y plane.
Motorized ZXY 25 × 25 mmTwo-axis Control
LNP 2

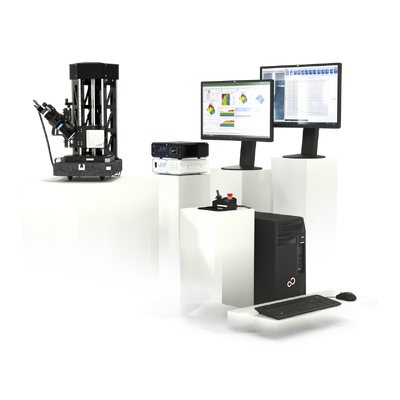

LNP® 2 represents an advanced configuration of the LNP® nano touch measurement platform. It combines a sensor with a 4 mm displacement range and standard 10 nm resolution with a motorized Z-axis stand, a 25 × 25 mm manual cross table, two-axis control, and a 5 MP USB 3.0 camera with a telecentric lens and LED ring illumination.
LNP® nano touch Advanced software expands the workstation capabilities with advanced force- and displacement-controlled procedures, profile and layer measurements, sinusoidal modulation, and, depending on the accessories used, tribological or topographic measurements. This makes LNP® 2 a flexible laboratory system suitable for both standardized testing and detailed material characterization.
Microindentation Measurement Workstation
LNP® 2
LNP® 2 is an advanced laboratory workstation based on the LNP® nano touch sensor. A motorized Z-axis, manual cross table, telecentric camera system, and Advanced software create a flexible platform for standardized testing and detailed material characterization.
LNP® nano touch Motorized Z-axis XY 25 × 25 mm Advanced Software
Measurement SystemLNP® nano touch
Displacement Range4 mm
PositioningMotorized Z + XY
SoftwareAdvanced
Advanced Workstation for Flexible Material Analysis
LNP® 2 expands the basic nano touch concept with motorized vertical positioning, more precise optical sample inspection, and advanced software. It is designed for users who need to switch between measurement methods while maintaining a stable and reproducible laboratory workflow.
Telecentric Camera System
The 5 MP USB 3.0 camera with telecentric lens and LED ring illumination facilitates selection and inspection of the measurement point, especially on small or geometrically complex samples.
5 MP USB3Telecentric LensLED ringlight
nano touch Advanced
The Advanced software supports force- and displacement-controlled procedures, profile and layer measurements, sinusoidal modulation, and, depending on the configuration, tribological and topographic measurements.
F / s ControlProfilesModulation
Key Benefits of LNP® 2
The configuration is focused on precise laboratory measurement with a higher level of control, optical inspection, and software flexibility than the basic LNP® 1.
01
Nanometer Resolution
The optical incremental system provides a standard resolution of 10 nm over a 4 mm displacement range.
02
Wide Measuring Force Range
The manufacturer's current product information specifies a range of 0.05 mN to 1.4 N and an optional measuring-head version up to 10 N.
03
Advanced Measurement Procedures
Advanced software enables more complex measurement sequences and extends the system with analytical modes beyond basic standardized tests.
04
Modular Expansion
The workstation can be expanded with positioning units, fixturing components, a heating table, Tribodetect, reference blocks, and various probe tips.
Standard and Analytical Methods
The manufacturer presents LNP® 2 as a flexible Work Solution for multiple measurement methods. Availability of a specific method depends on the probe tip, software configuration, sample fixturing, and any additional equipment.
Standard Test Methods
- IRHD-M
- Modified IRHD-M
- VLRH
- Shore A/M
- Shore 00
- Shore 000
- Shore A Micro
Analytical Methods
- Flexural Modulus
- Young's Modulus according to LNP
- Adhesion
- Hardness Topography
- Microtribology
- Rheology
- Spatially Resolved DMA
iImportant: the listed methods represent the capabilities of the LNP® 2 platform and configuration. Some methods require a corresponding probe tip, sample holder, sensor, or additional accessories. The specific system configuration should be selected according to the required application.
Technical Specifications of the LNP® nano touch Sensor
The values below are published on the manufacturer's current product page for LNP® 2.
| Workstation Order Number | 031792 |
|---|---|
| Sensor | LNP® nano touch |
| Displacement Measurement System | Optical Incremental |
| Displacement Range | 4 mm |
| Displacement Resolution | 10 nm standard |
| Displacement Linearity | < 200 nm relative to the measuring range |
| Force Linearity | 0–1400 mN: < 0.3 % relative to the measuring range |
| Measuring Force Generation | Electromechanical |
| Measuring Force | 0.05 mN to 1.4 N; optionally up to 10 N |
| Measuring Force Resolution | 0.6 mN (600 µN) |
| Z Stand | Motorized |
| XY Positioning | Manual Cross Table 25 × 25 mm |
| Control | Two-axis |
| Camera | 5 MP USB 3.0, telecentric lens, LED ring illumination |
| Software | LNP® nano touch Advanced |
Scope of Supply
Basic configuration according to the current LNP product page.
Measurement Workstation
- LNP® nano touch
- Motorized Z Stand
- Manual Cross Table 25 × 25 mm
- Two-axis Control
- Camera Holder
- 5 MP USB 3.0 camera with telecentric lens and LED ring illumination
- LNP® nano touch Advanced Software
PC Workstation and Services
The manufacturer specifies a complete PC workstation with two monitors and office software. The exact current computer and operating system configuration should be confirmed in the specific quotation.
- Installation
- Initial Setup
- Individual Operator Training
Recommended Equipment and Expansion Options
LNP offers a range of components for Work Solutions covering positioning, fixturing, temperature measurement, and additional analytical methods.
Stages and Positioning Units
Crosstable 25 mm, Solid Joint Crosstable V1, and Angle Adjustment allow sample positioning to be adapted to the specific measurement task.
Holders and Vises
Sample Holder Planar, 3D Perforated Plate, Clamping Pieces, and 30 / 50 / 65 mm parallel vises accommodate various sample geometries.
Temperature, Tribology, and Reference Standards
Heating Table PE, Tribodetect, a hardness reference block, and various LNP® Probe Tips expand the workstation according to the required method.
iRecommendation: LNP® 2 is a suitable choice where the basic manual workstation is no longer sufficient and a motorized Z-axis, higher-quality optics, and Advanced software are required, but fully motorized X/Y positioning is not necessary. For automatic surface mapping, LNP® 3DC or LNP® 323 may be more suitable.
