Motorized X/Y/Z Axes
Travel ranges of 300 × 300 × 250 mm provide a large working area for automatic positioning of samples, finished parts, and multiple measurement locations.
300 × 300 × 250 mmAutomatic XYZSeries Measurements

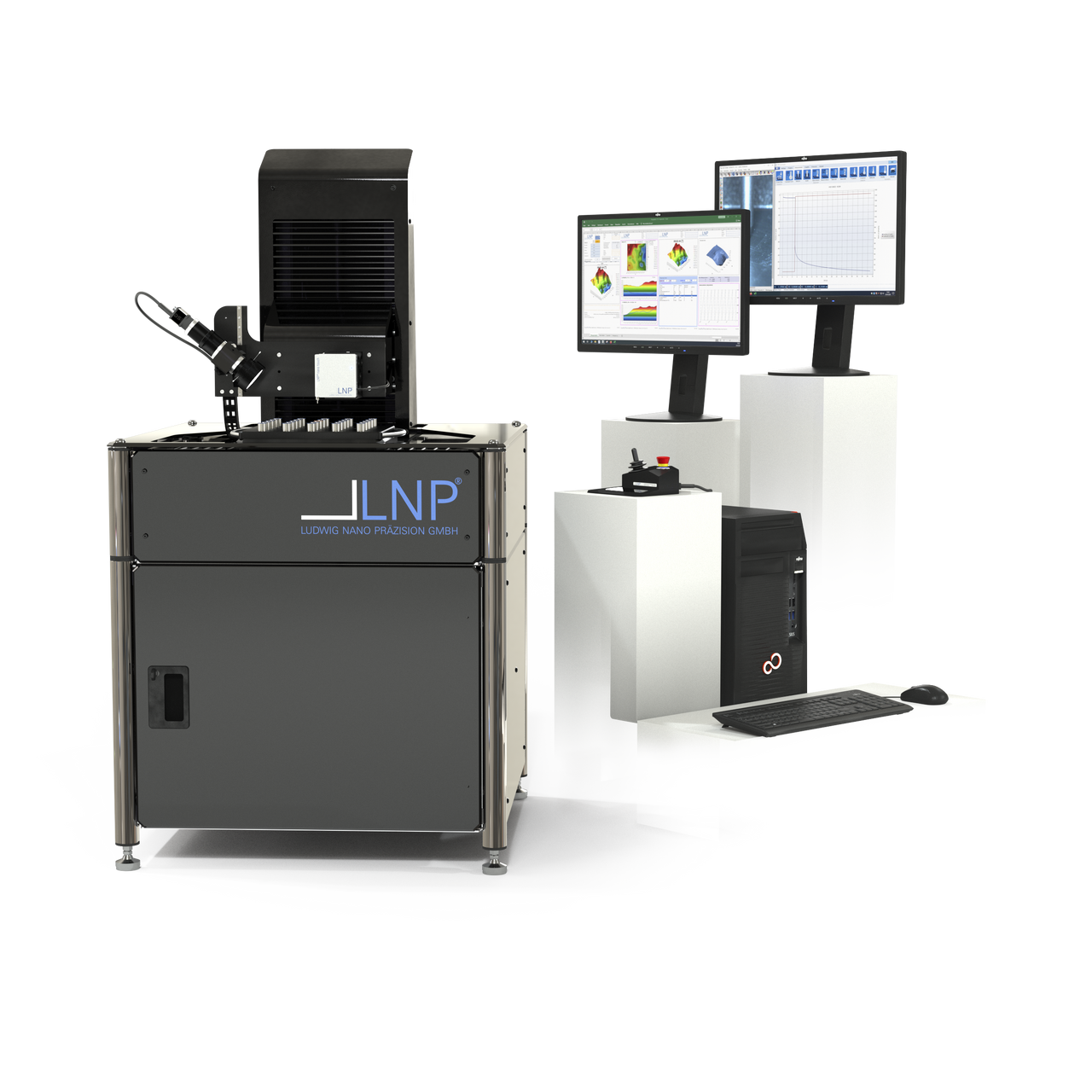

LNP 323
Fully Automated Measurement Workstation for Mechanical Material Characterization
LNP® 323 represents the highest level of automation within the LNP Work Solutions range. It uses the high-precision LNP® nano touch sensor together with motorized X, Y, and Z axes offering travel ranges of 300 × 300 × 250 mm. This enables automated sample positioning, measurements at predefined coordinates, and extensive measurement series.
The workstation is suitable for research and development, quality control, and applications requiring high repeatability, a large working range, and minimal operator influence. According to the manufacturer, it can be used for applications including IRHD-M, VLRH, Shore, flexural modulus, Young’s modulus, hardness topography, adhesion, microtribology, rheology, and spatially resolved DMA. Availability of a specific method depends on the system configuration, probe tip, accessories, and measurement procedure used.
Fully Automated Measurement Workstation

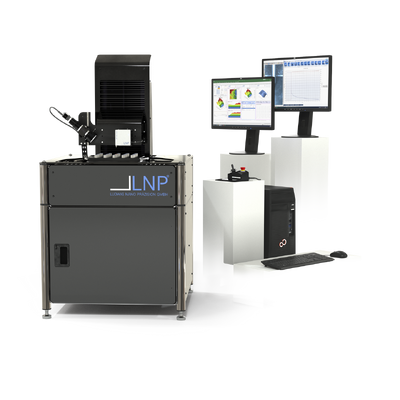

LNP® 323
LNP® 323 is a fully automated workstation based on LNP® nano touch technology. Motorized X/Y/Z axes with travel ranges of 300 × 300 × 250 mm enable automatic sample positioning, extensive multi-point measurements, and repeatable measurement sequences with minimal operator influence.
nano touchXYZ 300 × 300 × 250 mmFour-axis ControlAdvanced Software
Sensor Range4 mm
Resolution10 nm
X/Y/Z Travel300 × 300 × 250 mm
Measuring Force0.05 mN–1.4 N / 10 N
Full Automation of Positioning and Measurement Sequences
LNP 323 combines the high-precision nano touch force-displacement sensor with a large motorized working range. This enables automated series measurements, property mapping, and repeated tests at predefined coordinates.
5 MP Telecentric Camera
The USB 3.0 camera with telecentric lens and LED ring illumination supports precise inspection of the measurement point and reproducible sample positioning.
5 MPTelecentric LensLED ringlight
nano touch Advanced
The Advanced software is used for measurement control, data evaluation, and automated measurement procedures according to the selected system configuration.
Measurement SequencesData AnalysisAutomation
Measurement Capabilities
The manufacturer specifies a wide range of standardized and analytical methods for LNP 323. Availability of a specific method always depends on the probe tip, accessories, software configuration, and measurement procedure used.
01
Standardized Hardness Tests
IRHD-M, VLRH, and various Shore methods depending on the corresponding measurement-system configuration.
02
Mechanical Properties
Young's modulus, flexural modulus, and other force-displacement methods for local material characterization.
03
Surface and Tribology
Hardness topography, adhesion, and microtribology with the corresponding measurement accessories.
04
Dynamic Characterization
Spatially resolved DMA, rheology, and other advanced analytical procedures supported by the nano touch platform.
Technical Specifications of the Sensor and Workstation
At the core of the system is LNP nano touch with optical incremental displacement measurement and electromechanical generation of the measuring force.
| Order Number | 035556 |
|---|---|
| Displacement Measurement System | Optical Incremental |
| Sensor Displacement Range | 4 mm |
| Displacement Resolution | 10 nm standard |
| Displacement Linearity | < 200 nm within the measuring range |
| Force Linearity | 0–1400 mN: < 0.3 % of the measuring range |
| Force Generation | Electromechanical |
| Measuring Force | 0.05 mN to 1.4 N; optional version up to 10 N |
| Measuring Force Resolution | 0.6 mN (600 µN) |
| Motorized X/Y/Z Axes | Travel 300 × 300 × 250 mm |
| Control | Four-axis |
| Camera | 5 MP USB 3.0, telecentric lens, LED ring illumination |
| Software | LNP® nano touch Advanced Software |
Standard Workstation Configuration
According to the current LNP product page, the configuration includes the complete measurement, positioning, optical, and control components required for automated measurement.
- LNP® nano touch
- motorized X/Y/Z axes with travel ranges of 300 × 300 × 250 mm
- Four-axis Control
- camera holder with manual four-axis adjustment
- 5 MP USB 3.0 camera with telecentric lens and LED ring illumination
- LNP® nano touch Advanced Software
- Windows workstation with Microsoft Office Small Business
- Fujitsu workstation and two monitors according to the manufacturer's current specification
iNote: The manufacturer may change the specific computer model and its components over time. The current scope of supply stated in the quotation is decisive.
Expansion Options and Accessories
The workstation can be expanded with probe tips, sample-fixturing components, temperature conditioning, tribology equipment, and measurement-system verification accessories.
LNP Heating Table PE
Heating table for material characterization at a defined elevated temperature.
LNP Tribodetect
Optional sensor for extending the system with microtribological measurement applications.
Holders, Vises, and Reference Components
3D perforated plate, planar sample holder, parallel vises, clamping elements, positioning elements, and a hardness reference block depending on the application.
iRecommendation: LNP® 323 is particularly suitable where automatic measurement of a larger number of points, repeatable measurement sequences, or work with larger parts is required. For simpler manual or semi-automatic measurements, LNP® 1, LNP® 2, or LNP® 3DC may be more economical alternatives.
