PolyClean 6 "- cleaning fluid bath

PolyClean 6"

Unlike other Fluidized baths, the Dynisco PolyClean 6L Fluidized bath has a smaller footprint, include advanced features and are safer than salt baths with thermal response that is 2 to 3 times faster than ovens. Unique bath cover and lid design that minimizes media loss. Media is either blocked by the lid or collected on the cover flange which then drops back into the system. The included lid with handle is lowered into the Fluidized Bath for cleaning parts, heattreating or calibrating temperature sensors as shown. An eyelet is added to the lid for suspending an optional basket for parts cleaning or deviceheat treatment.The optional probe support will suspend temperature sensors and thermometers into the Fluidized Bath for calibration. The probe holder immersion depth can be adjusted for added flexibility. Drill holes into the lid for the diameters you require.

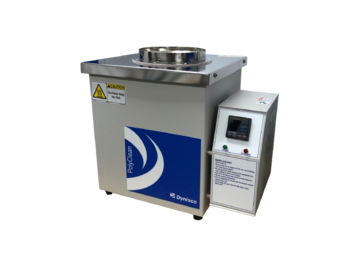

Dynisco PolyClean 6L Fluidized Temperature Bath

Features

■ Fully automate fluidizing air control

■ Compact working volume

■ Cover and lid design that minimize media loss

■ Independent over-temperature limit protection

■ Fast heat up

■ Small footprint for placement on standard lab benches

■ RS485 interface for PC connection & downloadble Windows software

■ Excellent stability, uniformity & accuracy

PolyClean Model 6L:

The PolyClean 6" Fluidized Temperature Bath can be used to clean small tooling from Laboratory Extruders ar lnjection molding machines, Capillary Rheometer and Melt Flow lndexer dies ar other small components used in polymer testing ar small part production. 5.3" X 6" Deep (134mm X 152mm)





PolyClean Model 12L:

The PolyClean 12" The PolyClean 12" Fluidized Temperature Bath can be used to clean tooling from all extrusion, injection molding, blow molding, and laboratory applications. lts 12" deep ba sket is desig ned to handle a large variety of components from laboratory as well as production environments. The 12L can also be configured with its sensor support tray allowing (2) pressure sensors to be cleaned at a single time. 1 O" X 12" deep (8.4" diameter when using parts basket) and (213mm X 305mm)



PolyClean Model 26L:

The PolyClean 26" The PolyClean 26" Fluidized Temperature Bath can be used to clean tooling from all extrusion, injection molding, blow molding, and laboratory applications. lts 26" deep basket is designed to handle a large variety of components from laboratory as well as production environments. 1 O" X 12" deep (8.4" diameter when using parts basket) and (213mm X 305mm)

Performance Characteristics
PolyClean Model 6L:



Temperature Range 50 to 605°C
Working Volume 5.3” dia x 6” depth (134mm x 152mm)
Typical Stability thru Operating Range ±0.3°C
Calibrated Accuracy ±2.0°C
Heat up time to 600°C from ambient 70 minutes
Cool down time: 600°C to 200°C 130 minutes
Heater Power: 1 phase, 50/60 hz 1920 watts
Air Pressure & Max Flow Required 30 PSI, 1.8 CFM (2.1 bar, 50 lpm)
Overall Footprint H x W x D 15”x17”x13” (381mm x 432mm x 330mm)
Total Unit Weight with Aluminum Oxide 45 lbs (20kg) (unit only 32 lbs, 14.5kgs)



Material Burn Off Temp Guide





• Nylon 450°C/842° F
• Paint 475-575°C/887-1067° F
• Styrene 450°C/842° F
• Polyethylene 425-450°C/797-842° F
• Polypropylene 425-500°C/797-932° F
• Flouropolymers 525°C/975° F
• PTFE 500°C/932° F
• PVC 460-540°C/860-1004° F
• High density polythene 450°C/842° F
• PEEK 500-525°C/932-977° F
• Silicone Rubber 535°C/995° F
• Polyesters 450°C/842°
• Ethylene methacytic 450-480°C/842-8960F
• Polyurethane 440-450°C/824-842° F
• Polystyrene 450° C/842° F
• Rubber debonding 350°C/662° F
• Polycarbonate 400-425°C/752-797 ° F
• Organic matter oil/grease 300-5000C/572-932 ° F
• Crosslink PE 400°C/750° F

Certification Approval



EU Declaration of Conformity

ISO 9001:2015

EAC - The Eurasian Conformity mark

RoHS Compliance Fact Sheet
