DYMT
The DYMT Series features temperature sensors specifically designed to meet the requirements of the polymer industry. The mounting thread is compatible with the installation holes of the pressure sensors, thanks to which they are ready for use in most extrusion and injection molding processes. DYMT series temperature sensors have an optional tip design. Thanks to the unique design of the elliptical tip, we are able to reduce the friction of the polymer melt against the sensor and thus reduce or completely prevent the generation of dissipation heat that may arise in this process.
The DYMT thermocouple series is also available with a double thermocouple or RTD.

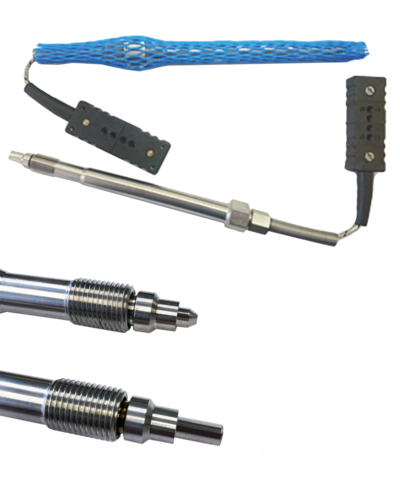

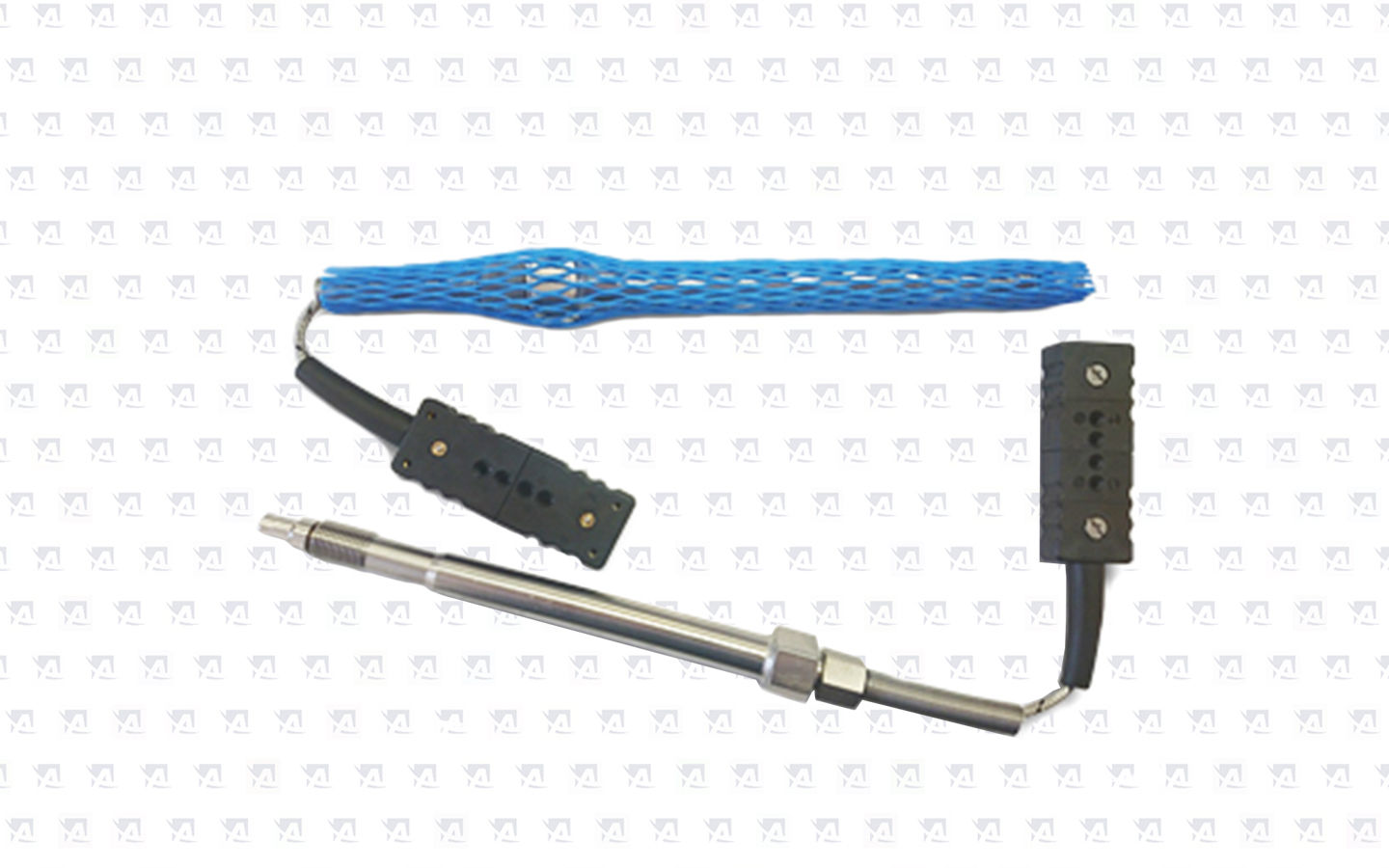

DYMT temperature sensors

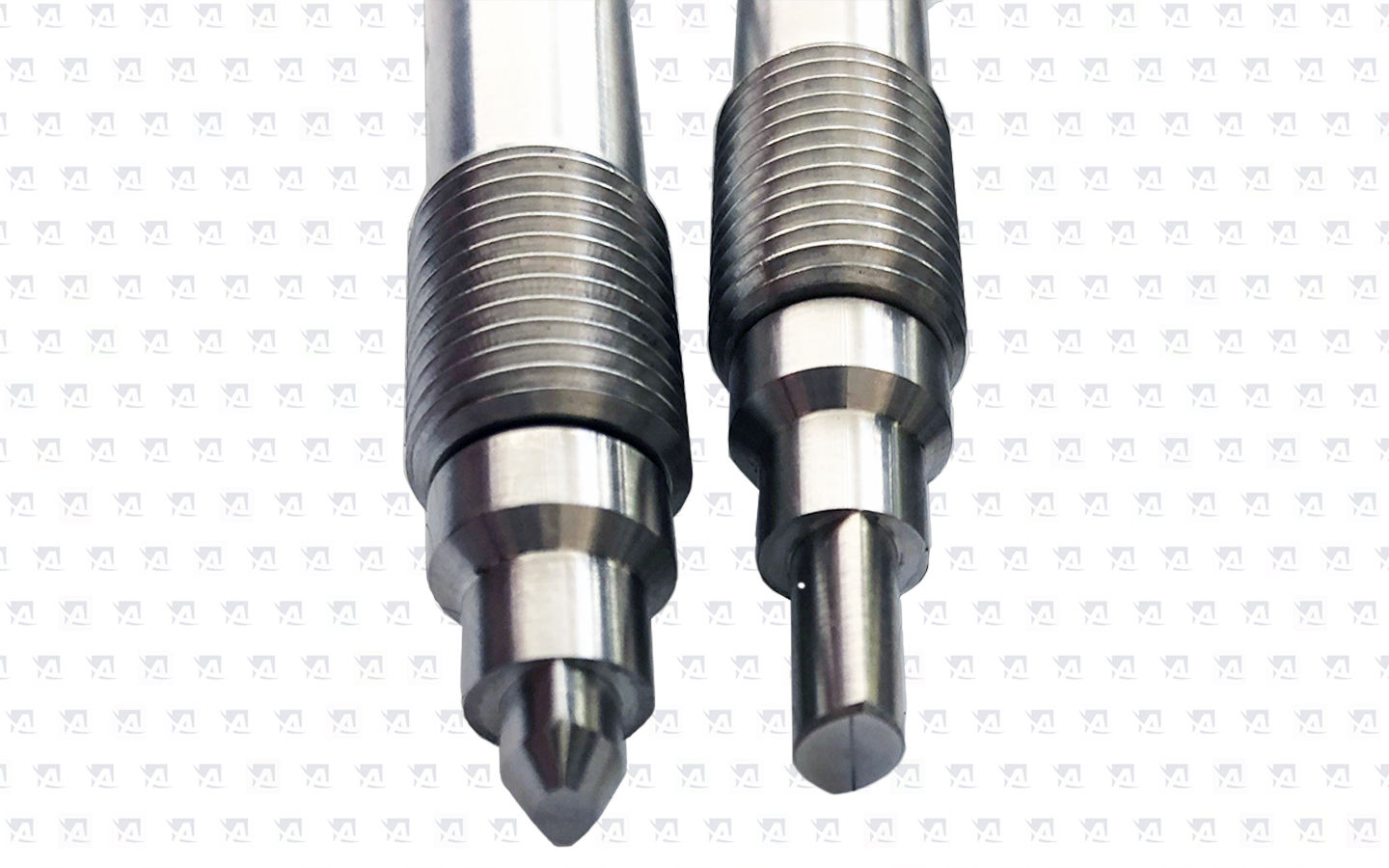

Detail of DYMT elliptical tips

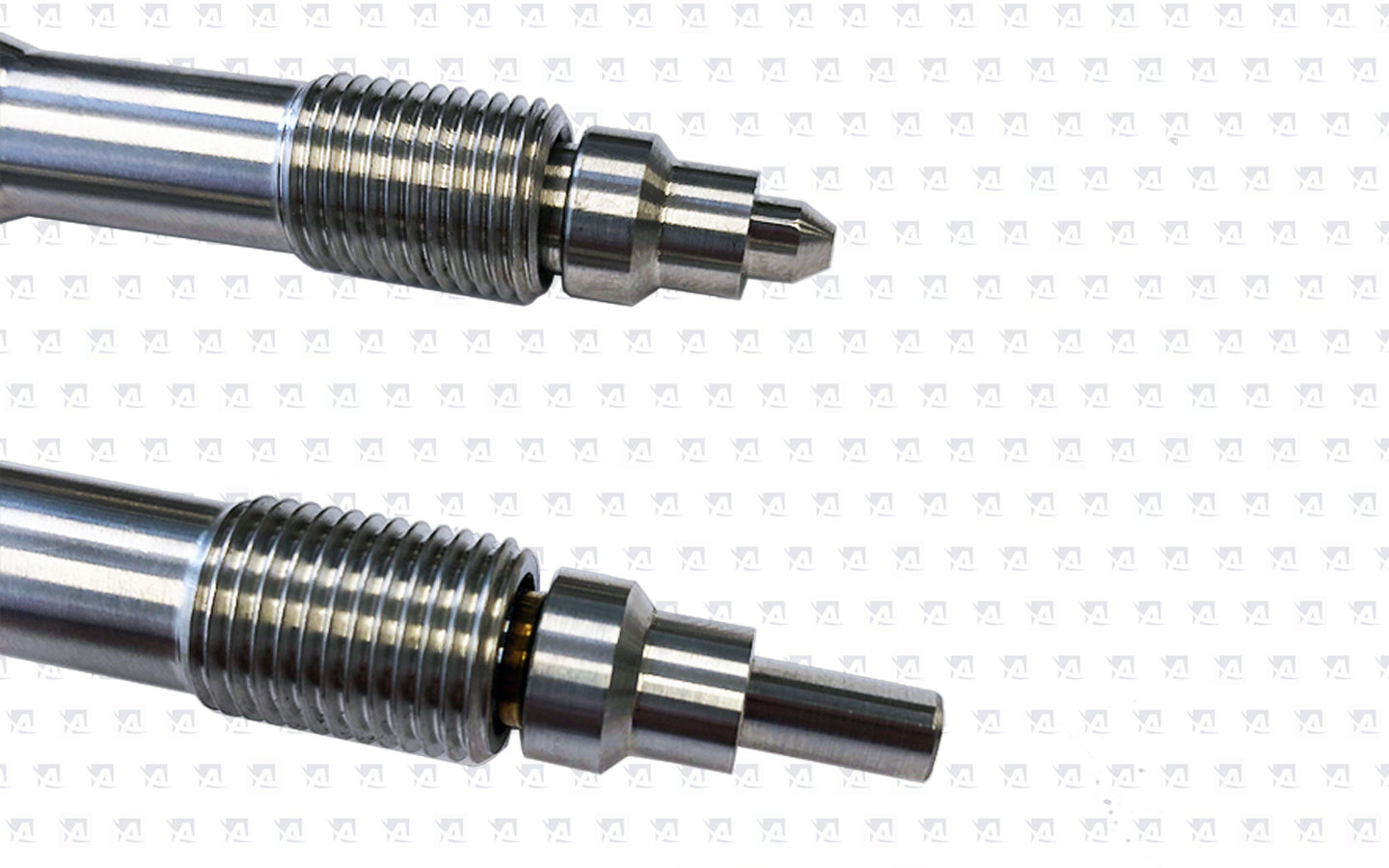

Detail of DYMT elliptical tips

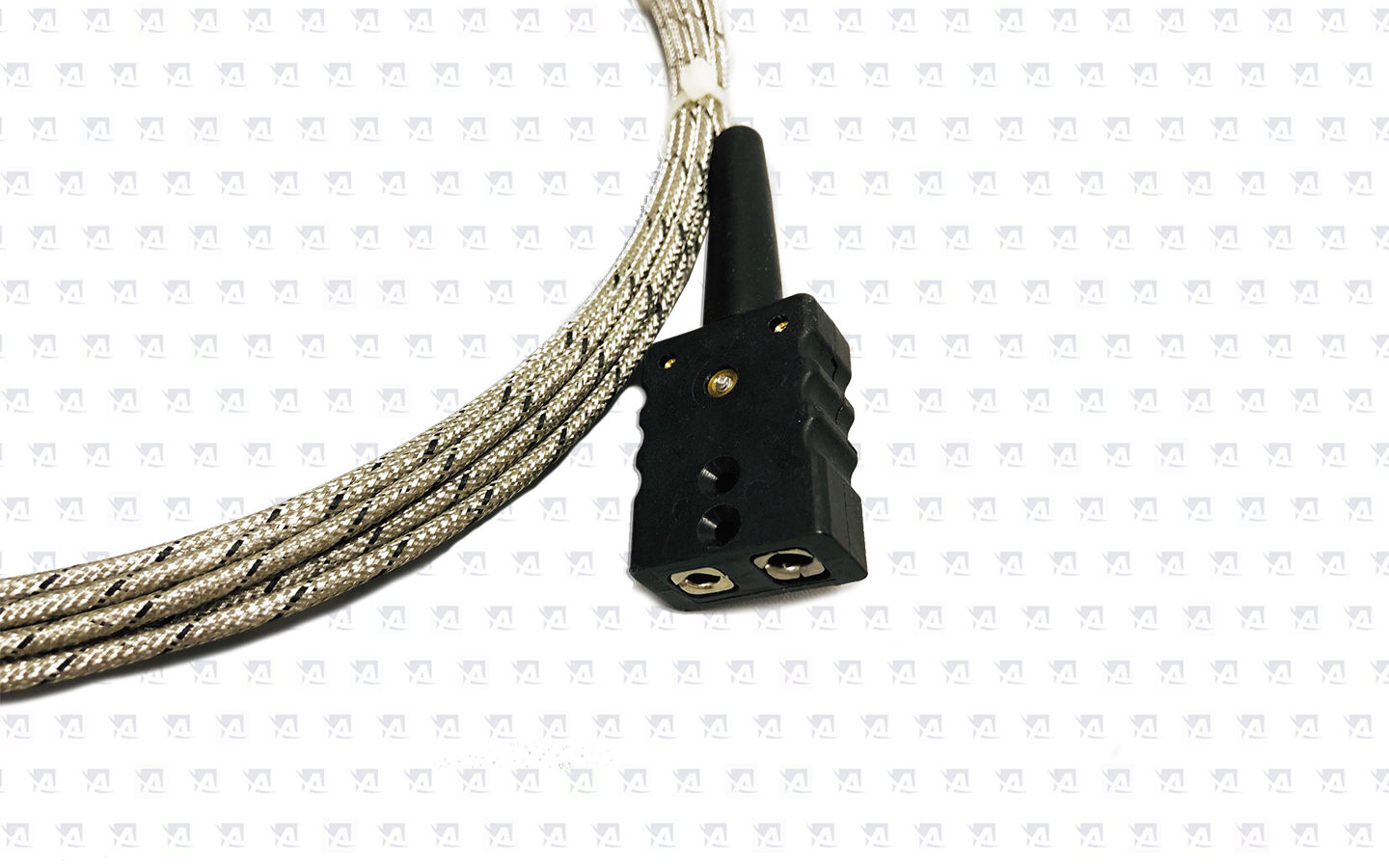

Thermocouple cable with standard 2-pin connector
Thermocouple cable
Thermocouple cable
PERFORMANCE CHARACTERISTICS
|
Thermocouple output:
|
J = thermocouple J type DIN IEC 584-1
L = L-type thermocouple according to DIN IEC 584-1 K = thermocouple type K according to DIN IEC 584-1 RTD = RTD |
|
| Tip type: | Elliptical shape resembling a knife edge (eliminates friction in the polymer melt stream) | |
|
Sensor connection:
|
1/2 = 1/2 "20 UNF 2A / M14 = M14 x 1,5 / M18 = M18 x 1,5
|
|
|
Temperature range:
|
0 to 480 ° C
|
|
| Maximum tightening torque: | 40 Nm | |
| Compatibility: | Compatible with Dynisco pressure sensor holes | |
| Fixed rod length: | 15 = Rod length 152 mm (standard) Others on request | |
| Tip length: | Several lengths from 5 - 25 mm, available in 5 mm steps |
ROZMĚRY SNÍMAČE:
Certification Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
