Melt pressure sensors series SPX - 2

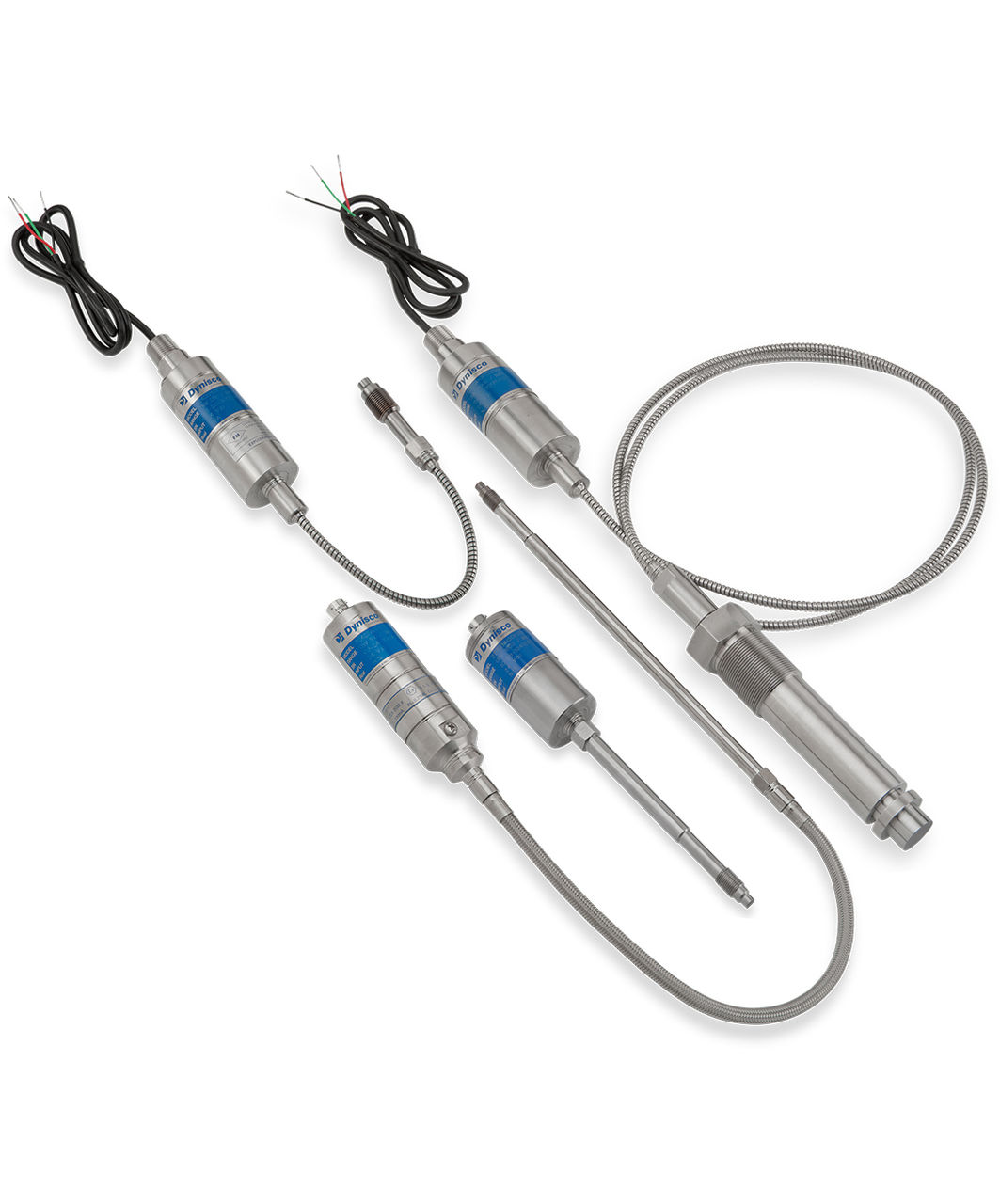

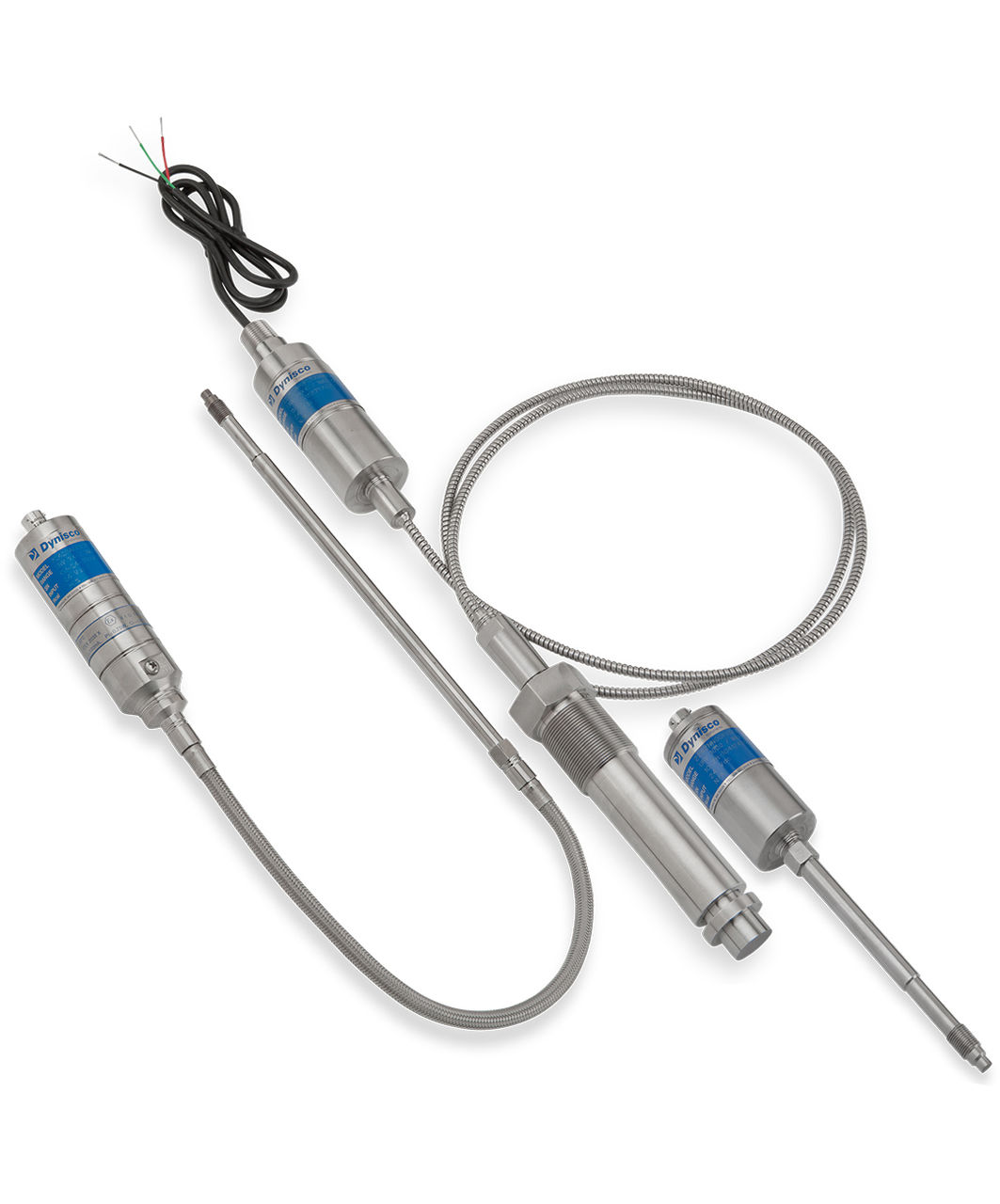

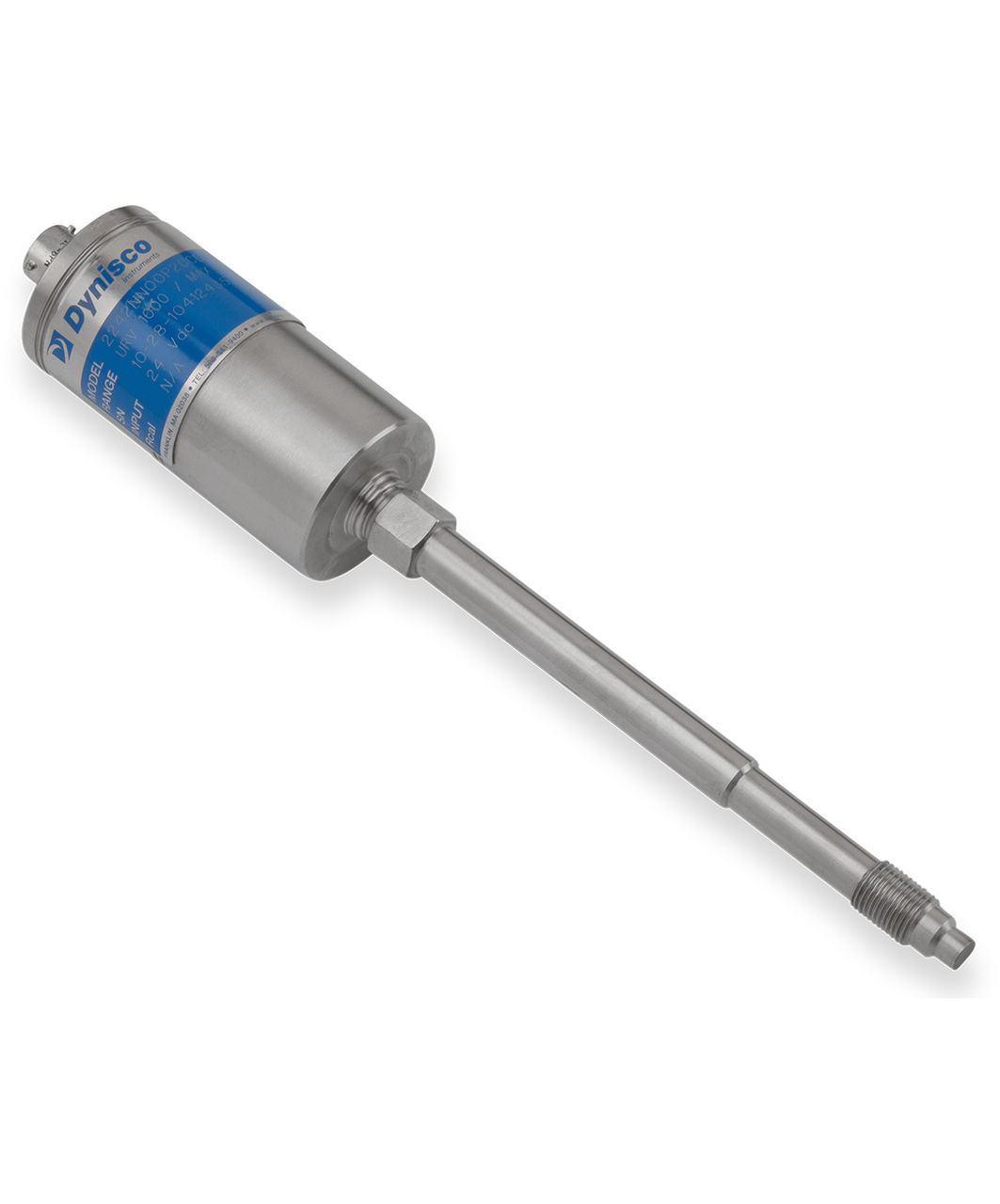

SPX-2 Series

The SPX-2 series is an intelligent 4-20mA pressure sensor designed for use in hazardous areas and is available with various process and electrical connections. The SPX - 2 series is a robust welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can be directly connected to high-level distributed control systems, PLCs, computers and similar control systems. Optional thermocouples or RTD configurations are also available for simultaneous temperature and pressure monitoring at a single connection point.

PERFORMANCE CHARACTERISTICS



Pressure range:
 0 up to 70 bar
Accuracy:
2241 ± 1,0%
2242 ± 0,25% for pressure ranges >= 1,500 psi;
          ± 0,50% for pressure ranges <1,500 psi
2243 ± 0,25% for pressure ranges >= 1,500 psi;
          ± 0,50% for pressure ranges <1,500 psi
2244 ± 0,25% for pressure ranges >=  500 psi;
          ± 1,0%   for pressure ranges <500 psi
2290/2291/2292 ± 0,50%
Overload capacity:
2X FSO or 35,000 psi, whichever is less (2290.2291 and 2292 1.5 x FSO per 10,000 psi)
  Repeatability: 0.1 % f.s.v
  Material in Contact with Media: 15-5 PH SST DyMax coating
  Sensor connection: 1/2"-20UNF , M14x1.5 , M18x1.5 , M22x1.5
  Mounting torque:

2241: 350 inch-lbf max
2242: 500 inch-lbf max
2243: 50 inch-lbf max
2244: 350 inch-lbf max
2290: 350 inch-lbf max
2291: 350 inch-lbf max
2292: 80 ft-lbf max
  Burst Pressure:

6x pressure range max. 3000 bar
  Sensor construction: Various constructional embodiments

TEMPERATURE CHARACTERISTICS




Max. membrane temperature:
400°C max
Models 2241, 2244, 2290, 2291, 2292 max 315°C

Zero shift (due to temperature):
2241/2244//2290/2291/2292:
1 psi/100°F (from 75-450°F)
2 psi/100°F (from 450-600°F)
2242/2243:
15 psi/100°F (27 psi/100°C)

-------------------------------------------
------------------------------------------------------------------
Max. sensor body temperature: 120°C
Zero shift (due to temperature): All models: 0.02% F.S./°C max
Shift sensitivity (due to temperature): All models: 0.02% F.S./°C max

ELECTRICAL CHARACTERISTICS




Supply Voltage:
16 - 36 Vdc (Standard); 16 - 30 Vdc (ATEX IS)
Output signal:
4 - 20 mA with optional HART ™
Nastavení nuly:
- 40% to + 10%;
- 80% to 20% for FSP <500 psi
  Connector: All models: 0.02% F.S./°C max
  Leakage Resistance: 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc
  Internal Shunt Calibration: 80% f.s.v ± 0.50% f.s.v

SENSOR DIMENSIONS:
