PG4 Series

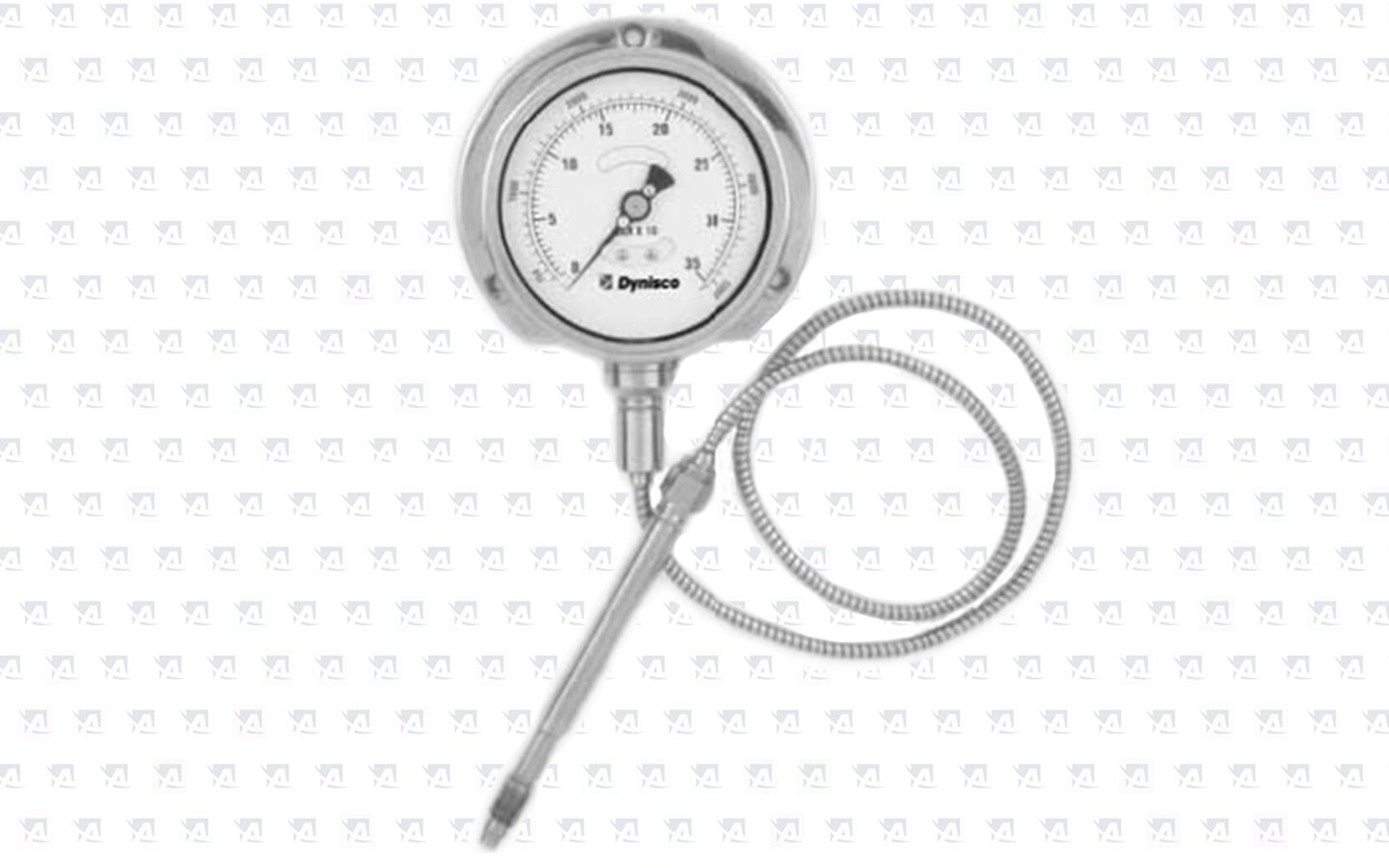

Dynisco's series of mechanical pressure indicators is the ideal choice for applications that require simple and maintenance-free pressure indication. The polymer pressure is sensed by a diaphragm that is installed in the process orifice of the machine. In the fixed bar configuration, the display can be rotated 300 ° for a seamless overview. For applications with high temperatures or limited installation space, pressure gauges with a flexible capillary are available to keep the meter away from the process and radiant heat. Configurations that simultaneously sense temperature using thermocouples or RTD are also available.
PG4 Series
Performance characteristics:
|
Combined error:
|
± 2% of sensor range
|
|
|
Zero setting:
|
7.5% of sensor range
|
|
|
Maximum pressure:
|
1.5x sensor range
|
|
| Rotation angle of the display: | 270° | |
| Thermocouple: | Typ J (Standard) |
Temperature and mechanical properties:
|
Maximum membrane temperature:
|
400°C
|
|
|
Maximum head temperature:
|
135°C
|
|
|
Case material:
|
Stainless steel with safety glass
|
|
| Mounting torque: | 500 inches / pound. maximum | |
| Weight: | 2-3 pounds. depending on the configuration | |
| Standard soaked parts: | TiN coated 15-5 PH SST |
Dimensions:
