Temperature Controller 1498 Series

Temperature Controller 1498 Series

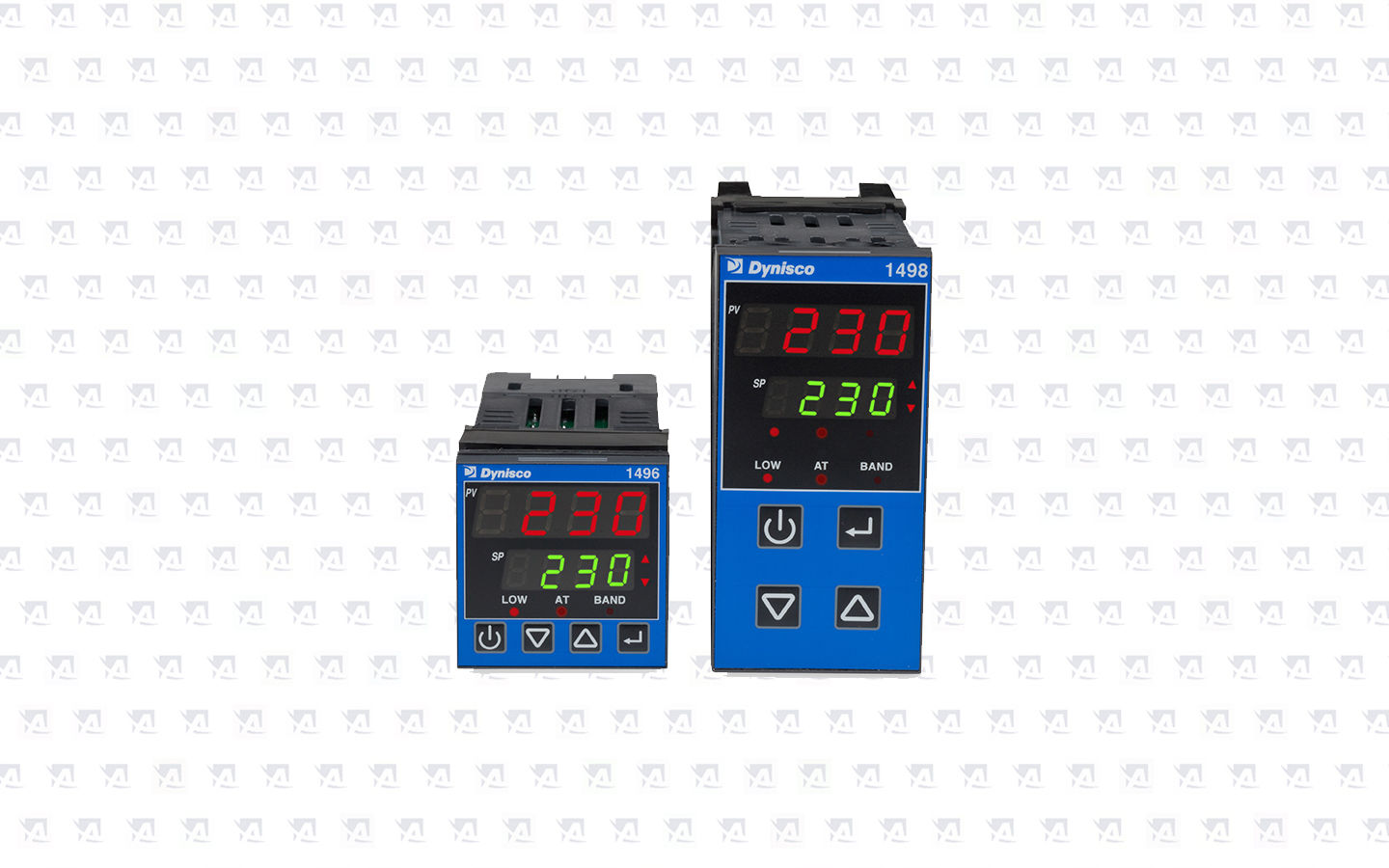

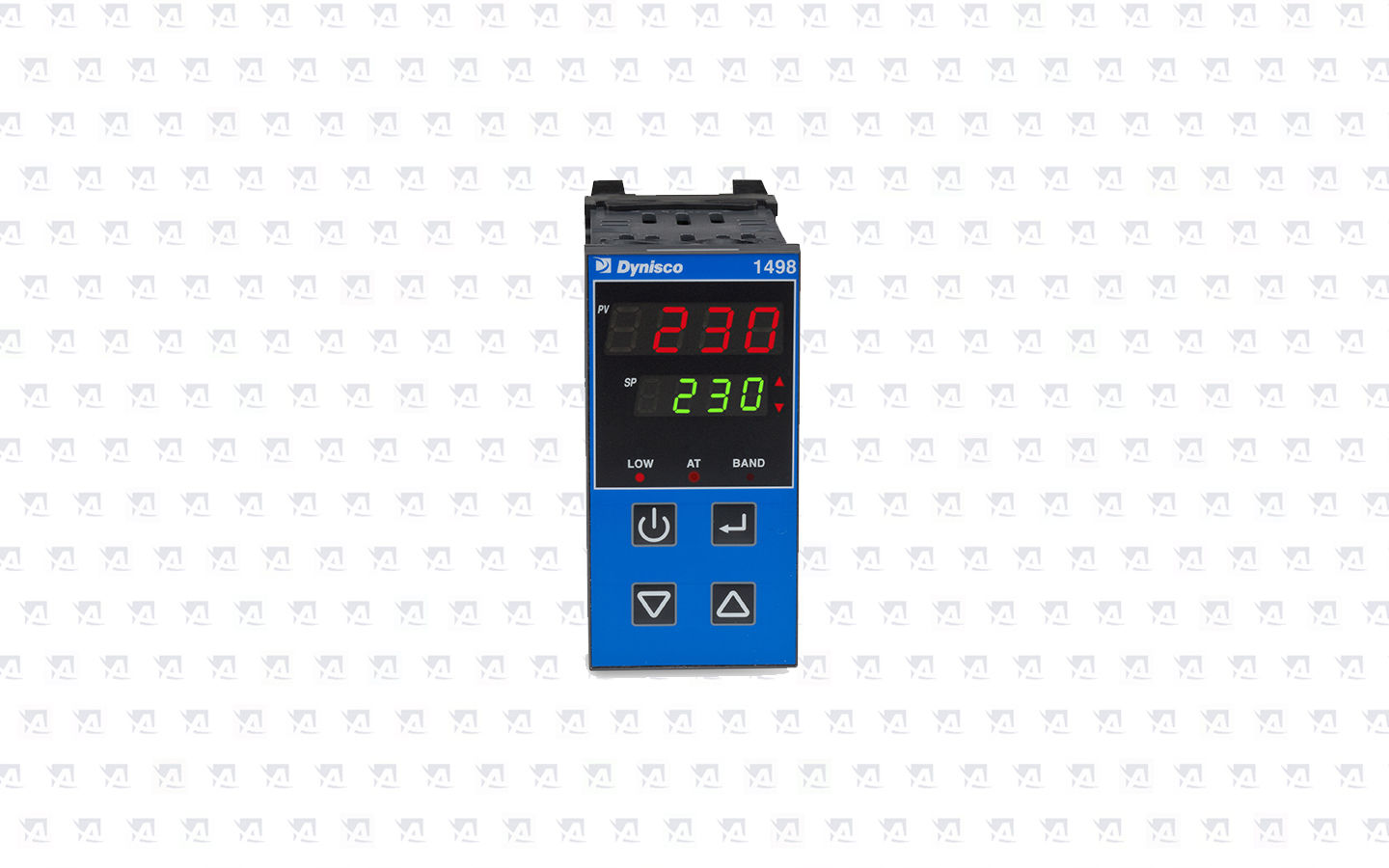

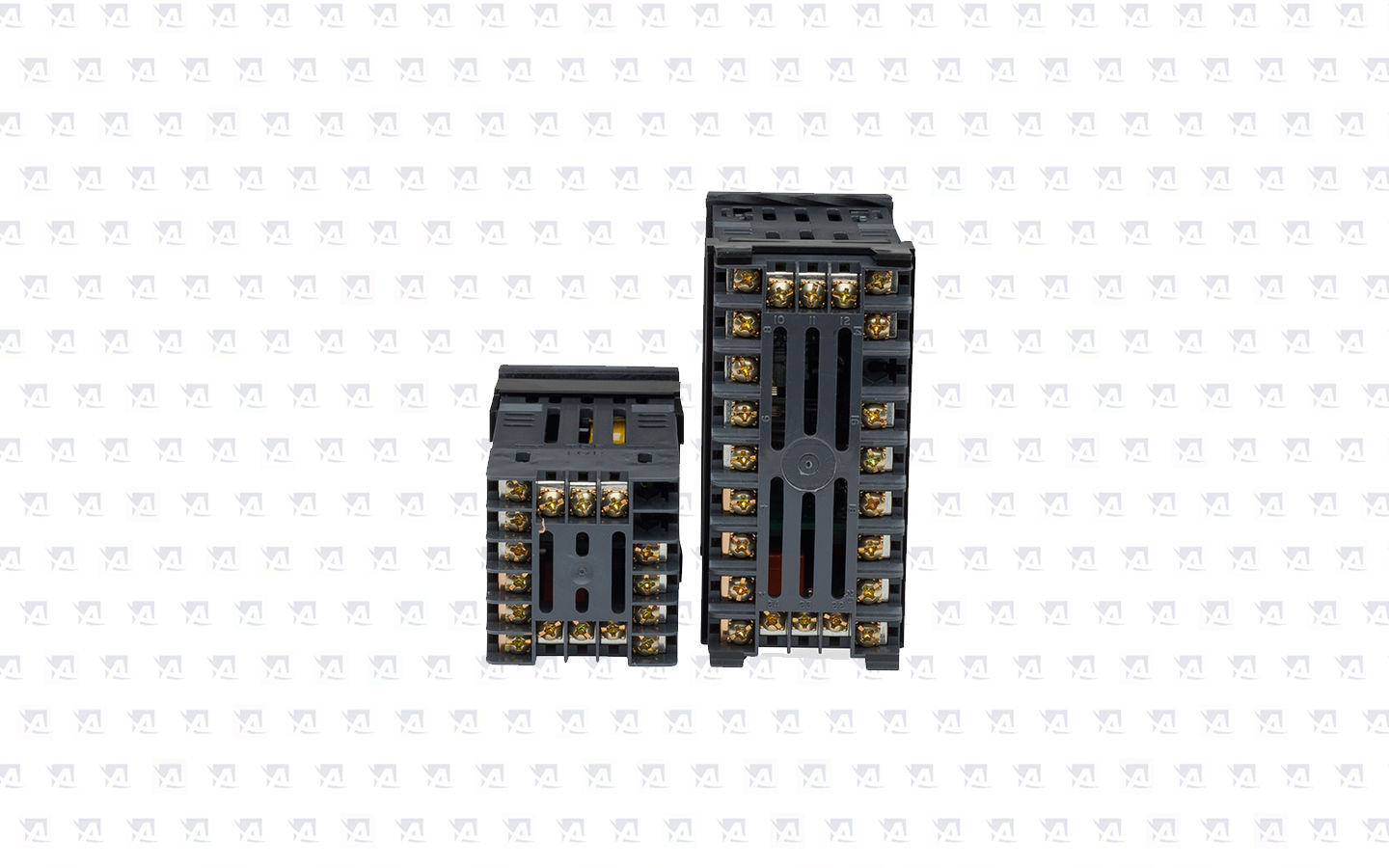

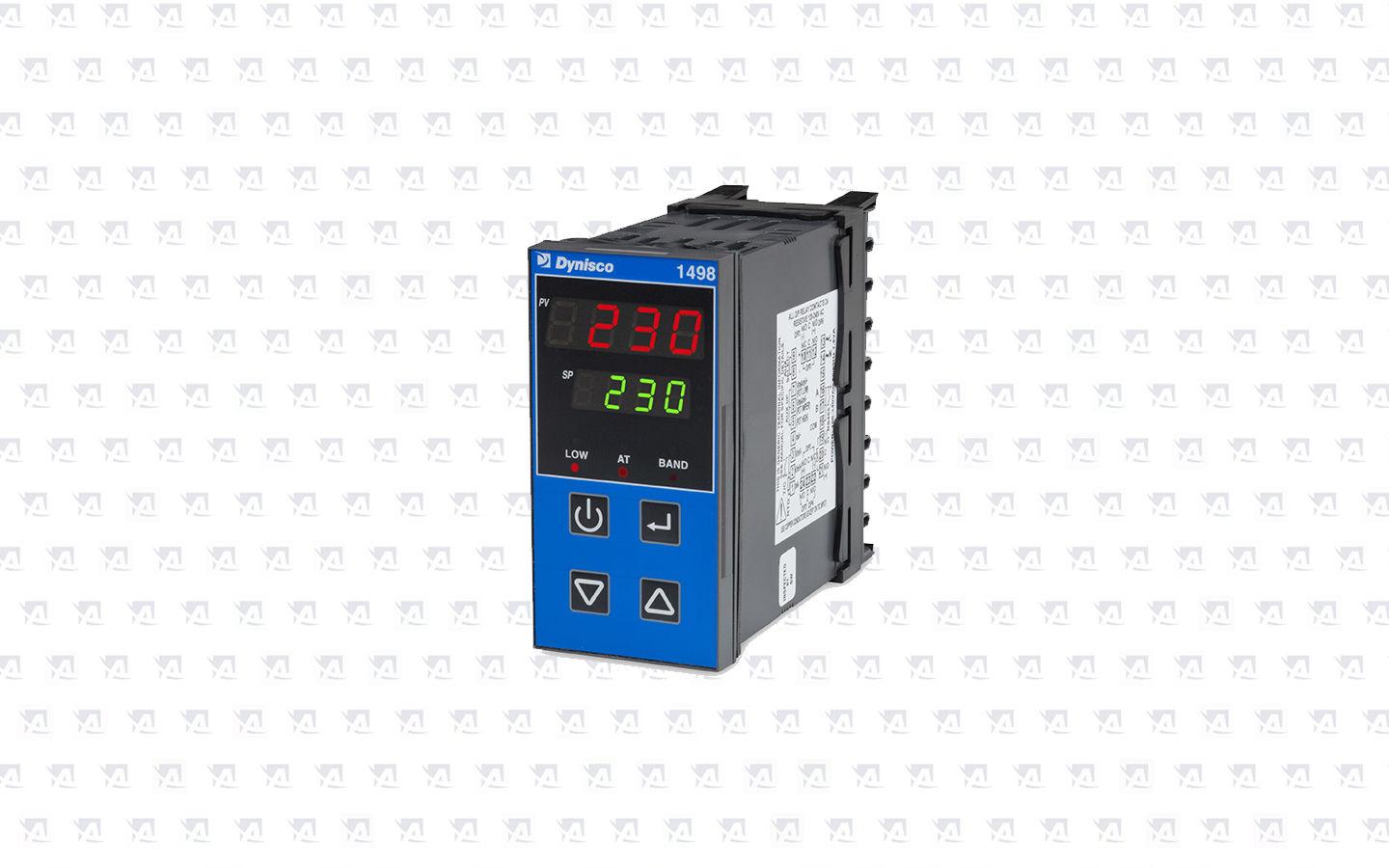

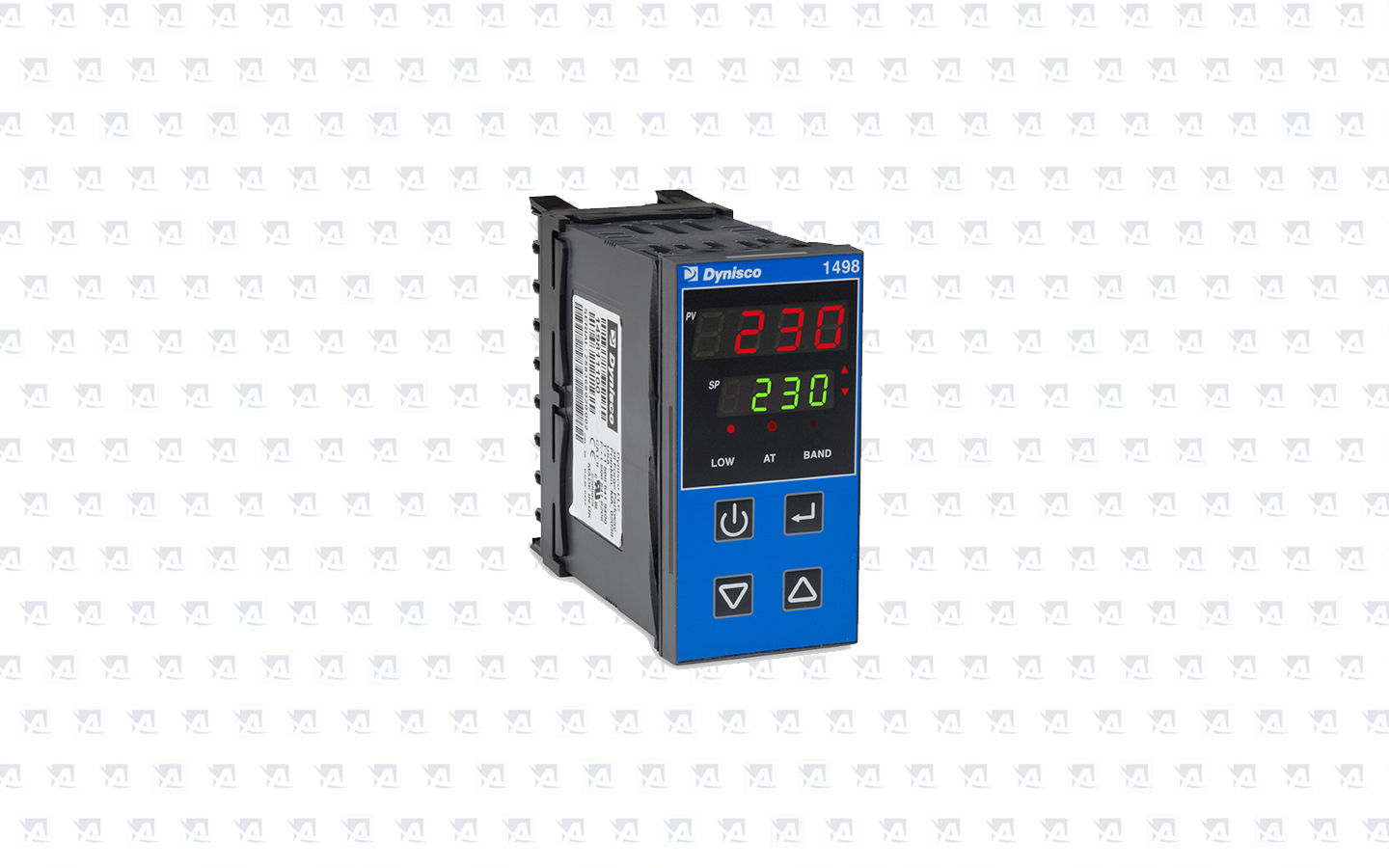

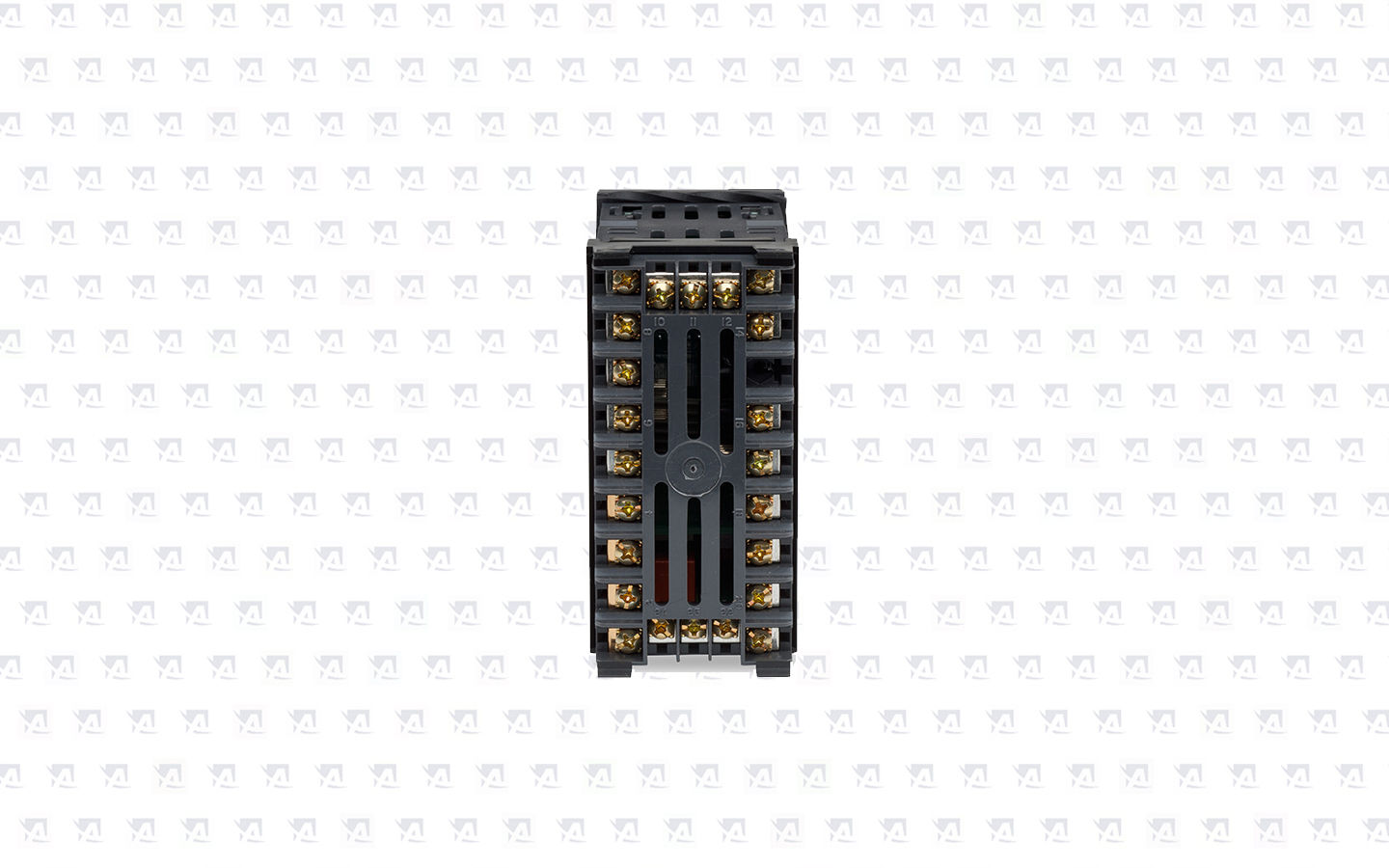

The Dynisco 1496 and 1498 series temperature controllers are a solution for precise temperature control of extruders. With two DIN dimensions and more output configurations, the controller is suitable for temperature control for extruders. The 1496 (1/16 DIN format) and 1498 (1/8 DIN format) controllers can also be used in indicator-only mode, which allows one device to be used for all applications. Ensuring maximum flexibility for industrial process control. The 1496 and 1498 series have been designed for quick configuration to match application-specific settings and default parameters. Triple alarm settings are standard and can be used for process processes with high low value, deviation from SP,, logical OR / AND, loop alarm to ensure process control. All process alarms have adjustable hysteresis.

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Temperature Controller 1498 Series

Performance characteristics:



Types of input thermocouples:
J, K, C, R, S, T, B, L, N & PtRh20% vs. PtRh40%
RTD 3-wire input:
PT100, 50Ω for maximum line (balanced)
Accuracy:
± 0.1% of input range ± 1 LSD (T / C CJC better than 1 ° C)
  Device modes: PID controller or indicator
  Types of proceedings: Full PID function with presetting, automatic tuning, manual tuning or on / off control
Control operations: Heating or cooling
  SSR driver control Outputs: Possibility of drive> 10V DC at 5000Ω minimum
  Output configuration: Up to 3 possible, for control and alarm
  Alarm types, 3 available: Process is high, low process, SP deviation, band, logical OR / AND
  Control and alarm relays: Contacts SPDT 2 Amp resistor at 240VAC, 500,000 operations
  Communication: 2 wires RS485, 1200 to 19200 Baud, Modbus
  DC Linear: 1- 20mA, 4-20mA, 0-50mV, 10-50mV, 0-5V
2- 5V, 0-10V, 2-10V
  Triac outputs: 0.01-1 Amp AC, 20 to 280Vrms, 47 to 63Hz
  Sampling: 4 per second, 14 bit resolution (approx.)
  Impedance: 10MΩ for thermocouple range and mV, 47KΩ for V ranges and 5 Ω for mA ranges,
  Sensor interruption detection: <2 seconds (except zero-based DC ranges); O / P shutdown control;
activation of high alarms for T / C and mV ranges; activate low alarms for RTD, mA or V range

Mechanical characteristics and packaging:



Power source:
100 to 240V 50 / 60Hz 7.5VA; 20 to 48VAC 7.5VA; 22 to 65V DC 5W
Automatic or manual control:
Choice of panel with plug-in transmission
Control:
ON / OFF control can be selected from the keyboard
  User interface: 4 buttons
  LED display: 4 digital 10 mm red and bottom 8 mm green plus 5 LED indicators
  Short circuit calibration: With or without resistance (40 to 100% of range)
  Scaling: -1999 to 9999 with adjustable decimal point
Front panel protection: IEC IP66 (For IP20 panel protection)
Temperature, operating: 32 až 130°F (0 to 55°C)
Temperature, storage: -4 až 17°F (-20 to 80°C)
Relative humidity: 20% to 95% RH without condensation

Approval and self-certification:




CE:
Directive 2004/108 / EC
ISO:
Production environment ISO 9001: 2008
UL, ULc:
Underwriters Laboratory (USA and Canada)

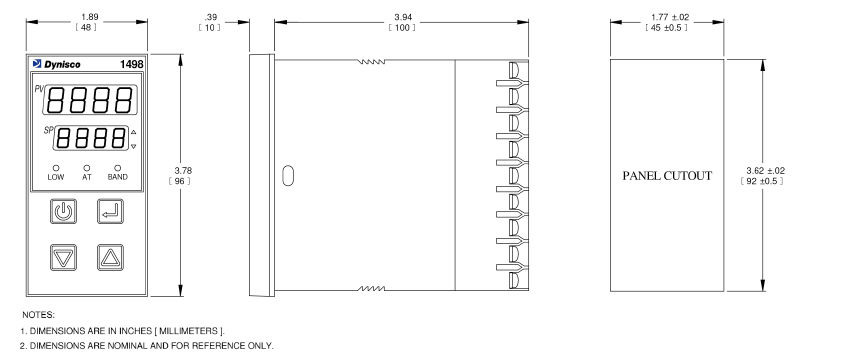

REGULATOR DIMENSIONS:

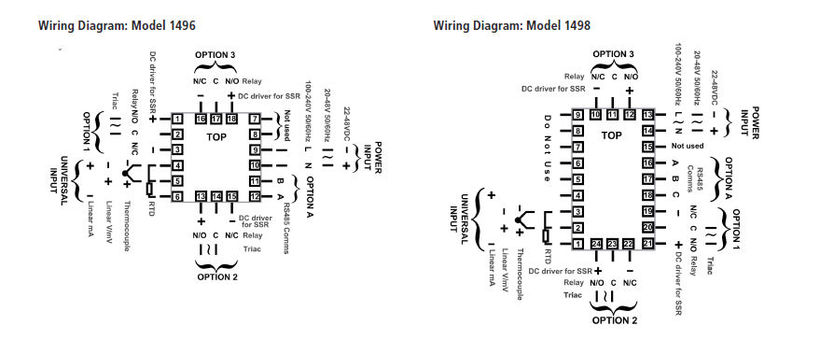

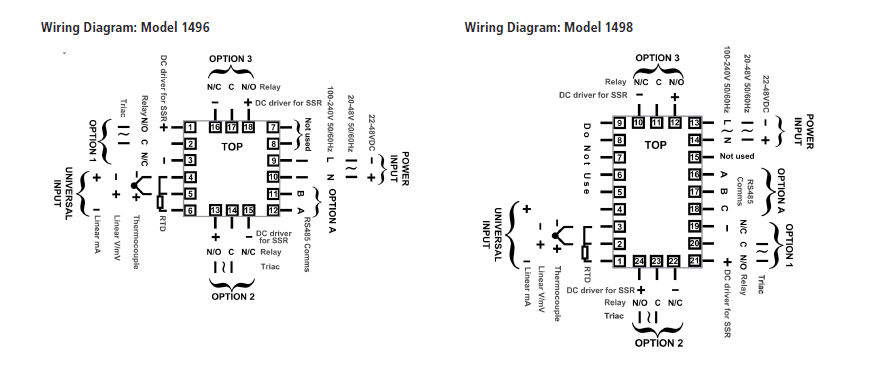

DIAGRAM:



PT46x5 Series

PT4605 - Sensor with rigid stem
PT4625 - Sensor with rigid stem and flexible stem
TPT4635 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



The PT46X5 Series transmitter is a +/- 0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X5 transmitters provide the industry standard 0 - 5 Vdc amplified signal designed to work with DCS and PLCs, 1 - 6 Vdc outputs are also available.

DYKE

The Dynisco Melt Thermocouple Series DYKE is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of a thermal insultation of the housing. The sensor tip is being ceramically insulated from the housing. These temperature sensors are especially suitable for the use in high abrasive medial.

DYMT

The DYMT Series features temperature sensors specifically designed to meet the requirements of the polymer industry. The mounting thread is compatibleThe Melt Thermocouple Series DYMT is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement.

GRMT

The Graduated Retractable Melt Thermocouple (GRMT) is used to measure temperatures inside the polymer melt stream. The depth of immersion of the junction into the hot melt stream can be varied from zero to mid-stream during maximum flow and pressure conditions, without removing the sensor from the adapter. Using the graduations on the stem of the temperature sensor allows the user to choose and monitor the specific depth at which the junction is in the melt stream.

TB422J

The TB422J temperature thermocouple is used to measure the temperature of the polymer melt in extrusion applications. The robust stainless steel probe is made of a fiberglass insulating element and is interchangeable with Dynisco pressure sensors. Thermocouples for measuring the melt temperature are designed and manufactured in accordance with applicable ISA standards with an accuracy traceable to the National Institute of Standard Technology (NIST). National Institute of Standard Technology.

TG422J

Thermocouples are the most common and widely used devices used to measure temperature. The Dynisco TG422J thermocouples offer a versatile and cost-effective variant, making it a popular choice for extrusion applications in the plastics industry. Available in type J and with a 304 stainless steel construction, the probe can be straight or made at an angle of 45 ° or 90 °. Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards with precision following the National Institute of Standard Technology (NIST).

TI422J

The TI422J is an alternative thermocouple that allows you to easily and quickly adjust the dive length to suit any application. The thermocouple can be specified with either a 20 cm spring bayonet cap that allows up to 17 cm of adjustable immersion, thanks to a bayonet lock on the flexible armor to allow the full immersion length "B". Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards to the National Institute of Standard Technology (NIST)

Certification & Approval

EU Declaration of Conformity for Flush Mount mV/V  Output

ISO 9001:2015

EAC - The Eurasian Conformity mark

GOST Approval

RoHS Compliance Fact Sheet

Safety Integrity Level - SIL2
