Temperature sensors

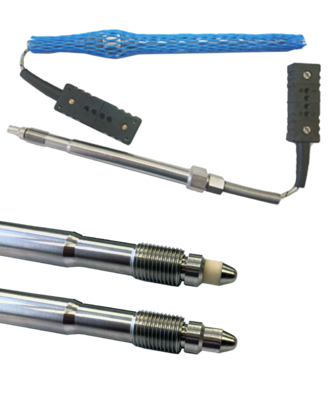

DYKE

The Dynisco Melt Thermocouple Series DYKE is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of a thermal insultation of the housing. The sensor tip is being ceramically insulated from the housing. These temperature sensors are especially suitable for the use in high abrasive medial.

Conical tip

Up to 1000 Bar

Various TC and RTD

Optional threaded connection

Optional ceramic insulation

CE EAC

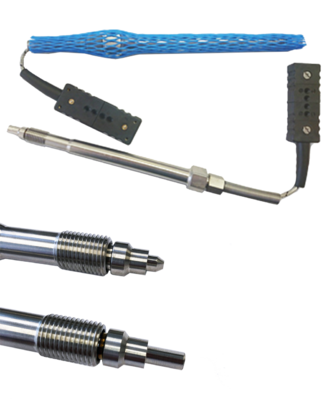

DYMT

The DYMT Series features temperature sensors specifically designed to meet the requirements of the polymer industry. The mounting thread is compatibleThe Melt Thermocouple Series DYMT is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement.

Rugged design

Designed for polymer industry

1000 bars max.

Various TC and RTD

Flush or blade style

Blade can be positioned in flow direction

Various threads available

Mounting hole compatible

CE EAC

GRMT

The Graduated Retractable Melt Thermocouple (GRMT) is used to measure temperatures inside the polymer melt stream. The depth of immersion of the junction into the hot melt stream can be varied from zero to mid-stream during maximum flow and pressure conditions, without removing the sensor from the adapter. Using the graduations on the stem of the temperature sensor allows the user to choose and monitor the specific depth at which the junction is in the melt stream.

Extendable tip

Movement range 0-65 mm

Applicability up to 480°C

Pressure range 1000 Bar

Thread 1 / 2-20 UNF

CE EAC CRU US

TB422J

The TB422J temperature thermocouple is used to measure the temperature of the polymer melt in extrusion applications. The robust stainless steel probe is made of a fiberglass insulating element and is interchangeable with Dynisco pressure sensors. Thermocouples for measuring the melt temperature are designed and manufactured in accordance with applicable ISA standards with an accuracy traceable to the National Institute of Standard Technology (NIST). National Institute of Standard Technology.

J-type thermocouple

Thread 1 / 2-20 UNF

Temperature range 0 - 480 ° C

Immersion length 2.5 cm

Standard output

Optional immersion lengths

CE EAC CRU US

TG422J

Thermocouples are the most common and widely used devices used to measure temperature. The Dynisco TG422J thermocouples offer a versatile and cost-effective variant, making it a popular choice for extrusion applications in the plastics industry. Available in type J and with a 304 stainless steel construction, the probe can be straight or made at an angle of 45 ° or 90 °. Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards with precision following the National Institute of Standard Technology (NIST).

J-type thermocouple

Range up to 480°C

Insulation element

Standard output

Wire protection

Application versatility

CE EAC

TI422J

The TI422J is an alternative thermocouple that allows you to easily and quickly adjust the dive length to suit any application. The thermocouple can be specified with either a 20 cm spring bayonet cap that allows up to 17 cm of adjustable immersion, thanks to a bayonet lock on the flexible armor to allow the full immersion length "B". Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards to the National Institute of Standard Technology (NIST)

J-type thermocouple

Adjustable spring

Range up to 480°C

Length 1.5 m and 3 m

Insulation element

Application versatility

Protected conductor

CE EAC
