On-Line Systems

  1. Laboratory systems
  2. On-Line Systems

FCR-R - Rheometer

Specifically designed for the synthetic fiber production industry, the Dynisco FCR-R series can be configured to measure a range of apparent shear viscosities, dual melt flow rate, simultaneous melt flow rate and extensional viscosities using the Cogswell Equations. The FCR-R system consists of two parts: a rheometer head and a rheometer control unit (RCU). The rheometer head is connected directly to the process which samples, conditions, and measures the melt viscosity of the molten resin through two separate dies. The RCU controls the rheometer test parameters (temperature, pressure and rate) and takes in data from the measurement head as well as provides outputs of computed results.

On-line apparent viscosities at a wide shear rate range

Unique double capillary design with return current

On-line measurement of polymer elongation properties

Data exchange via analog and digital inputs / outputs

Easy calibration

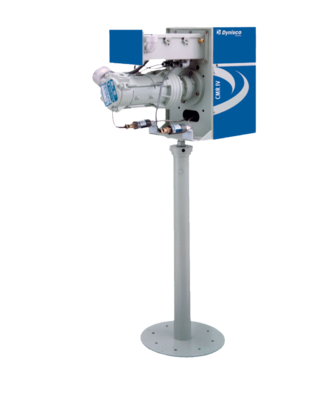

CMR IV - Rheometer

Specifically designed for the thermoplastics resin industry, the Dynisco CMR series can be configured to measure melt flow rate, high/low load melt flow rate, apparent viscosities, or to perform other customer defined tests.The CMR system consists of two parts: a rheometer head connected directly to the process which samples, conditions, and measures the melt flow of the resin, and an RCU (Rheometer Control Unit) that controls the CMR test parameters (temperature, pressure, rate), and provides outputs of computed results, and communications to an external distributed control system when required.

Online measurement

Data export via mA signal or RS232

Customer solutions

The system is also designed for places with a risk of explosion

Vertex® sensors used for high accuracy

Range of dosing pumps for specific applications

Easy calibration

Alarm system

Robust industrial design

Dynisco Cloud

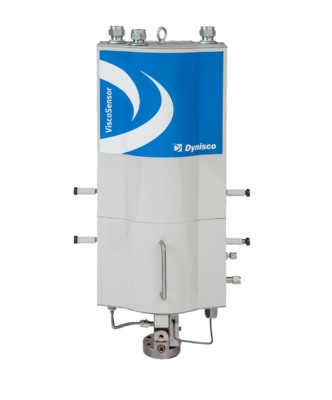

ViscoSensor

The ViscoSensor provides continuous measurements of the melt flow rate or apparent viscosity directly on the manufacturing process. The ViscoSensor system consists of two parts: a Viscosensor Rheologic Sensing Unit (RSU), connected directly to the process, and a Rheologic Control Unit that controls the ViscoSensor test parameters, provides outputs of computed results, and provides communications to an external distributed control system when required.

Connection via M18 hole or flange

An effective solution for monitoring online values

The measured polymer is returned to the processing

ASTM D1238, ISO 1133, or JIS K 7210

On-line shear viscosity and intrinsic viscosity (IV)

Easy calibration

2 Vertex pressure sensor for the highest accuracy

Dynisco Cloud

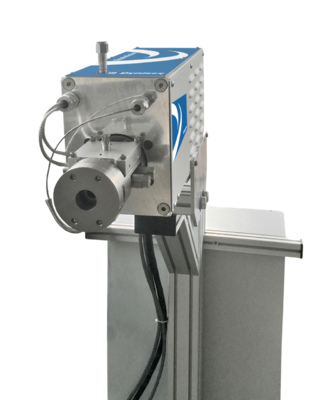

ViscoIndicator

Specifically designed for the thermoplastics resin industry. The ViscoIndicator duplicates the test conditions of a laboratory Melt Flow Rate (MFR) tester or capillary rheometer. Melt viscosity measurements such as melt flow rate and Intrinsic viscosity are primary specifications of thermoplastic resins.

Dont forget- our ViscoIndicator is IoT enabled.  The IoT native software of the ViscoIndicator allows for real-time access to your testing information.With the Dynisco Cloud Connect Subscription, you get comprehensive access of rheological data, correlations, and dashboards.  This interface allows for a complete “Window into the Process” providing valuable insight to your polymer process.

Connection instead of pressure sensor

Windows ™ 10 IoT

Continuous MFR indication

Continuous indication of shear viscosity

Continuous indication of intrinsic viscosity

Vertex mercury-free sensors

Easy installation

Easy integration

Quick capillary change

Dynisco Cloud
