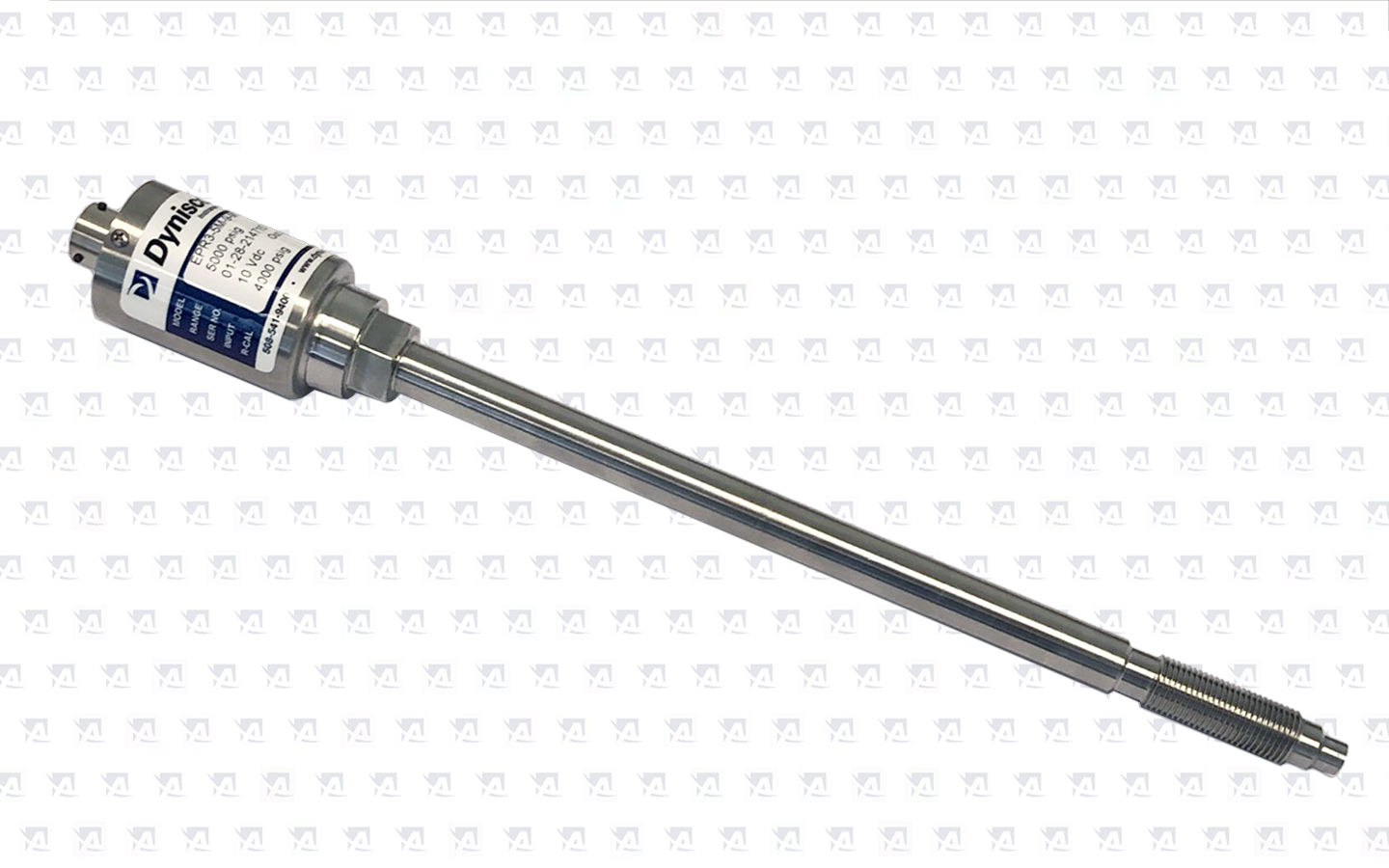

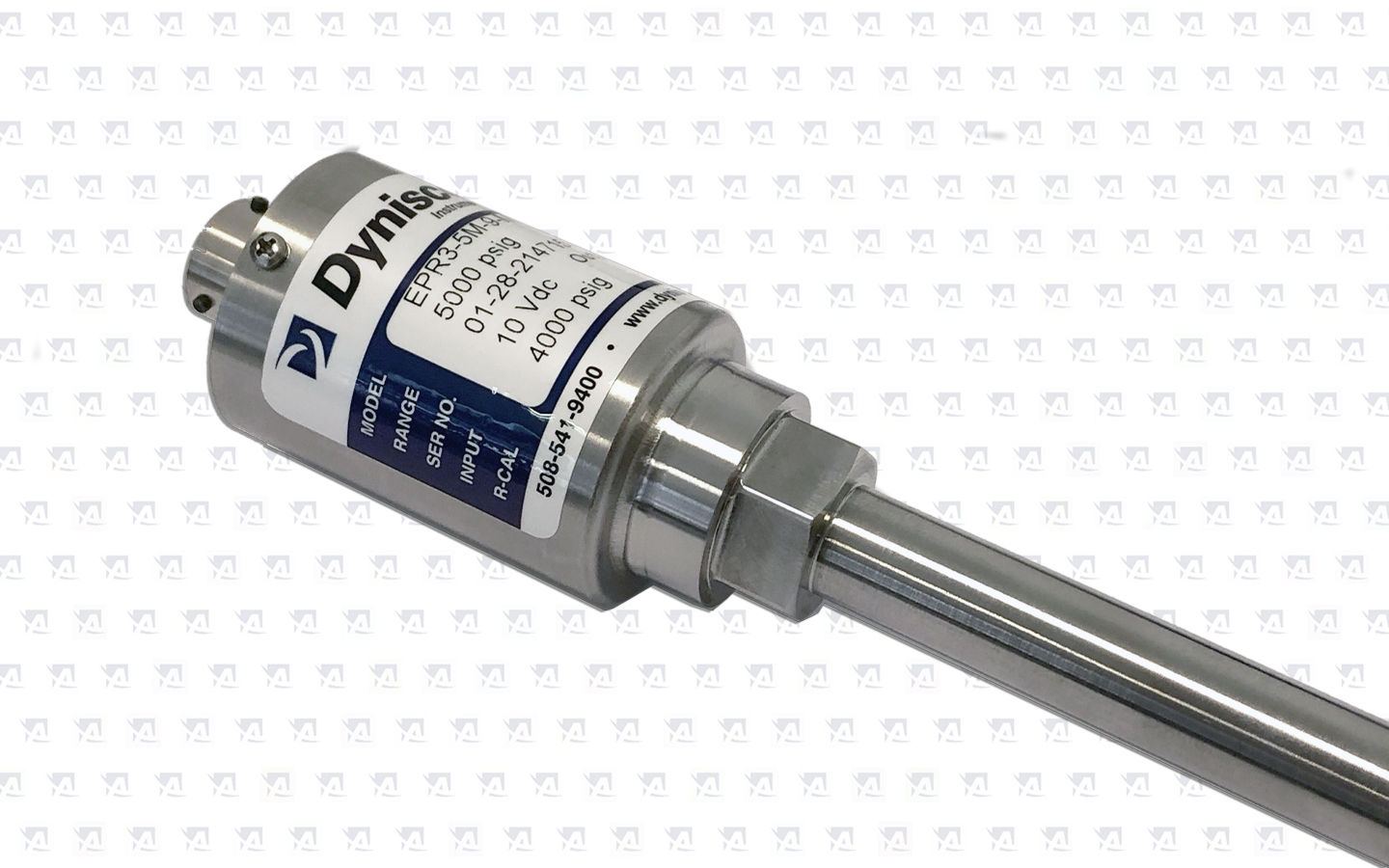

EPR4 Push Rod Sensors
The EPR4 series are sensors with ± 0.5% accuracy ideal for food or medical applications requiring easy installation, repeatability and reliability. Technology Push Rod design is especially suitable for food or medical applications with the possibility of filled systems. EPR4 provide an industry standard in the form of an amplified 4-20 mA signal designed to work with DCS and PLC. The EPR4 model is available in various pressure variants.
PERFORMANCE CHARACTERISTICS
Pressure range:
|
0 - 1,500, 0 - 3,000, 0 - 5,000, 0 - 7,500, 0 - 10,000 |
|
Accuracy:
|
±0.5% FSO
|
|
Repeatability:
|
±0.2% f.s.v.
|
|
Distinction: | Infnite | |
Maximum overpressure: | 150% of range | |

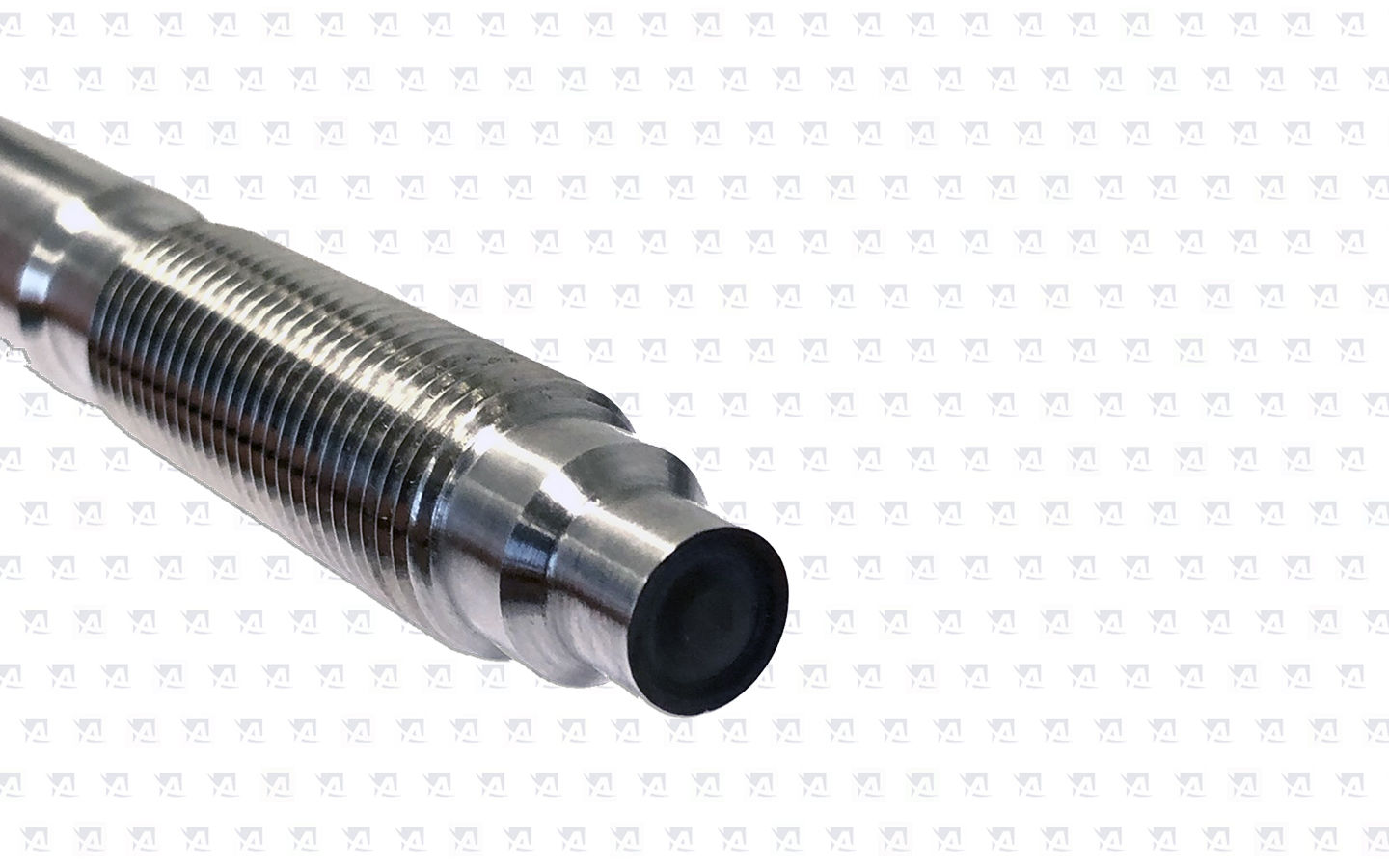

Material in contact with the melt: | 17 - 4 PH stainless steel, Dymax® coated |
TEMPERATURE CHARACTERISTICS
Max. membrane temperature:
|
400°C
|
|
Zero shift (due to temperature):
|
<0.4 bar / 100°C
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
Max. sensor body temperature: | 121°C | |
Zero shift (due to temperature) | ±2.0% f.s.v./100°C | |
Displacement sensitivity (due to temperature) | ±2.0% f.s.v./100°C |
ELECTRICAL CHARACTERISTICS
Configuration:
|
Four-arm Wheatstone Bridge Strain Gauge (DMS)
|
|
Internal calibration:
|
80% f.s.v ±0.5%
|
|
Output signal:
|
4-20 mA output signal
|
|
Input power: | 10 V DC, max. 12 V DC | |
Zero setting: | 350Ω | |
Insulation resistance: | 1000MΩ at 50 Vdc |
Certification & Approval
![]() |
EU Declaration of Conformity for Flush Mount mV/V Output |
![]() |
ISO 9001:2015 |
![]() |
EAC - The Eurasian Conformity mark |
![]() |
GOST Approval |
![]() |
RoHS Compliance Fact Sheet |
![]() |

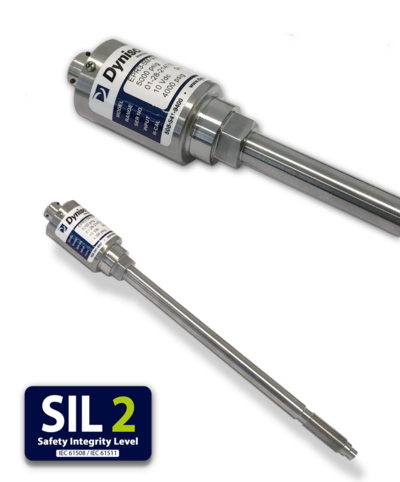

Safety Integrity Level - SIL2 |
