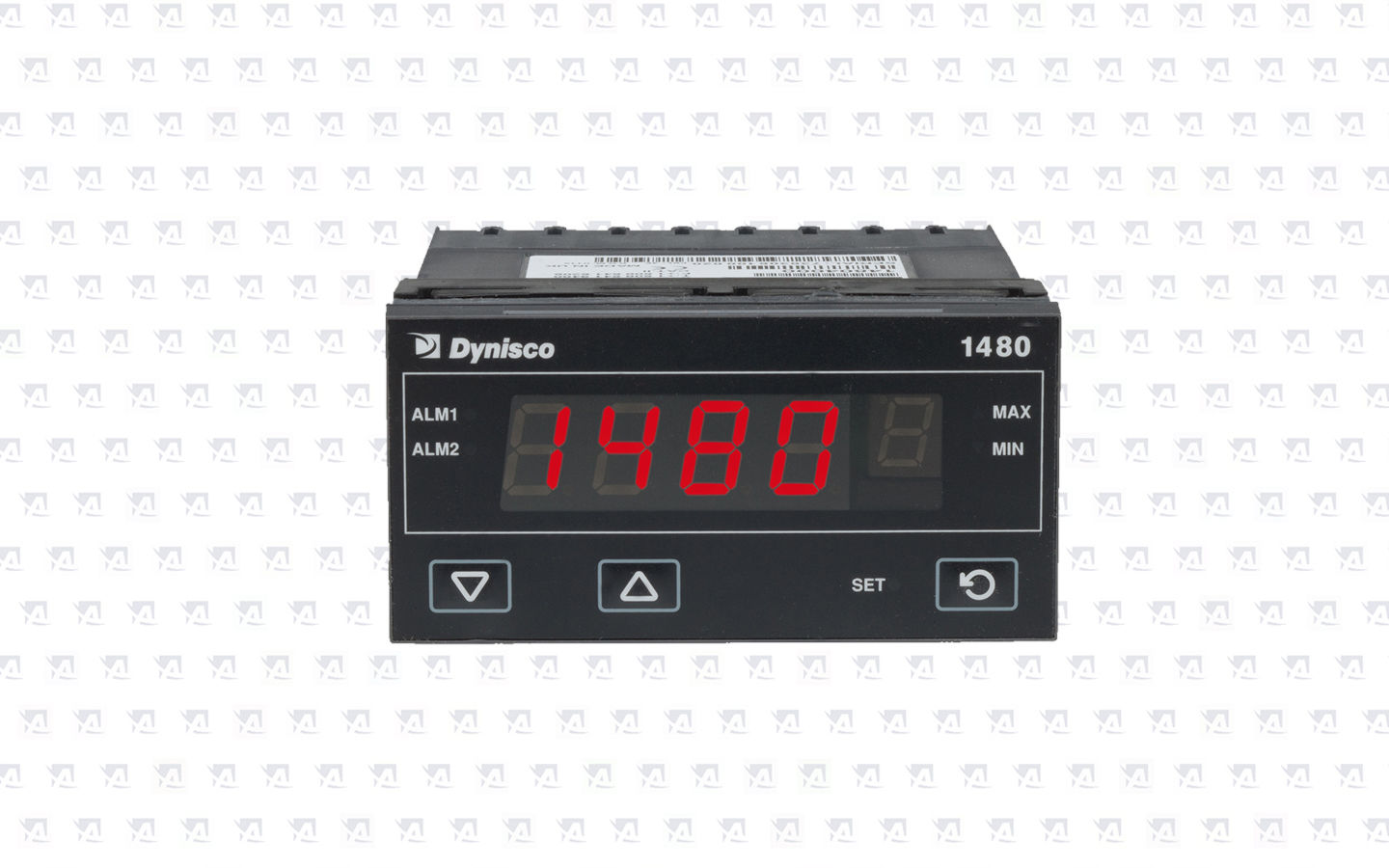

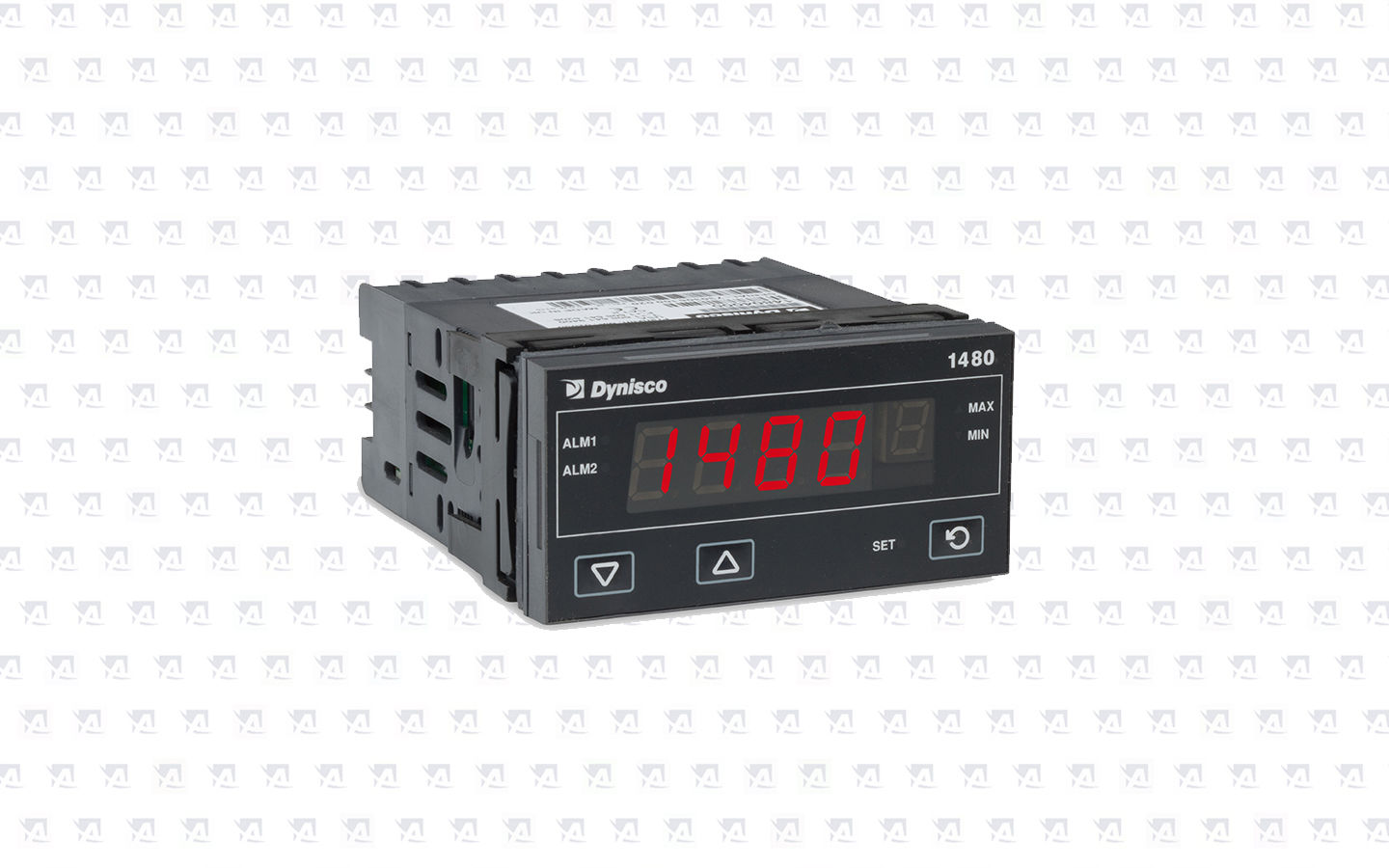

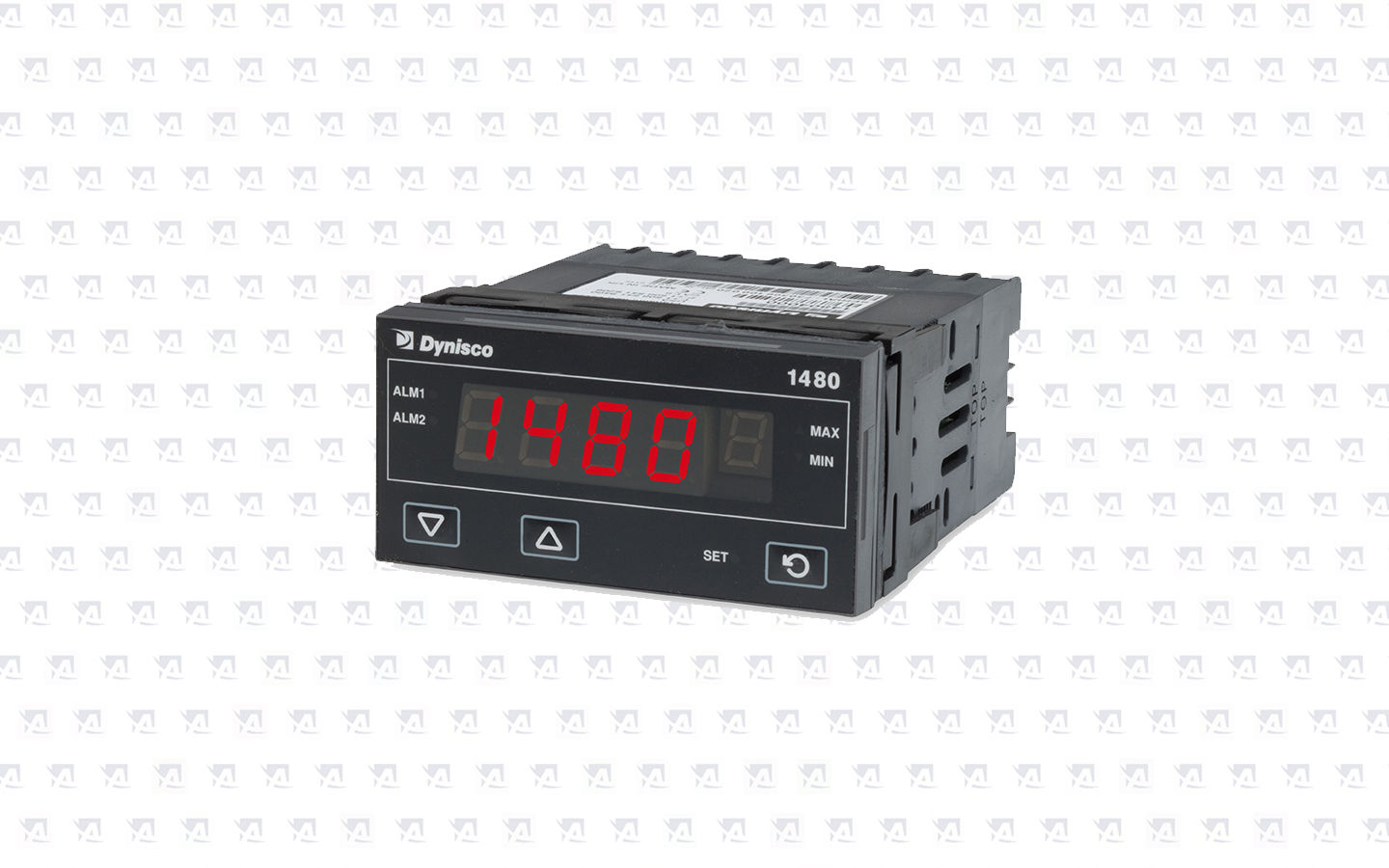

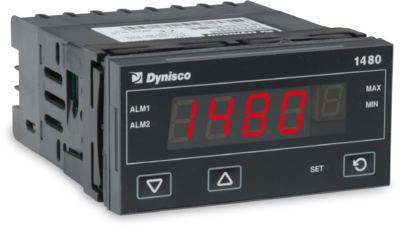

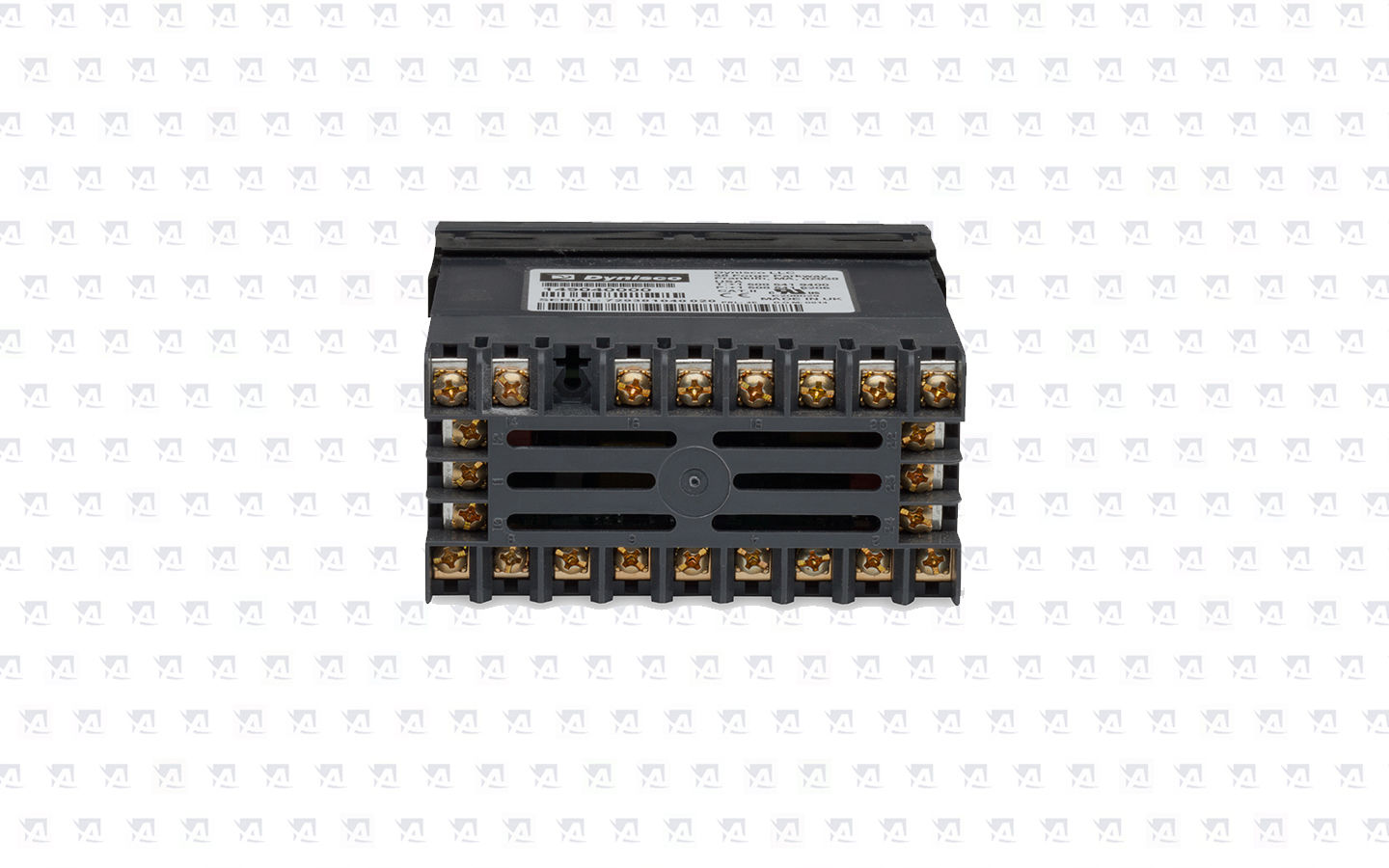

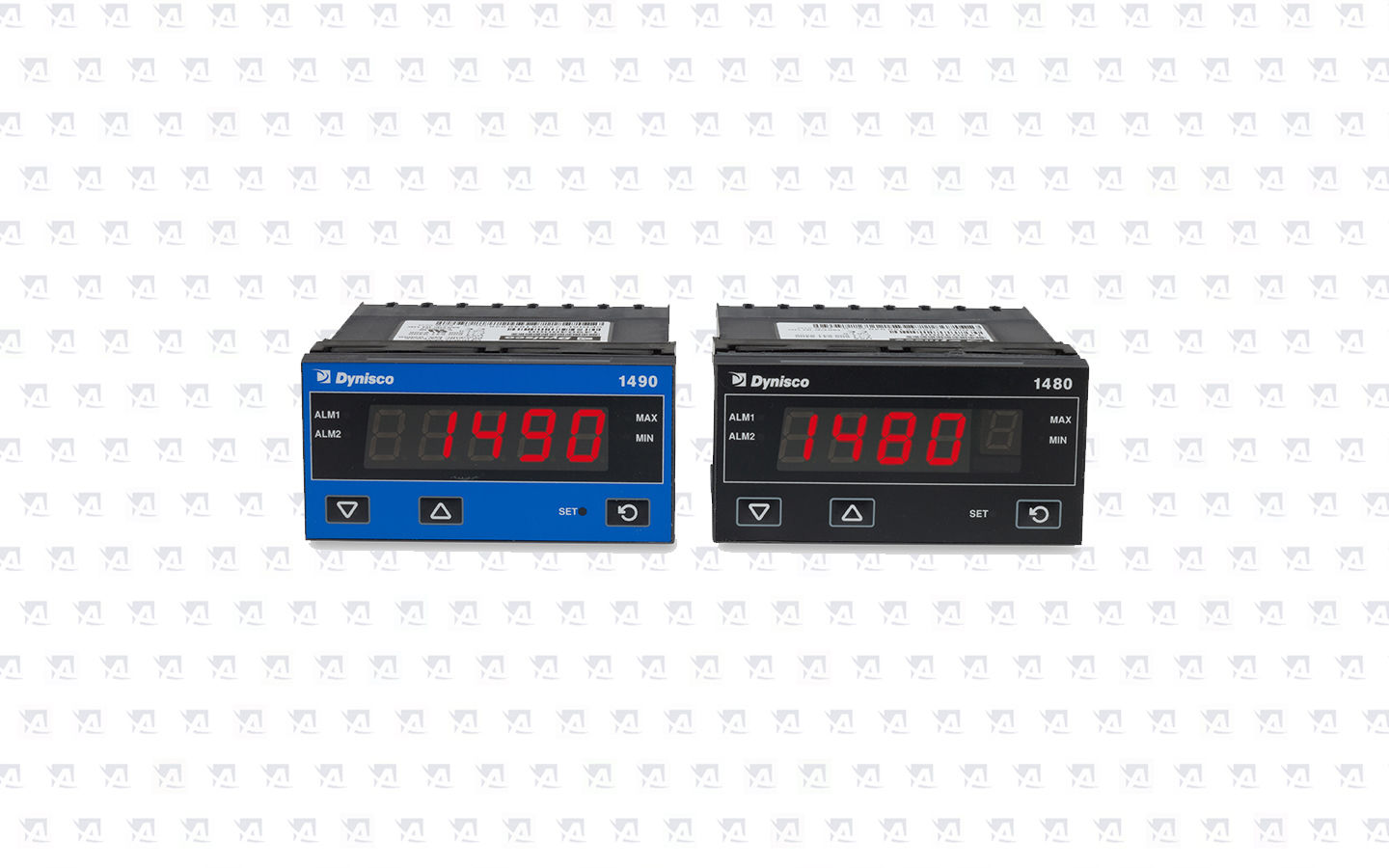

1480 Panel Indicator
1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.
1480 Panel Indicator
1480 Panel Indicator
1480 Panel Indicator
1480 Panel Indicator
1480 Panel Indicator
Indicator functions:
|
Output configuration:
|
1 or 2 relay outputs with optional linear retransmission
|
|
|
Alarms:
|
2 high / low alarms with adjustable hysteresis
|
|
|
Displayed values:
|
Process, maximum and minimum value
|
|
| The user interface: | 3 buttons, 5 digits 13 mm high display, 2 LED alarm indications, red backlight |
Indicator inputs:
|
Thermocouple types:
|
J, K, C, R, S, T, B, L, N a PtRh20%vsPtRh40%
|
|
|
RTD:
|
3 Wire PT100, 50Ω per lead maximum (balanced)
|
|
|
Strain gauge:
|
350 Ohm Strain Gage
|
|
| Bridge Connection: | 4 or 6 wire (6 to use internal shunt cal switch) | |
| Bridge Excitation: | 10V ±7% | |
| Bridge Sensitivity: | 1,4 až 4 mV / V | |
| Input Signal Span: | - 25% to +125% of full scale (approximately -10 mV to +50 mV) | |
| Calibration: | Internal switch between CAL2 & CAL1 terminals. External resistor only |
|
| Shunt Value: | From 40% to 100% | |
| DC Linear: |
0 to 20mA, 4 to 20mA, |
|
| Scaleable: | -1999 to 99999 with adjustable decimal point | |
| Impedance: | >10MΩ for Thermocouple and mV ranges, 47KΩ for V ranges and 5Ω for mA ranges | |
| Accuracy: | ±0.1% of input range ±1 LSD (T/C CJC better than 1°C) | |
| Sampling: | 10 per second, 16 bit resolution approximately (100ms sample time) | |
| Sensor Break Detection: | <2 seconds (except zero based DC ranges), high alarms activate for T/C, RTD and mV ranges, low alarms activate for mA or V ranges |
Outputs and options:
|
Alarm Relays:
|
Contacts Single Relay SPDT 2 Amp resistive at 240V AC, >500,000 operations. Latching or non-latching. Dual Relay SPST 2 Amp resistive at 240V >200,000 operations. Reinforced safety isolation from inputs and other outputs
|
|
|
DC Linear Retransmit Outputs:
|
0 to 20mA, 4 to 20mA into 500Ω max, 0 to 10V, 2 to 10V, 0 to 5V into 500Ω min. 15 3/4 bit (1 part in 52K) and updated at about 65ms intervals. (130ms settling time) Stability: ±76ppm
|
|
|
Transmitter Power Supply:
|
Output 24VDC @ 60mA
|
|
| Serial Communications: | 2 Wire RS485, 1200 to 19200 Baud, Modbus | |
| Logic Input: | External reset of latched relay, stored alarm 1 elapsed time, stored min/max PV values or initiate tare function. Action occurs on high (3 to 5VDC) to low <0.8VDC, or Open to Closed transition |
Operating & Environmental
|
Temperature and relative humidity:
|
0 to 55°C (-20 to 80°C storage), 20% to 95% RH non-condensing
|
|
|
Power Supply:
|
110 to 240V 50/60Hz 7.5VA (optional 20 to 48V AC 7.5VA/22 to 65V DC 5 watts)
|
|
|
Front Panel Protection: IEC IP66
|
IEC IP66 (Behind panel protection is IP20)
|
|
| Standards: | CE. Pollution Degree 2, Installation Category II “UL Listed” |
INDICATOR DIMENSIONS:
DIAGRAM:
Certification & Approvals
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
UL Approval |
|
|
|
