GRMT
A sliding thermocouple (GRMT) is used to measure the temperature inside the polymer melt flow with different sensing depths. The temperature sensing position can vary from the chamber wall to the center of the chamber during standard flow and pressure conditions without removing the sensor from the adapter. The offset in the design of the temperature sensor housing allows the user to select and monitor the displacement depth of the sensor in which it is currently located.
PERFORMANCE CHARACTERISTICS
Thermocouple output:
|
Typ J (standard) / K / RTD / Specify Type
|
|
Sensor connection:
|
1/2"-20 UNF
|
|
Sensor connection:
|
0 up to 480°C
|
|
Immersion depth: | 2,5cm - 6,5cm | |
Compatibility: | Compatible with Dynisco pressure sensor mounting holes | |
Rigid stem length: | Optional length 7.6 - 22.8 cm | |
Sensor type: | 1-wire STD, Two-wire, 2-wire RTD, 3-wire RTD, 2 Dual RTD, 3 Dual RTD |

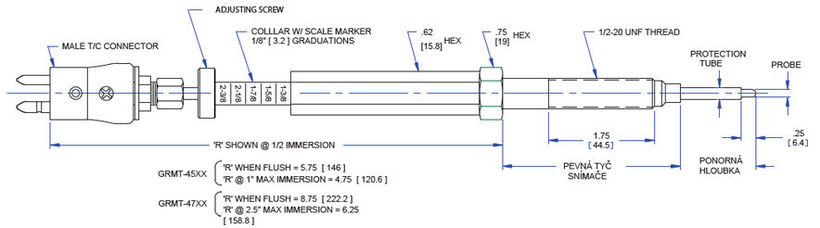

SENSOR DIMENSIONS:

Certification Approval
![]() |
EU Declaration of Conformity |
![]() |
ISO 9001:2015 |
![]() |
EAC - The Eurasian Conformity mark |
![]() |
Recognized Component Mark |
