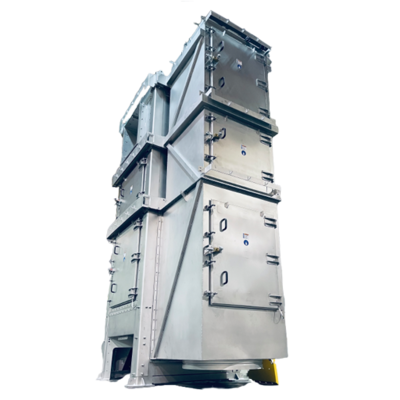

High-Capacity Model
MAAG/Gala is the market leader for high capacity dryers. Large resin producers have the need for high capacity, continuous operation pellet dryers. By utilizing patented processes and innovative equipment designs, MAAG/Gala is capable to manufacture centrifugal pellet dryers with outputs up to 150 metric tons per hour (330,000 lbs/hr). Design innovations such as segmented rotor designs, wedge wire rotor screens, leak proof bearing seals in combination with high quality steel options assure our customers highest reliability. All MAAG/Gala pellet dryers are supplied with door timed interlocks and local power disconnect for operator safety.
TECHNICAL PARAMETERS
|
Model |
Model 60 |
Model 70 | Model 100 | Model 150 | |
| Drying Capacity (1) | 60,000 kg/h (130,000 lbs/hr | 70,000 kg/h (150,000 lbs/hr) | 100,000 kg/h (220,000 lbs/hr) | 150,000 kg/h (330,000 lbs/hr) | |
| Dewatering Capacity Max. BF (GPM) | 90 m 3 /h (400 GPM) | 90 m 3 /h (400 GPM) | 90 m 3 /h (400 GPM) | 90 m 3 /h (400 GPM) | |
| Dewatering Capacity Max. DW (GPM) | 685 m 3 /h (3,000 GPM) | 910 m 3 /h (4,000 GPM) | 1,360 m 3 /h (6,000 GPM) | 1,360 m 3 /h (6,000 GPM) | |
| Air Flow (CFM) | 18,700 Nm 3 /h (11,000 CFM) | 18,700 Nm 3 /h (11,000 CFM) | 21,875 Nm 3 /h (12,800 CFM) | 21,875 Nm 3 /h (12,800 CFM) | |
| Motor Size | 55 kW (75 HP) | 55 Kw (75 HP) | 93 kW (125 HP) | 112 kW (150 HP) | |
| Rotor Screens | wedge wire 1.4mm (0.055”) slotted openings | wedge wire 1.4mm (0.055”) slotted openings | wedge wire 1.4mm (0.055”) slotted openings | wedge wire 1.4mm (0.055”) slotted openings | |
| Dewatering Screens | punched 1.9mm (0.075”) round openings | wedge wire 1.4 mm (0.055”) slotted openings | wedge wire 1.4mm (0.055”) slotted openings | wedge wire 1.4mm (0.055”) slotted openings | |
| Feed Screen | circular wedge wire 1.4mm (0.055”) slotted openings | circular wedge wire 1.4mm (0.055”) slotted openings | circular wedge wire 1.4mm (0.055”) slotted openings | circular wedge wire 1.4mm (0.055”) slotted openings | |
| Rotor Speed | 385 RPM | 385 RPM | 385 RPM | 385 RPM | |
| Housing Design | easy access (2) | heavy duty (4) | heavy duty (4) | heavy duty (4) | |
| Rotor Removal | through top (3) | through side (5) | through side (5) | through side (5) | |
| Agglomerate Catcher | Model 18 PSAG | Model 20 PSAG | Model 28 PSAG | Model 28 PSAG | |
| Pellet Diverter Valve | Model 7.14 | Model 9.20 | Model 9.20 | Model 9.20 | |
|
Specifi cations are subject to change without notice when products are improved in quality of performance. (1) Capacity is based on 1/8” (3 mm x 3 mm) round, smooth LDPE pellet (2) Must be shipped vertically (3) Needs overhead clearance for rotor removal (4) Can be shipped horizontally (5) Needs minimum overhead clearance for rotor removal |
|||||
