HSC

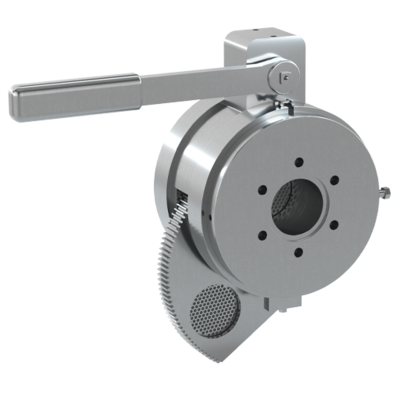

Manual screen changers from MAAG have been the first choice of cost-effective filtration systems in extrusion lines for many years. Starting at size 45, the manual screen changers optionally come with transmission gearing. Here, the breaker plate of the plate screen changer is equipped with
patented gearing and a pinion which allows an effortless screen change even in restricted space conditions or high sealing pressures. The manual screen changer guarantees the protection of gear pumps and fine extrusion die gaps in filtration solutions from damage and the accumulation of soil.
TECHNICAL DATA
| Throughput rate [kg/h] | 20 – 1100 | |
| Operation method | diskontinuierlich | |
| Required heating output [kw] | 0,7– 8,4 | |
| Filter surface [cm²] | 3 – 201 | |
| Number of sieve cavities | 2 | |
| Screen diameter/length | 20 to 160 mm | |
| Filtration area | 3 cm2 to 201 cm2 | |
| Mounting | Compact mounting dimensions, all positions possible |
APPLICATION FIELDS
|
Flat films
|
|
|
Foam films
|
|
|
Blown films
|
|
| Plates | |
| Pipes | |
| Profiles | |
| Blown mouldings | |
| Fibres | |
| Granulation | |
| Compounding | |
| Recycling |
OPTIONS
|
Breaker Plate with Diverter Valve function
|
|
|
PVC-design
|
|
|
Coated flow channels
|
|
| Stainless steel design |
ACCESSORIES
|
Connection adapters
|
|
|
Base frames
|
|
|
Screen plates
|
|
| High-pressure breaker plate |
