EAC

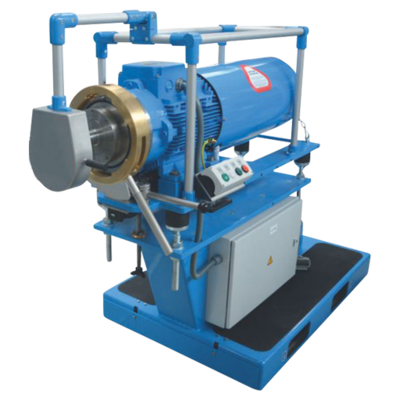

Electronically Adjustable Pelletizer
The EAC pelletizer for underwater pelletizing offers fully automated control of blade adjustment, positioning, and monitoring, resulting in maximum blade and die face life. Monitoring and adjustment processes are programmed in the Gala PLC controlled system. An optional integrated blade position measuring system for unterwater pelletizer is available, providing indication of blade position and warning of the need for a blade change.
TECHNICAL DATA
| PELLETIZER MODEL | TYPICAL OUTPUT RATE (kg/h) | |
| 5 (LPU® System) | 2 - 100 | |
| 5 | 20 - 300 | |
| 6 | 50 - 1800 | |
| 7 | 500 - 6000 | |
| 12 | 2400 - 15 000 |
Range of applications Gala pelletizing systems are well-suited for the production of raw materials as well as for the manufacture of compounds, blends, masterbatches, and recyclates based on:
- Polyolefi ns, e.g., LDPE, HDPE, PP
- Styrene polymers, e.g., PS, SAN, ABS
- Acrylic resins, e.g., PMMA, PAN
- Polyacetals, e.g., POM
- Polycarbonates, e.g., PC
- Polyesters, e.g., PET, PBT, PEN
- Polyamides, e.g., PA 6, PA 6.6, PA 11, PA 12
- Thermoplastic elastomers, e.g., TPE-S, TPE-E
- Polyurethanes, e.g., TPU
- Hot-melt adhesives
- Rubber
- Natural and synthetic resins
- Biopolymers, e.g. PLA, PHA, Bio-PA, BioPET, Bio-PP
- Other plastics available upon request
