SGS 200-L / SGS 300-L / SGS 400-L

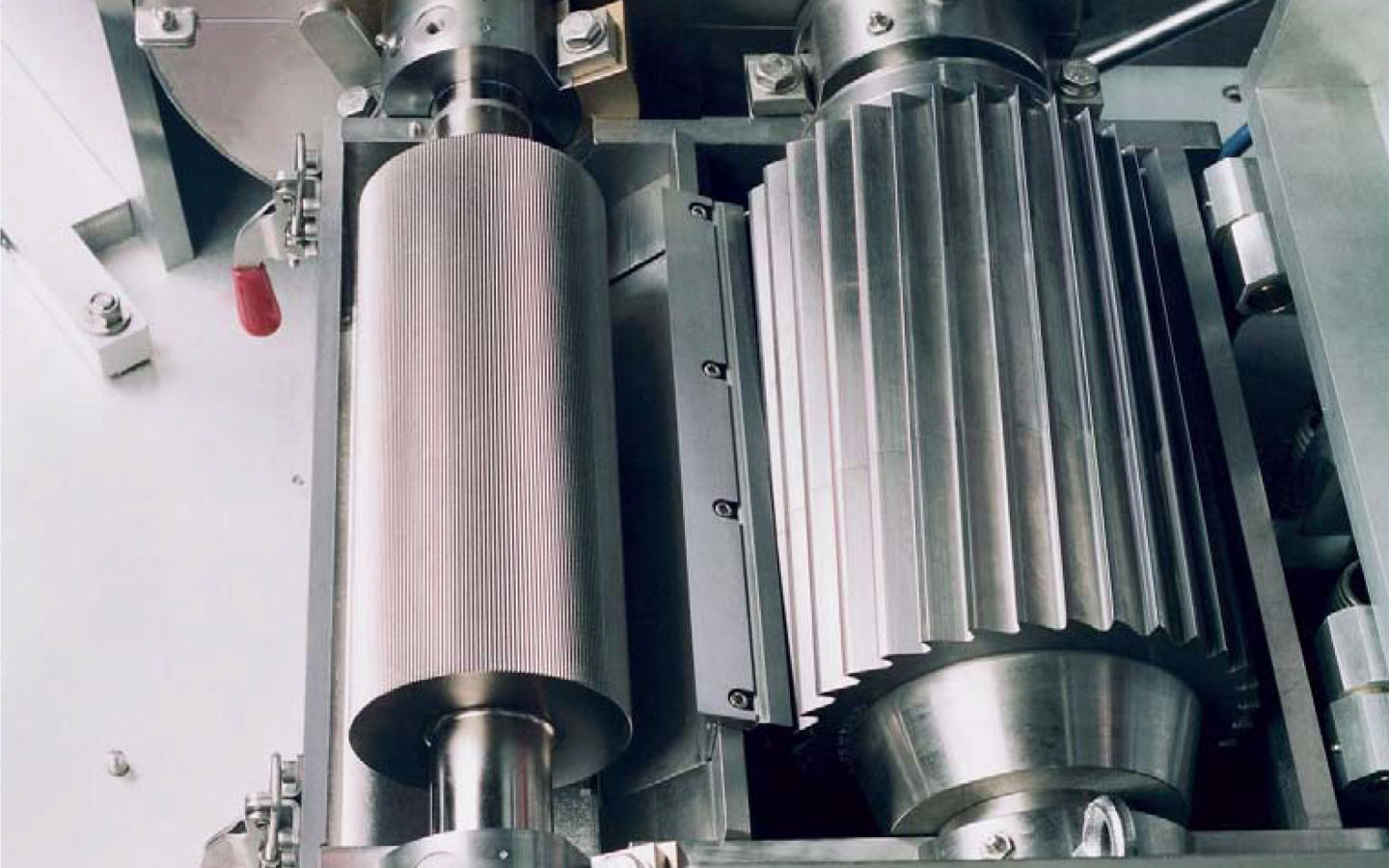

The strand pelletizers of the SGS series are used for the production of thermoplastic pellets for strand pelletizing and dry cut pelletizing. In order to withstand everyday production conditions, the technology of a pelletizer must be extremely robust, which is exactly how the technology is in a Scheer pelletizer. A Scheer pelletizer offers a unique combination of longevity, economy, performance, and quality thanks to its compact design, deposit-free cutting chamber, double shell design, and perfect fine tuning of the cutting tools.
TECHNICAL DATA
| Pellrtizer Type: | SGS 200-L | SGS 300-L | SGS 400-L | ||
| Working width: | mm | 200 | 300 | 400 | |
| Strand speed1 : | m/min | 30-120 | 30-120 | 30-120 | |
| max. No. of Strands2 : | ca. | 40 | 60 | 80 | |
| Power: | kW | 11 | 15 | 18,5 | |
| Type of Drive: | měnič | ||||
| PRODUCT | Spec. Gravity (g/cm3 ) | Throughput kg/h Pellet Dimensions (mm), Ø 3 x 3 longss | |||
| PP, PE | 0,90 | 1715 | 2575 | 3435 | |
| PA 11, P 12 | 1,0 | 1905 | 2860 | 3815 | |
| PMMA, GPPS, SAN, ASA | 1,05 | 2000 | 3005 | 4005 | |
| HIPS, ABS | 1,05 | 2000 | 3005 | 4005 | |
| PA6 n.e (dia 2,5 x 2,5 mm long) | 1,10 | 1515-52 Strands | 2270-78 Strands | 3030-104 Strands | |
| PUR | 1,10 | 2095 | 3145 | 4195 | |
| PA6.6 | 1,15 | 1970 | 2960 | 3725 | |
| PET, PBT, PC | 1,20 | 2060 | 3090 | 3890 | |
| PET, PBT, PC, PA6.6, PA6 +15 - 50 & GF | 1,30 | 1980 | 2790 | 3470 | |
| Dimensions | |||||
| A | mm | 190 | 290 | 390 | |
| B | mm | 206 | 422 | 450 | |
| C | mm | 840 | 940 | 1040 | |
| D | mm | 1260 | 1360 | 1460 | |
| E | mm | 950 | 1050 | 1150 | |
