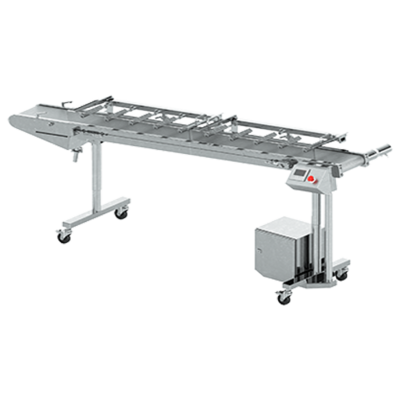

Strand Cooling Belt PFS
Unlike conventional extrusion in a water bath, the Strand Cooling Belt PFS does not require manual threading of strands. Strands are deposited directly on the conveyor belt and automatically conveyed to the strand pelletizer. The cooling is done by special air nozzles with high cooling capacity.
Technical Data
| Technical Data | Series 250 |
|---|---|
| Cooling belt width: | 250 mm |
| No. of strands: | 1-25 |
| Belt speed: | 0,8-10 m/min or 8-80 m/min |
| Cooling belt length: | 2,3,5 or 7 m |
Application Areas
- Transport and cooling of strands
- Transport and cooling of granules made by wet extrusion
- Ideal for water-soluble formulation
- Continuous operation or batch production
- Suitable for laboratory usage in the research and development phase
- For pelletizing from an extruder or reactor vessel
