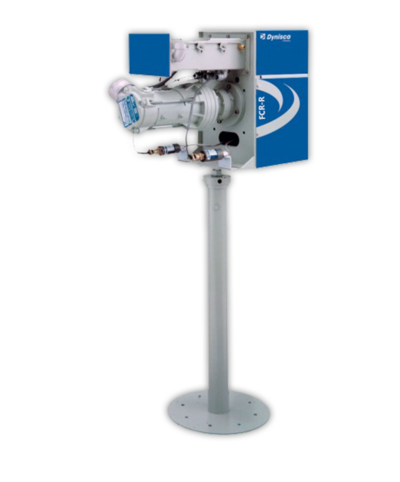

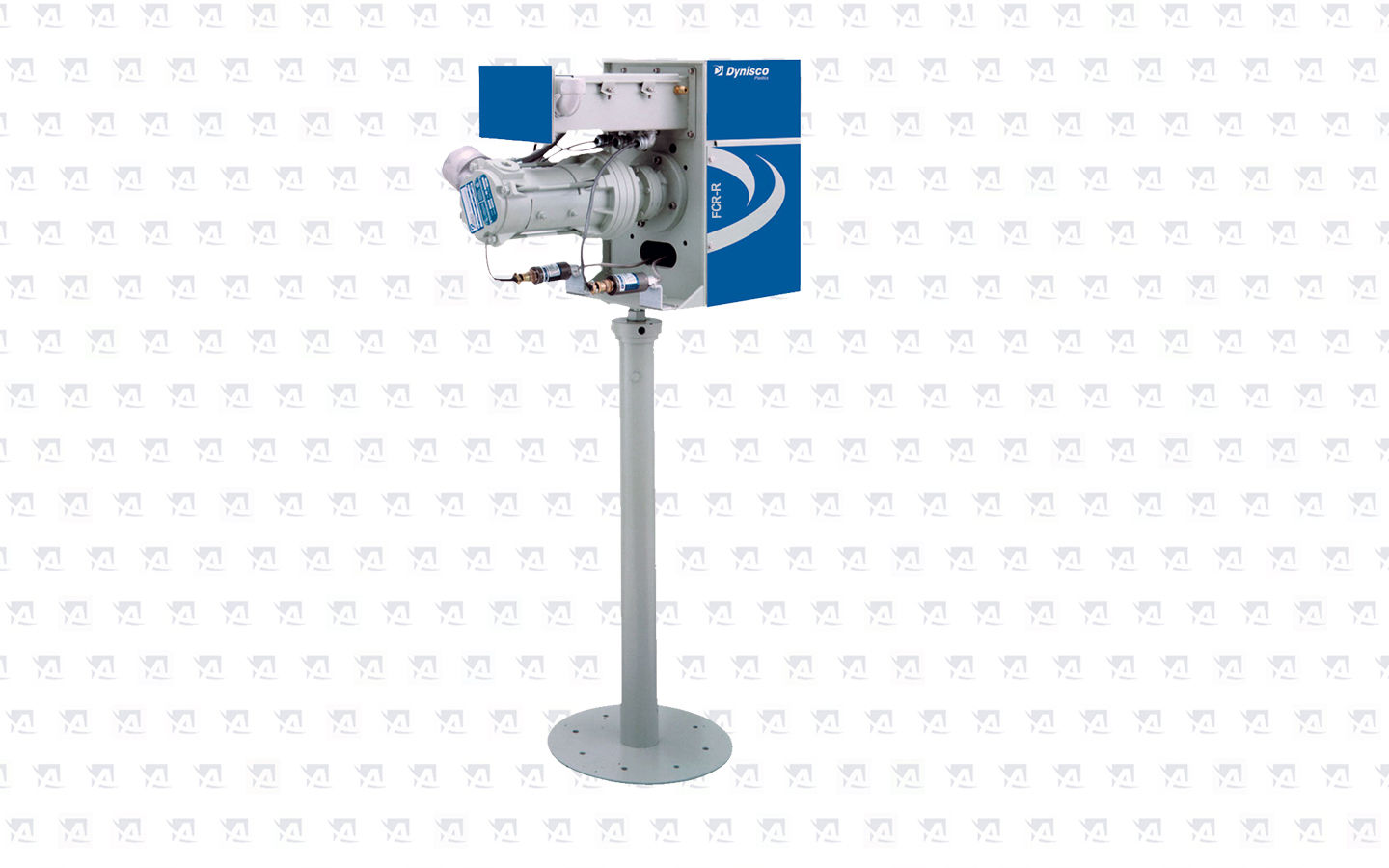

FCR-R - Rheometer

FCR-R - Rheometer

Specifically designed for the synthetic fiber production industry, the Dynisco FCR-R series can be configured to measure a range of apparent shear viscosities, dual melt flow rate, simultaneous melt flow rate and extensional viscosities using the Cogswell Equations. The FCR-R system consists of two parts: a rheometer head and a rheometer control unit (RCU). The rheometer head is connected directly to the process which samples, conditions, and measures the melt viscosity of the molten resin through two separate dies. The RCU controls the rheometer test parameters (temperature, pressure and rate) and takes in data from the measurement head as well as provides outputs of computed results.

Features:

■ On-line apparent viscosities over a broad shear rate range
■ Unique dual capillary design with return stream
 On-line measurements of polymer extensional properties
 Data exchange by analog and digital input/outputs
■ Simple calibration

FCR-R - Rheometer

FCR-R - Rheometer

Online Rheological Measurement Experience the Benefits of Online Rheology Measurement



The Flow Characterization Rheometer


The measurement head samples molten polymer from the process through a heated transfer line. A three gear metering pump then drives the polymer melt through two separate capillary dies at a precisely controlled rate.
When the system is run at constant pressure (stress) and the flow rate is determined, continuous measurements of the MFR or MFR/ viscosity may be obtained. When it is run at constant rate the simultaneous calculation of apparent viscosities at different shear rates are possible. Extensional viscosities can be obtained when a ”zero length” die is used as one of the capillaries.



Rheometer Control Unit

The Rheometer Control Unit is contained in a NEMA 4 (IP 54) box that may be located in the control room or on the process floor. Programming of the control functions and output displays are achieved via a local color display with a touch screen interface. The RCU can communicate with a Distributed Control System (DCS) through its analog and serial outputs. The RCU operates independently and will continue its control and analysis functions in the event of a DCS failure.

Options



■ Various Capillaries

■ Process Isolation Valve

■ Standing Console or Wall Mount for RCU

■ Additional I/O

■ Heated Transfer Section

■ Modbus RTU or TCP, Profibus, Profinet, Open TCP

■ Hazardous ocation

■ NEMA 4X

■ Simple calibration



Performance Characteristics


Melt Flow Index: 0.02 - 5000 g/10 min
Viscosity Range: 10 - 105 Pa.S
Shear Stress: 150 - 1.5 x 105 Pa
Shear Rate: 1 – 5000 s-1 (standard die) max. 50,000 s-1 (special die)
Dies:

Viscosity: 1 - 5mm, 10 do 30:1 L/D
Melt Flow Index: 3.8182:1 L/D
Special Dies: Na życzenie
Temp. Range: 40 – 80°C
Pressure Range: 3 x 105 – 3.5 x 107 Pa
Metering Pump:

0.30 cm3 / RPM (standard)
Optional pumps available


Pump Speed: 2 – 40 RPM
Polymer Flow: 680 g/hour (average)





Measurement and Control Functions

Shear Stress Mode:
Set point: Pressure
Measurement: Melt Flow Index
Shear Rate Mode:
Set point: Pump Speed
Measurement: Apparent Viscosity
Temperature control: 2 Heating Zones
Pump and Capillaries





RCU Specifications


Electrical Cabinet: NEMA 4 (IP 54)
CPU: S7-300
Operator Interface: Touch screen display





Analog Outputs: (4 – 20 mA Standard)


Temperature: Pump Temperature
Capillary Temperature
Melt 1 & 2, Average, Aux
Pressure: Transducer 1,2,3
Delta Pressure 1,2
Rheological: MFR, Shear Rate, Shear Stress,
Melt Viscosity, Relative Viscosity,
Intrinsic Viscosity





Digital Inputs: (NO/NC Dry Contacts)


Test (motor): on/ off
Heat: on/ off
Mode: pressure / speed





Digital Outputs: (NO/NC)

Fault
Alarm
Local/ Remote
Motor on/ off
Material in range





Electrical Specifications

System Voltage: 220-240V Single Phase 50/60 Hz
Power: 2000 W (max)







Dimensions RCU:

Dimensions E-RCU:
