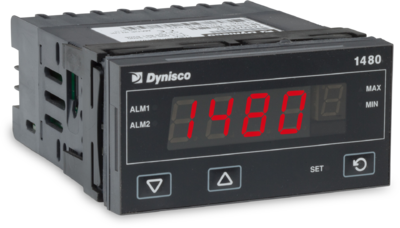

1480 Panel Indicator
1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.
Universal entrance
2 alarm outputs
Optional retransmission
Min. / max. values
PG4 Series
Dynisco's series of mechanical pressure indicators is the ideal choice for applications that require simple and maintenance-free pressure indication.
Direct, local measurement
Mechanical construction
Optional flexible capillary
The indicator head is rotatable by 300°
Pressure range 5000 or 10,000 psi
Stainless steel construction

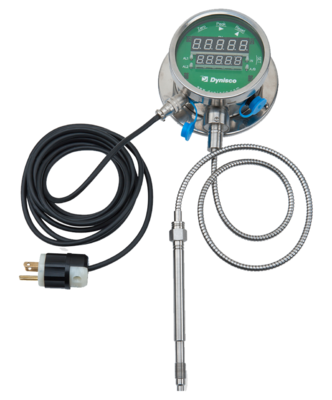

Melt Monitor Series
The Dynisco Melt Monitor alarm series is a melt pressure sensor with an integrated digital display. Optional temperature measurement is also available.
Double five-digit display
Peak function and digital zero calibration
Accuracy ± 1.0%
Optional units
Displays pressure and optionally temperature
Optional process connection

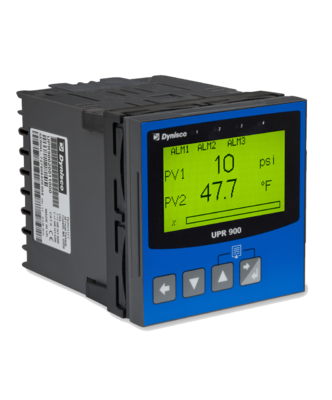

UPR 900 Panel Indicator
The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
Display of pressure, temperature
both values including the difference
Optional second input
Analog retransmission
Local or remote configuration
Graphic / text LCD
LED indication and backlight
1490 Panel Indicator
Indicator 1490 is a universal device with one or two configurable alarms, optional linear process variable retransmission, optional pressure sensor power supply, and optional Modbus communication.
Universal input
2 alarm outputs
Optional signal retransmission
Min. / max. values
Optional com. Modbus
Optional 24VDC power supply
