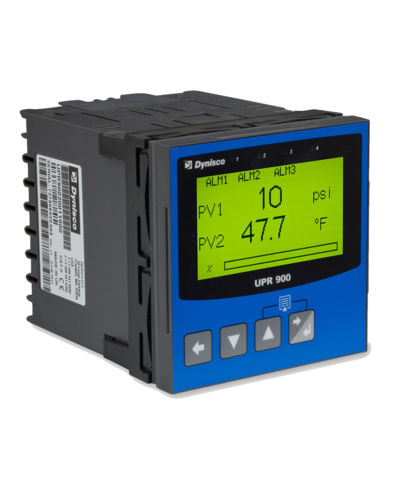

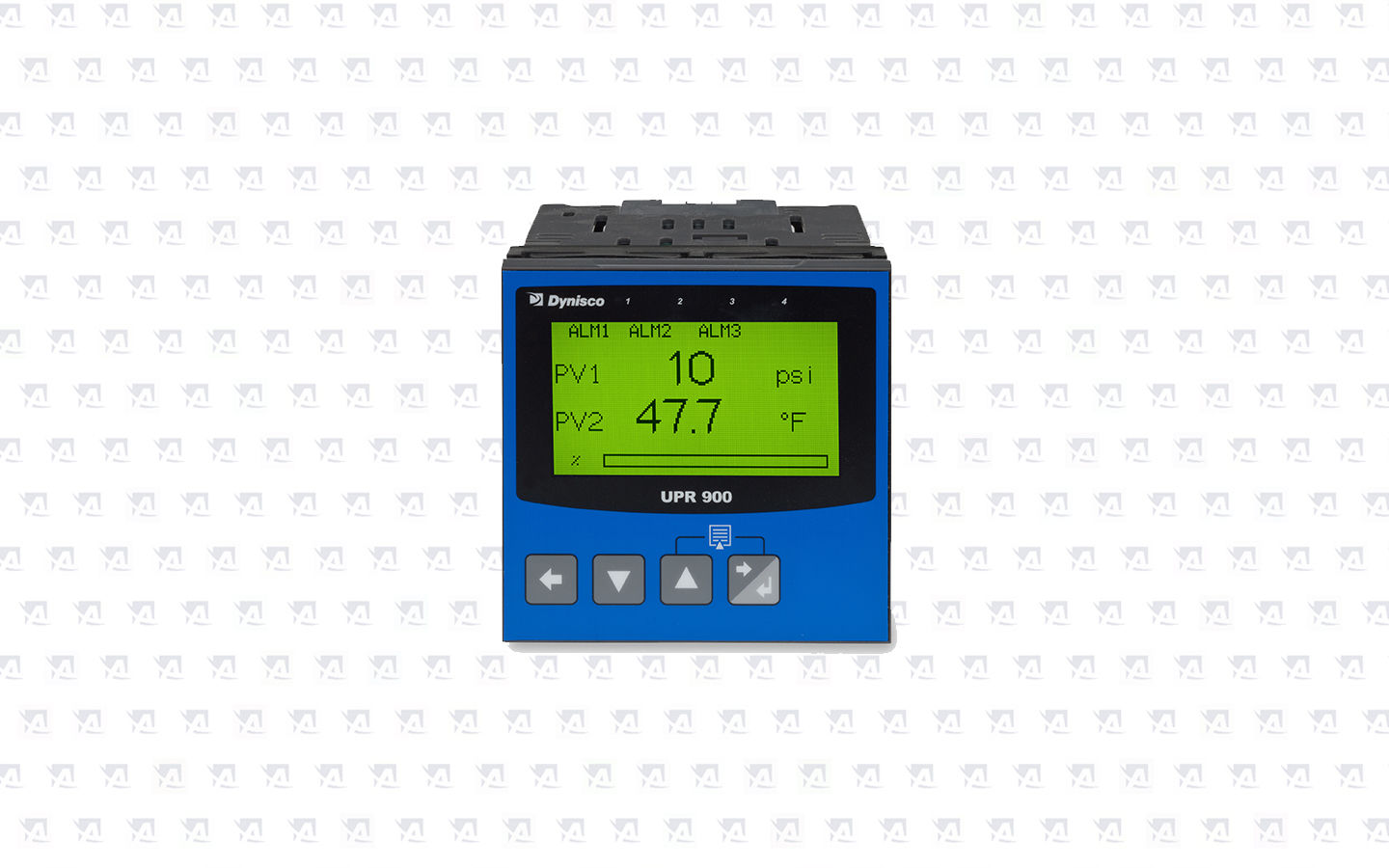

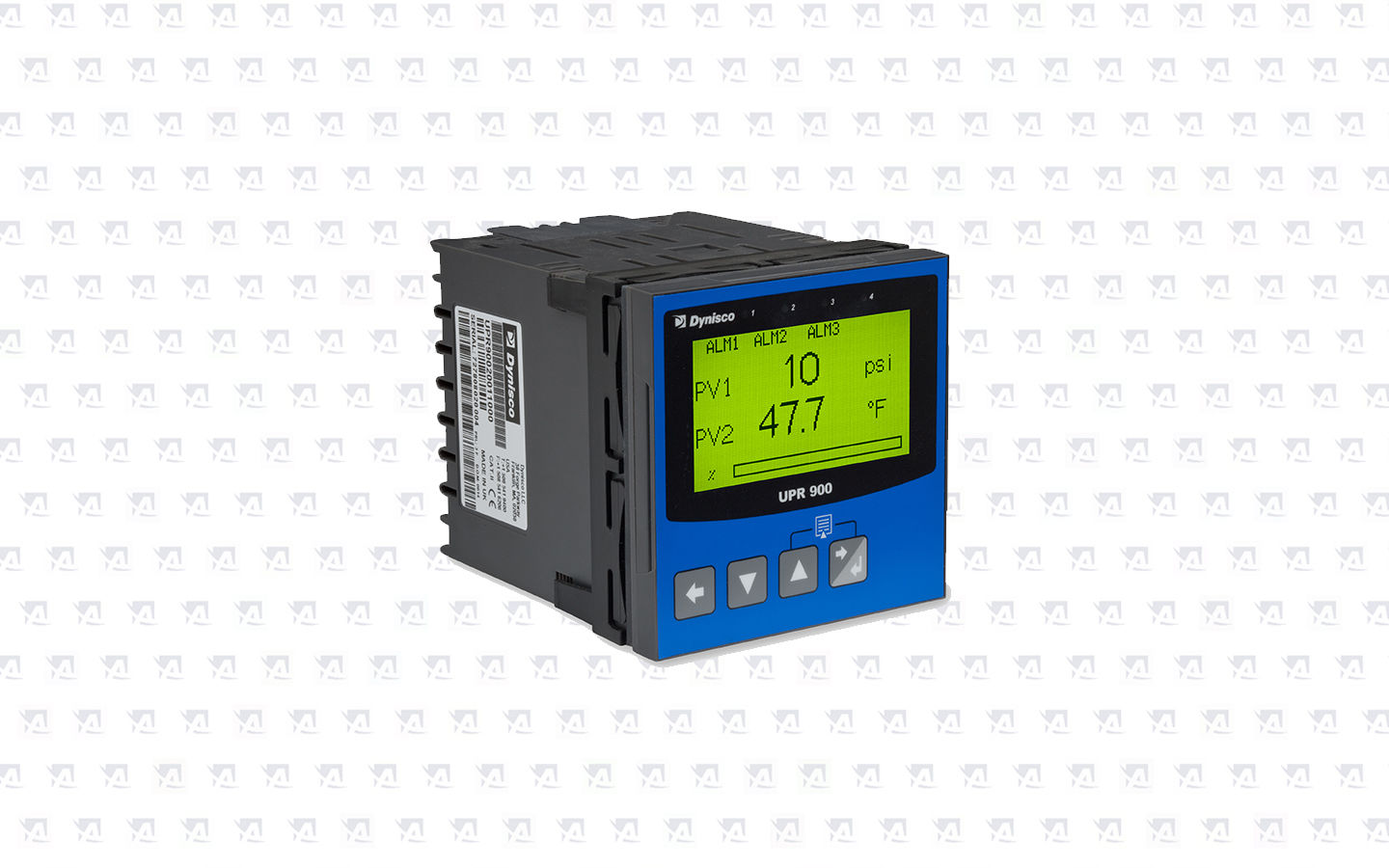

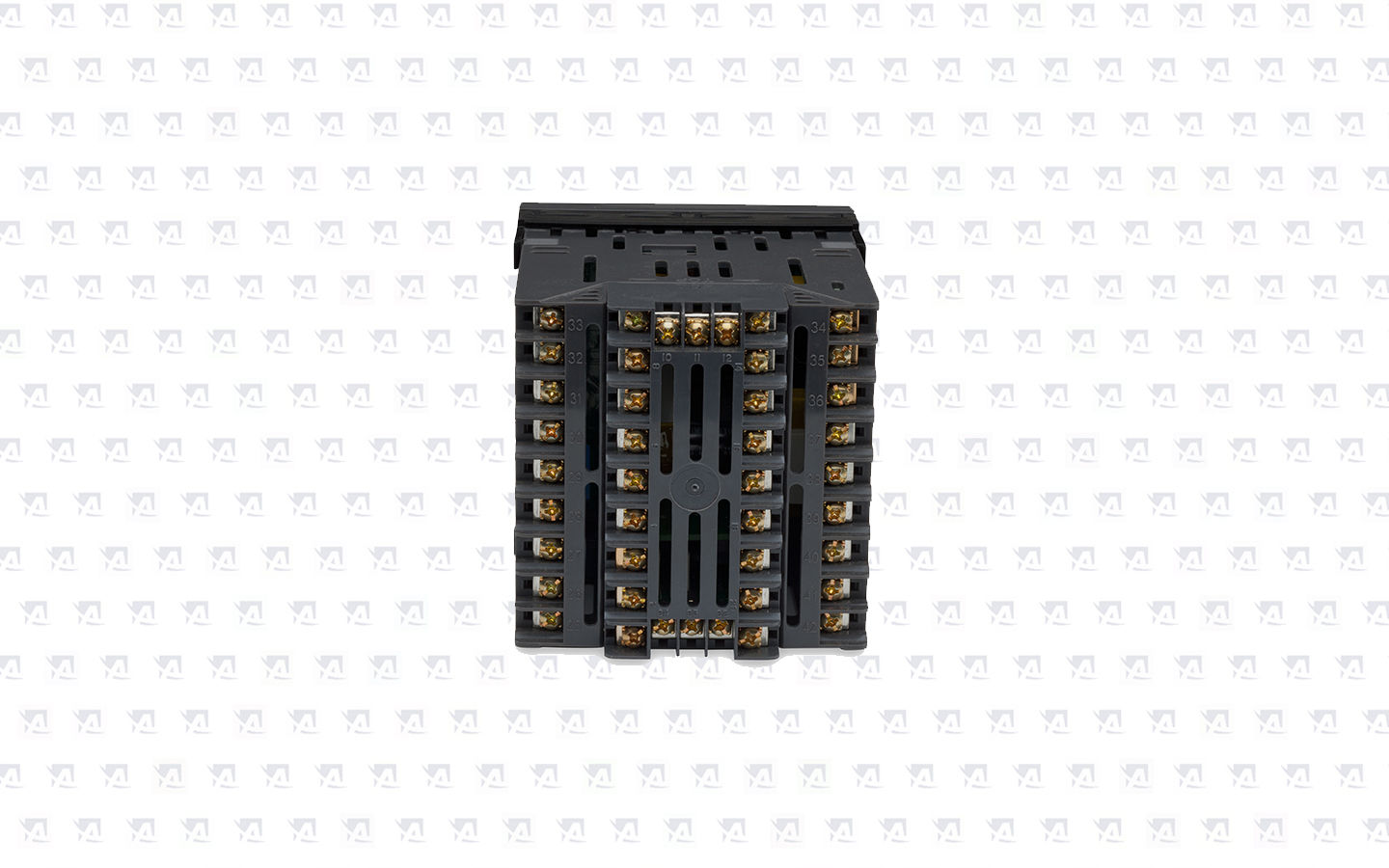

The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
The graphical LCD display allows easy reading of trend graphs with user-selectable monochrome configurations. The UPR900 can be easily configured in individual sections, can be controlled remotely via optional Modbus RS-485 or can be programmed using BlueControl software.

UPR 9000 Panel Indicator

UPR 9000 Panel Indicator

UPR 9000 Panel Indicator

UPR 9000 Panel Indicator

UPR 9000 Panel Indicator

UPR 9000 Panel Indicator

Performance characteristics:


Device type:
Digital, PID, indicator for panel mounting
160 x 80 monochrome graphic LCD display with backlight
± 0.1% of full scale,± 1LSD
(± 1 ° C pro vnitřní CJC, pokud je povoleno)
  DC Linear: ± 0.1% of full scale, ± 1LSD
  Sampling time: 50mS, typické

Indicator inputs:


Strain gauge, thermocouple or linear (Vdc, mA)
Strain gauge:
350 to 5000Ω, 1.4 to 4mV / V, excitation 10V ± 7%
Linear input:
0 to 5Vdc and 0 to 10Vdc, 0 to 20mA and 4 to 20mA
  Input signal: -25 to 125% in full range (approximately -10mV to + 50mV)
  Input impedance: <10 Ω for linear current input, 165kΩ for linear voltage input
  Short circuit calibration: With or without resistance (40 to 100% of range)
  Digital: - 25% to + 125% of full scale (approximately -10 mV to +50 mV)
Calibration: 4 programmable voltage-free closing of contacts

Alarm outputs:


Alarm type:
SPST 2A max @ 240Vac resistive load Two relays have a common share
Number of alarms:
3 standard
Alarm update time:
100mS, typical

Indicator outputs:


Type (retransmission):
0-5Vdc and 0-10Vdc, 0-20mA and 4-20mA
15 3/4 bitů
0.1% output range (mA @ <500Ω, V @> 500Ω)
  Standards and certifications: CE. Pollution degree 2, installation of category II "UL Listed"

Indicator communication:


Isolated RS-485
Modbus RTU

Mechanical characteristics:


Using the screw on the back
Front panel:
IP65 with seal (front USB connector IP65)
  Operating temperature: 32 až 122 ° F (0 až 50 °C)
  Storage temperature: - 4 až 158 ° F (-20 až 70 °C)
  Humidity: 85% relative humidity, non-condensing
  Weight: 1,43 libry. (650 g)

Approval and certification:


CE marking:
Own certification according to valid standards
Agency approval:

Indicator power supply:


Network power consumption:
Low power version:
100 až 240Vac, 50 / 60Hz přepínání
20 až 48 Vac 50 / 60Hz 25VA nebo 22 až 65Vdc 12W
  Power consumption: 15VA, max
Transmitter power supply:
24Vdc up to 400Ω min, 60mA drive for 2 or 4-wire mA transmitters




Certification Approval


EU Declaration of Conformity

ISO 9001:2015

EAC - The Eurasian Conformity mark

UL Approval
