830 | 850 | 860

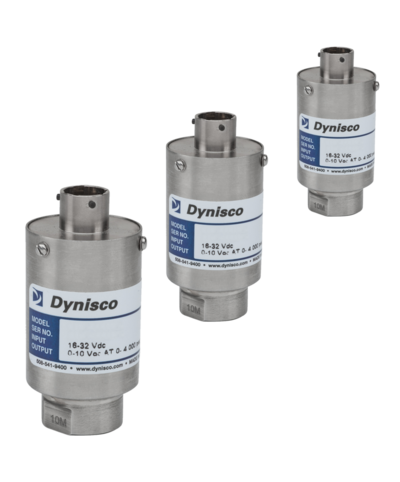

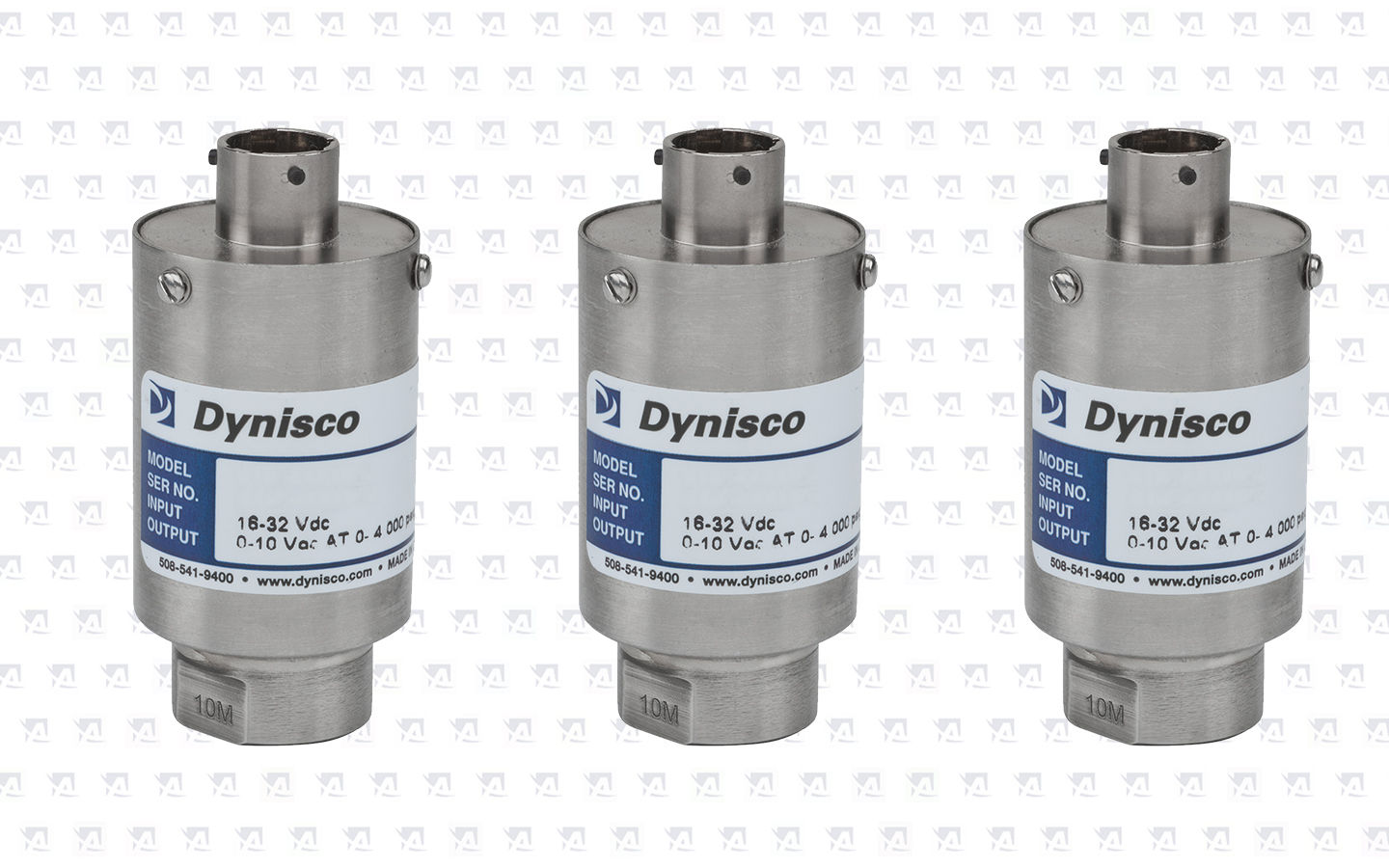

Models 830, 850 and 860 are sensors for general use, offering flexible design and accuracy of pressure measurement ± 0.50% of full range. The optional configuration allows users to specify pressure ranges, mounting connections and output signals that meet specific application requirements. The compact sensor ensures reliable operation in a wide range of industrial applications.
PT 830 | 850 | 860 - Industrial - pressure sensor - Dynisco
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
od 100 psi do 30 000 psi
|
|
|
Accuracy:
|
± 0.5% FSO, (Including linearity, repeatability and hysteresis)
|
|
|
Overload capacity:
|
1.5 x total sensor range
|
|
| Sensor diaphragm: | 17 - 4 PH, 15 - 5 PH stainless steel | |
| Sensor connection: | 1/8-27 NPT | |
| Pressure fuse: | 100 to 250 psi: 10x nominal pressure 500 to 3,000 psi: 5x nominal pressure 5000 to 10000 psi: 3x nominal pressure 15,000 to 30,000 psi: 2.5x nominal pressure |
|
| Sensor construction: | Sensor measuring head without process adapter | |
| Weight: | 850/860: 480g 830: 370 uncí |
TEMPERATURE CHARACTERISTICS
|
Operating temperature range:
|
830: -54°C až +120°C
850/860: -29°C až +85°C
|
|
|
Zero shift (due to temperature):
|
830/850/860: ±0.018% FSO/°C
Standard ± 0.036% FS / ° C maximum |
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Compensated range: | 830/850/860: -18°C až +66°C | |
| Zero shift (due to electronics temperature): |
830: ±0.018% FS/°C 850/860: ±0.036% FS/°C |
ELECTRICAL CHARACTERISTICS
|
Napájení:
|
830: 10 Vdc recommended, 15 Vdc maximum
850: ± 12 to ± 16 Vdc, 24 to 32 Vdc 860: ± 14 to ± 16 Vdc, 24 to 32 Vdc |
|
|
Výstupní signál:
|
830: 3 mV/V ±2.0%
850/860: 5 Vdc/10 Vdc |
|
|
Nastavení nuly:
|
830: ± 3% FSO
850/860: ± 5% FSO |
|
| Konektor: | 6 PIN konektor Bendix | |
| Izolační odpor: | 830: 1,000 megaΩ @50 Vdc 850/860: 100 megaΩ @50 Vdc |
|
| Odporová kalibrace (R-Cal): | 30/850/860: 80% ± 0,5% FSO (typické) 80% ± 1% FSO (max) | |
| Vstupní proud: | 850/860: 45 mA (maximum) @ 2K zatížení |
ROZMĚRY SNÍMAČE:
|
|
