PT199 Pressure sensor

PT199 Pressure sensor

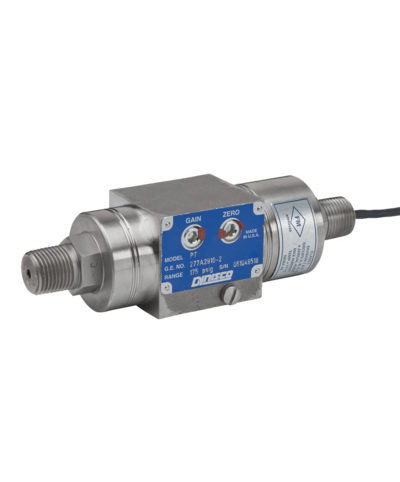

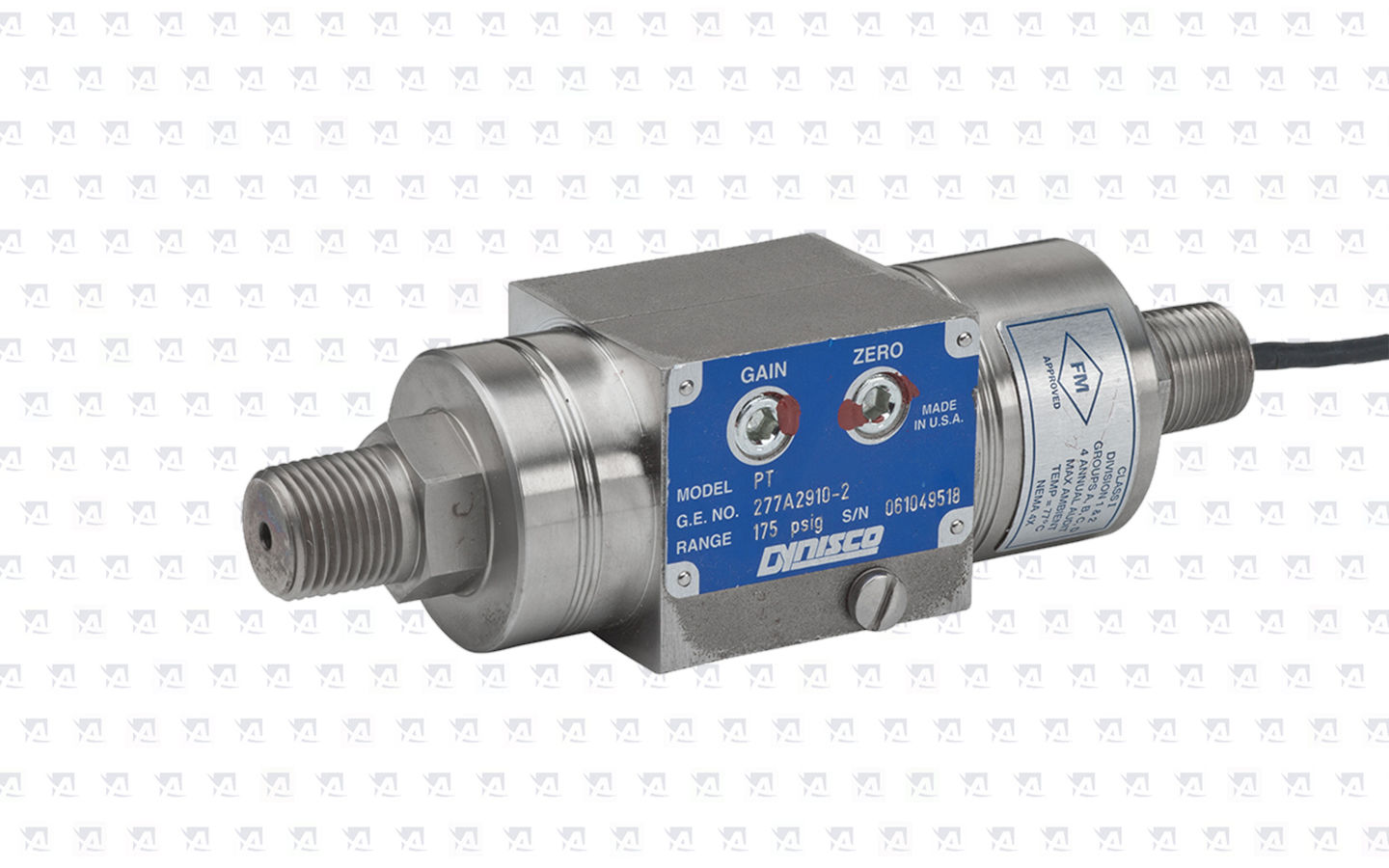

The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.

PT199 Pressure sensor

PT199 Pressure sensor

PERFORMANCE CHARACTERISTICS


Pressure range:
0-15 psi to 0-1500 psi

Accuracy:
± 0.25% FSO, (Including linearity, repeatability and hysteresis)

Overload capacity:
2 x nominal pressure
Sensor diaphragm: 15-5 SS
Sensor connection: 1/2 "NPT male thread or 3/8" pipe
Pressure fuse: with fuse 6 x total sensor range. max 3000 bar
Sensor construction: Sensor measuring head without process adapter
construction material 303, 304 stainless steel

TEMPERATURE CHARACTERISTICS


Max. sensor temperature:
76.7°C maximum

Zero shift (due to temperature):
It depends on the range

-------------------------------------------
------------------------------------------------------------------
Max. sensor body temperature: 80°C
Zero shift (due to temperature): It depends on the range
Displacement sensitivity (due to temperature): It depends on the range

ELECTRICAL CHARACTERISTICS

Power supply:
10 Vdc recommended, maximum 15 Vdc
± 12 Vdc for explosion-proof units approved
FM 28 Vdc max.
Output signal:
4-wire 0-5 Vdc
Konektor: 3/8 FLARED TUBE FITTING PER MS33656-6, 4 CONDUCTOR CABLE 40 in [102 cm ] MINIMUM LENGTH

SENSOR DIMENSIONS:



Certification & Approval

EU Declaration of Conformity

ISO 9001:2015

EAC - The Eurasian Conformity mark

GOST Approval

RoHS Compliance Fact Sheet

Safety Integrity Level - SIL2
