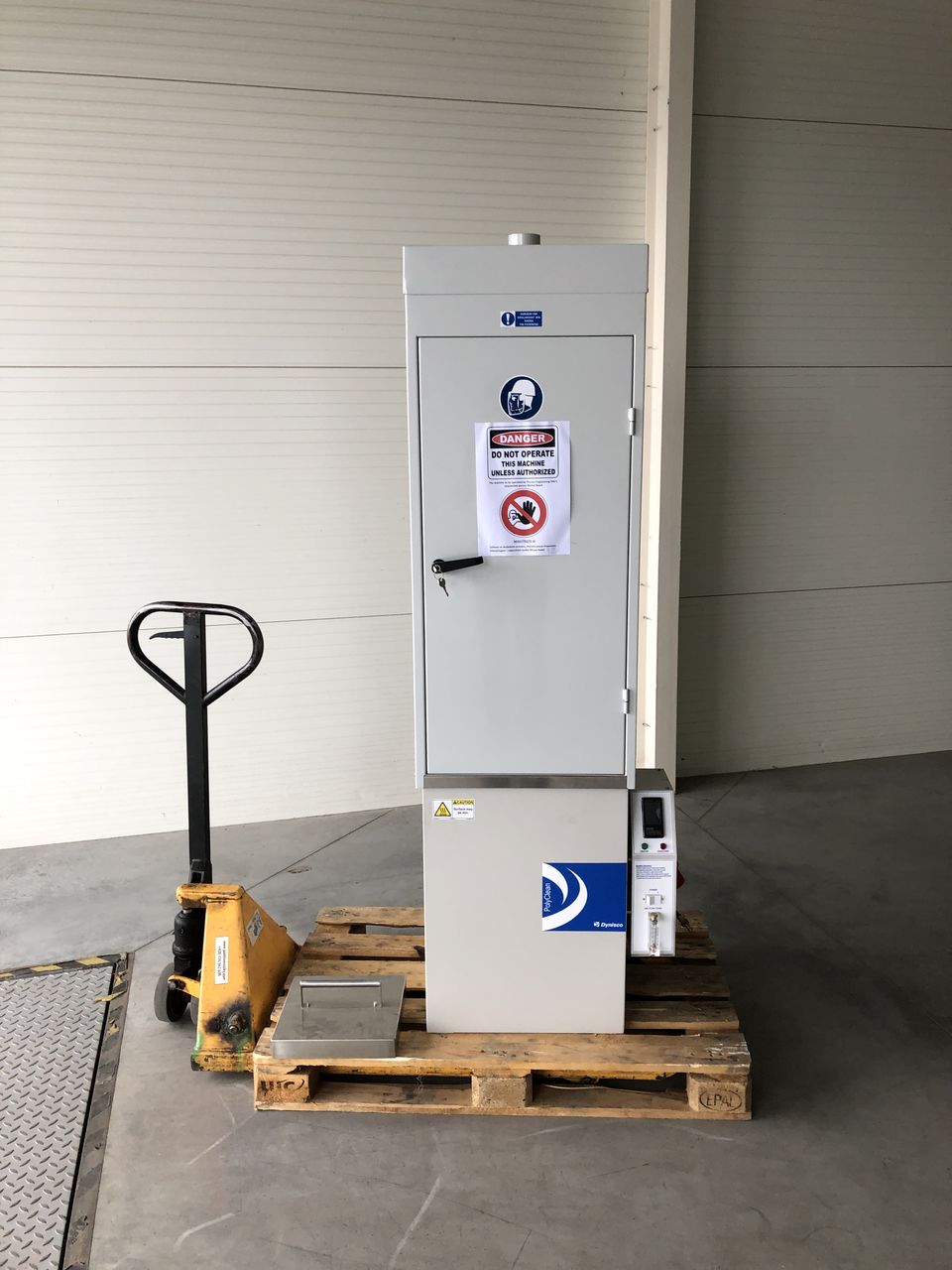

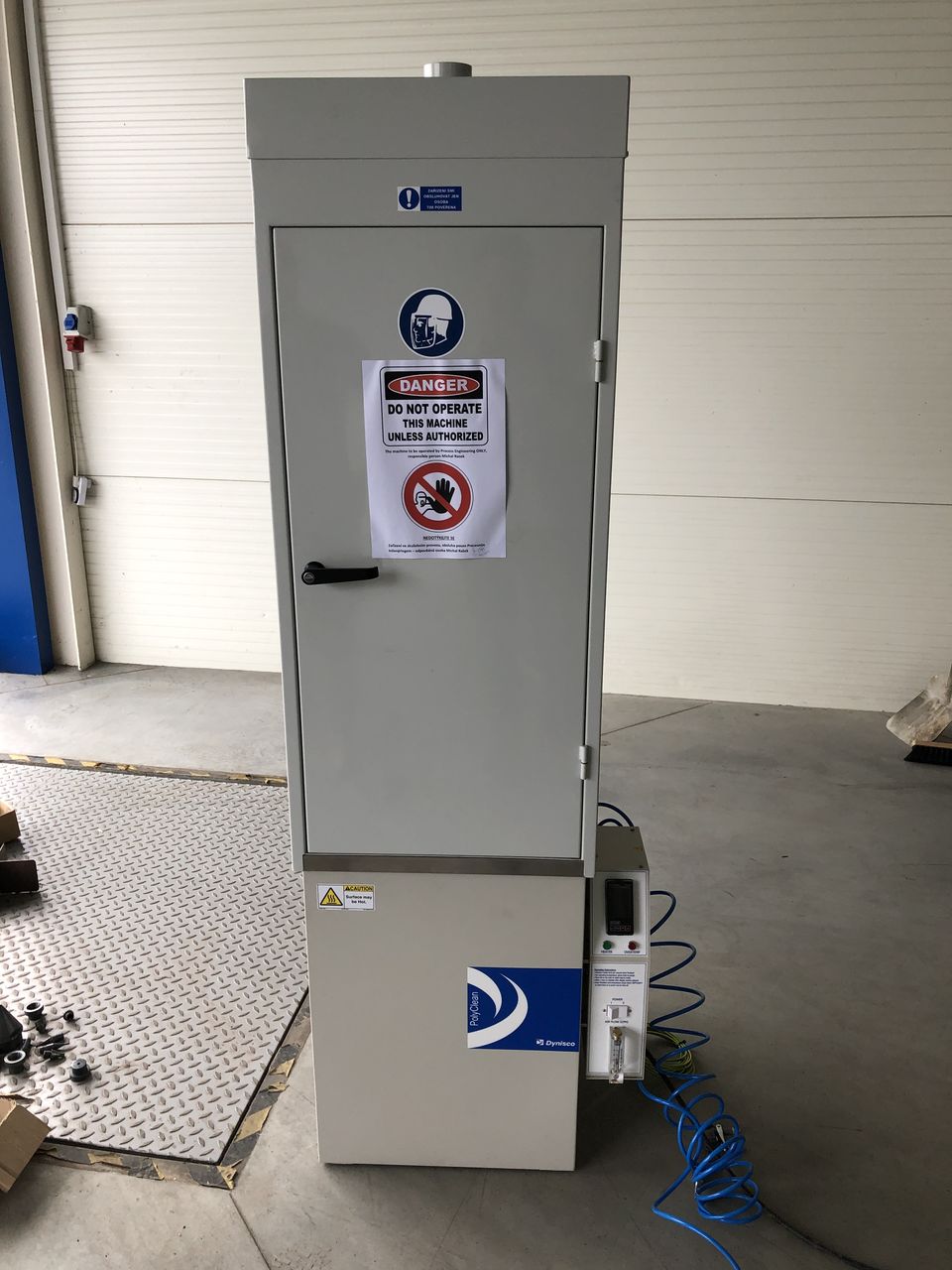

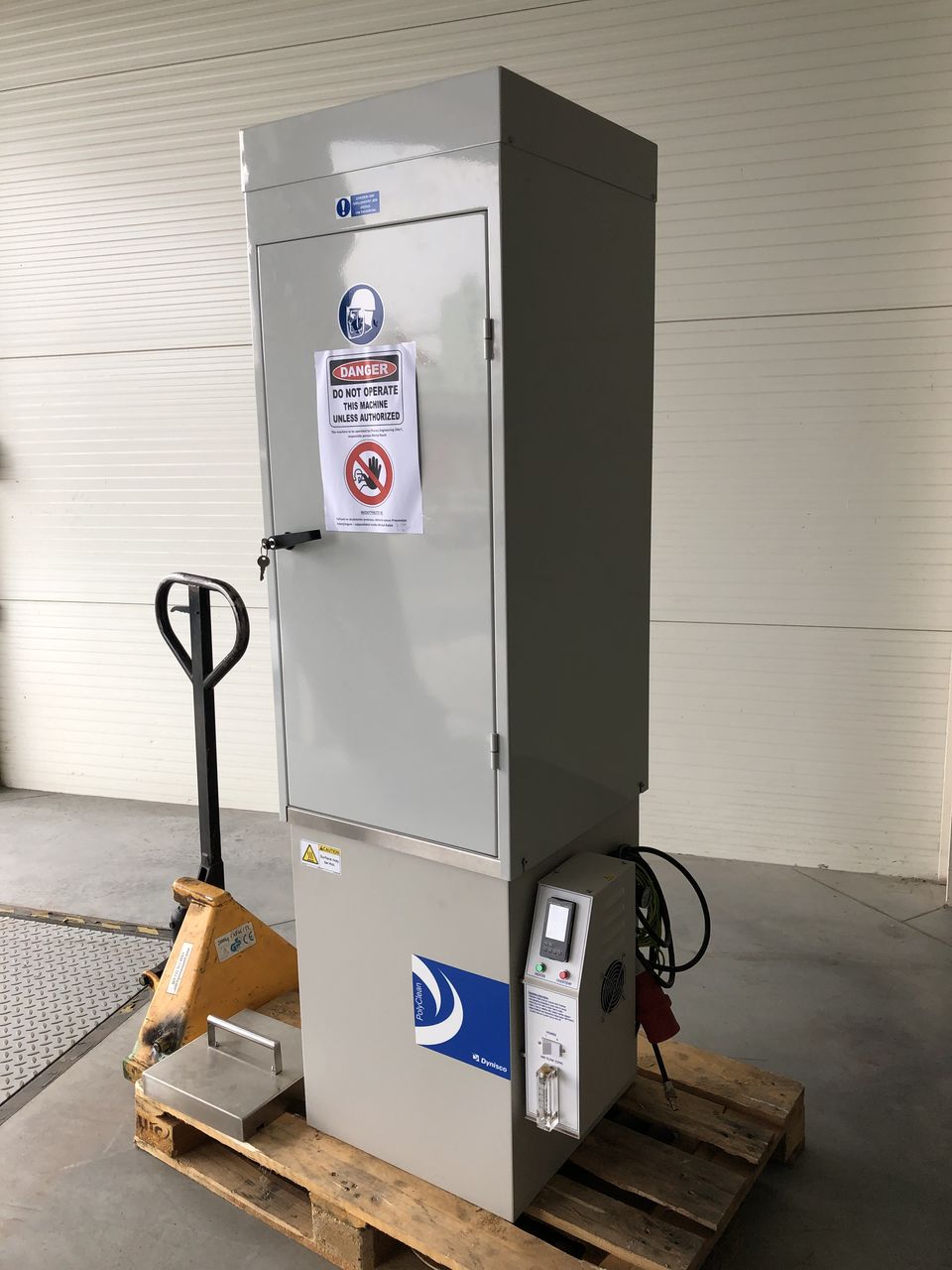

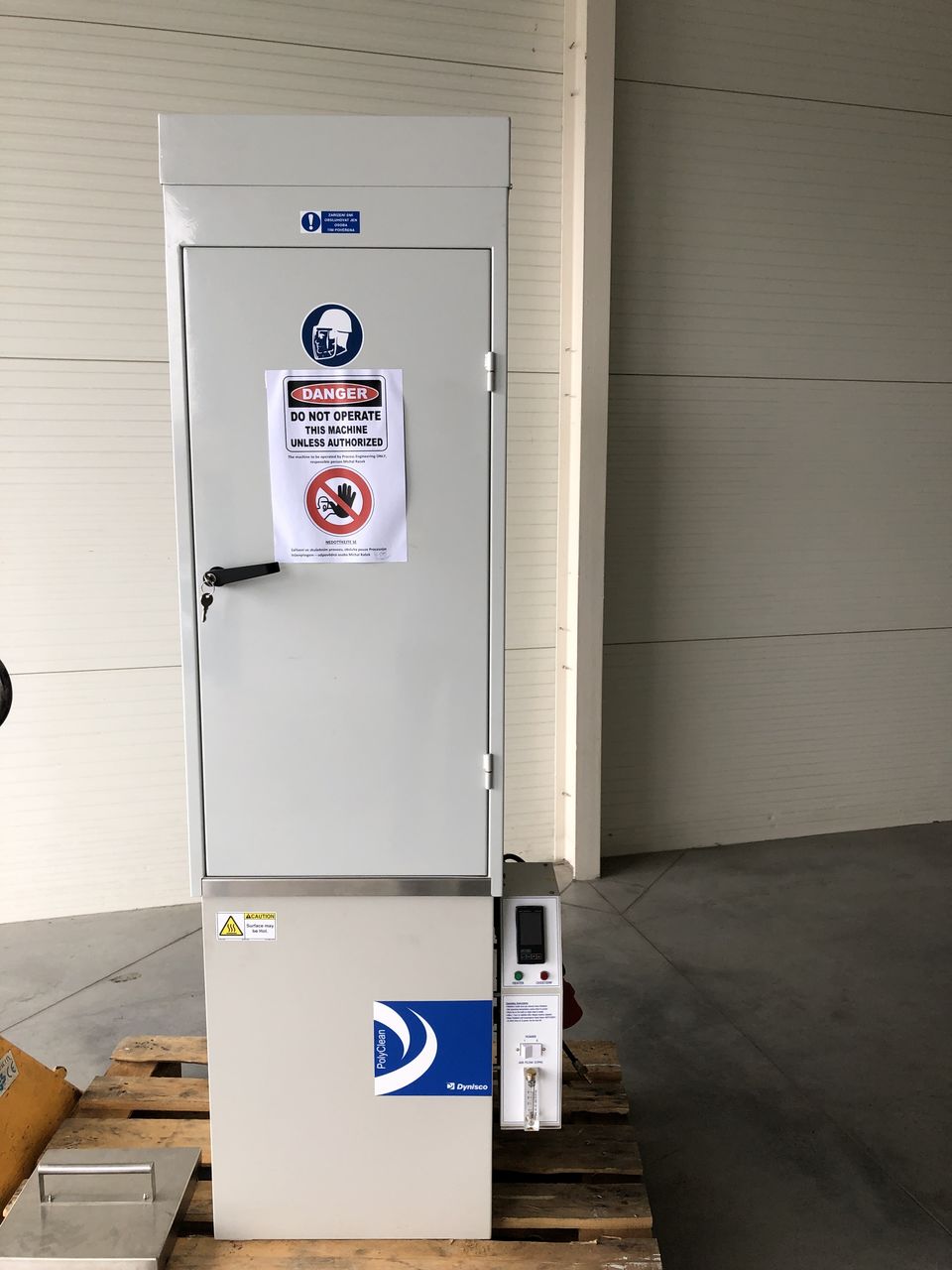

PolyClean with smoke screen
Custom-made smoke screen for polyClean12L "device. The system is fully functional and of course under warranty. Several tests have been performed. The device includes a basket for inserting parts. Adapter for pressure sensors. Air hose with regulation and air gun for cleaning (exhaust) polymer residues The system must be connected to a 380V / 32A socket (5-pin) and to a source of compressed air (fixed distribution or compressor with storage tank. Smoke extraction must be ensured (temperature 20-40 ° C).

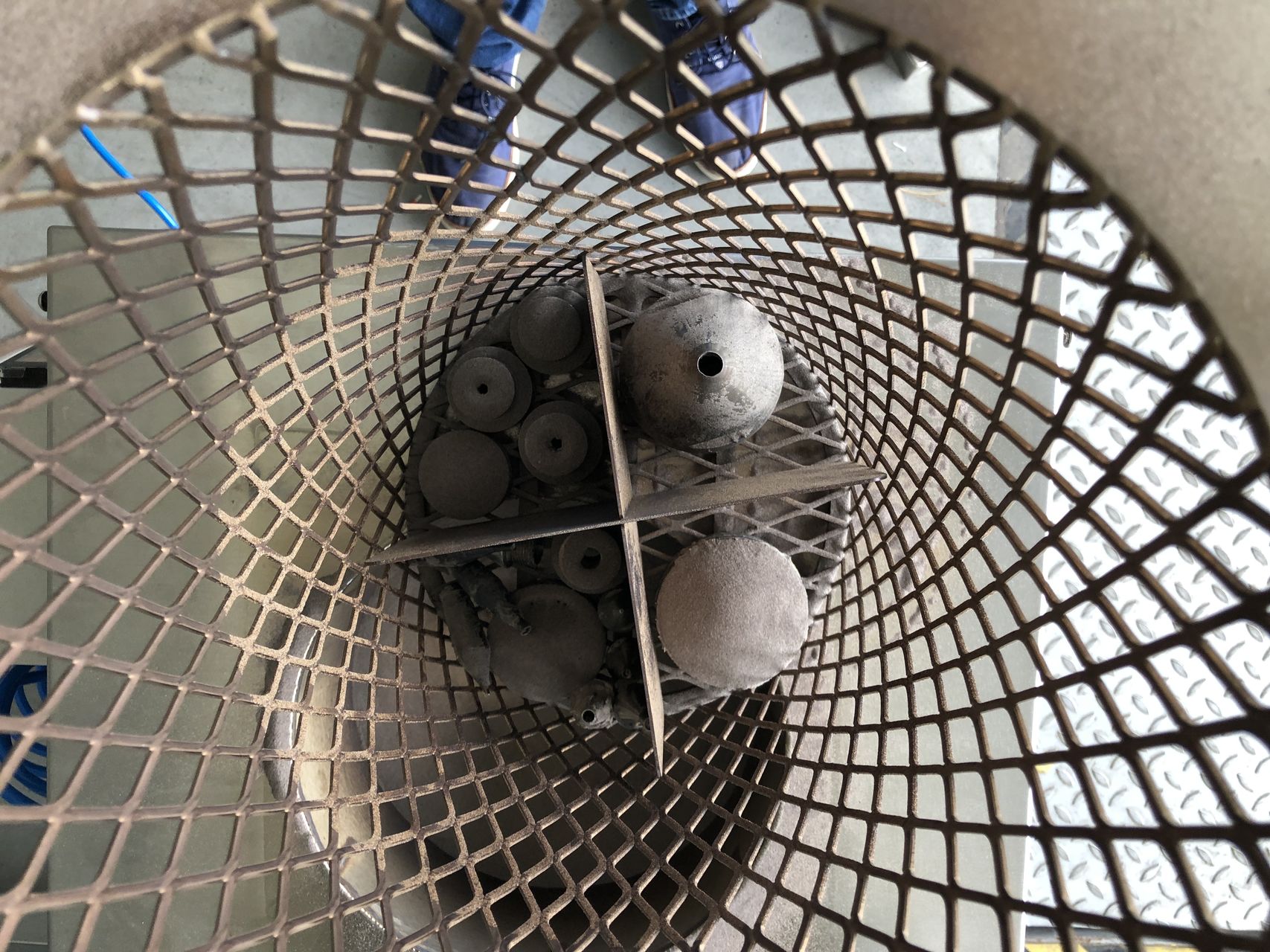

The cleaned parts are simply placed in a basket and immersed in a fluid medium. The device takes care of cleaning the parts with a high temperature and without access to oxygen (no burning). The method is not abrasive and there is no material removal.
PolyClean with smoke screen
PolyClean with smoke screen
PolyClean with smoke screen
PolyClean with smoke screen
PolyClean with smoke screen
PolyClean with smoke screen
PolyClean with smoke screen
PolyClean with smoke screen
PERFORMANCE CHARACTERISTICS:
|
Temperature range:
|
50 ° C to 605 ° C
|
|
|
Working dimensions (baskets):
|
68cm x 60cm x 53cm
|
|

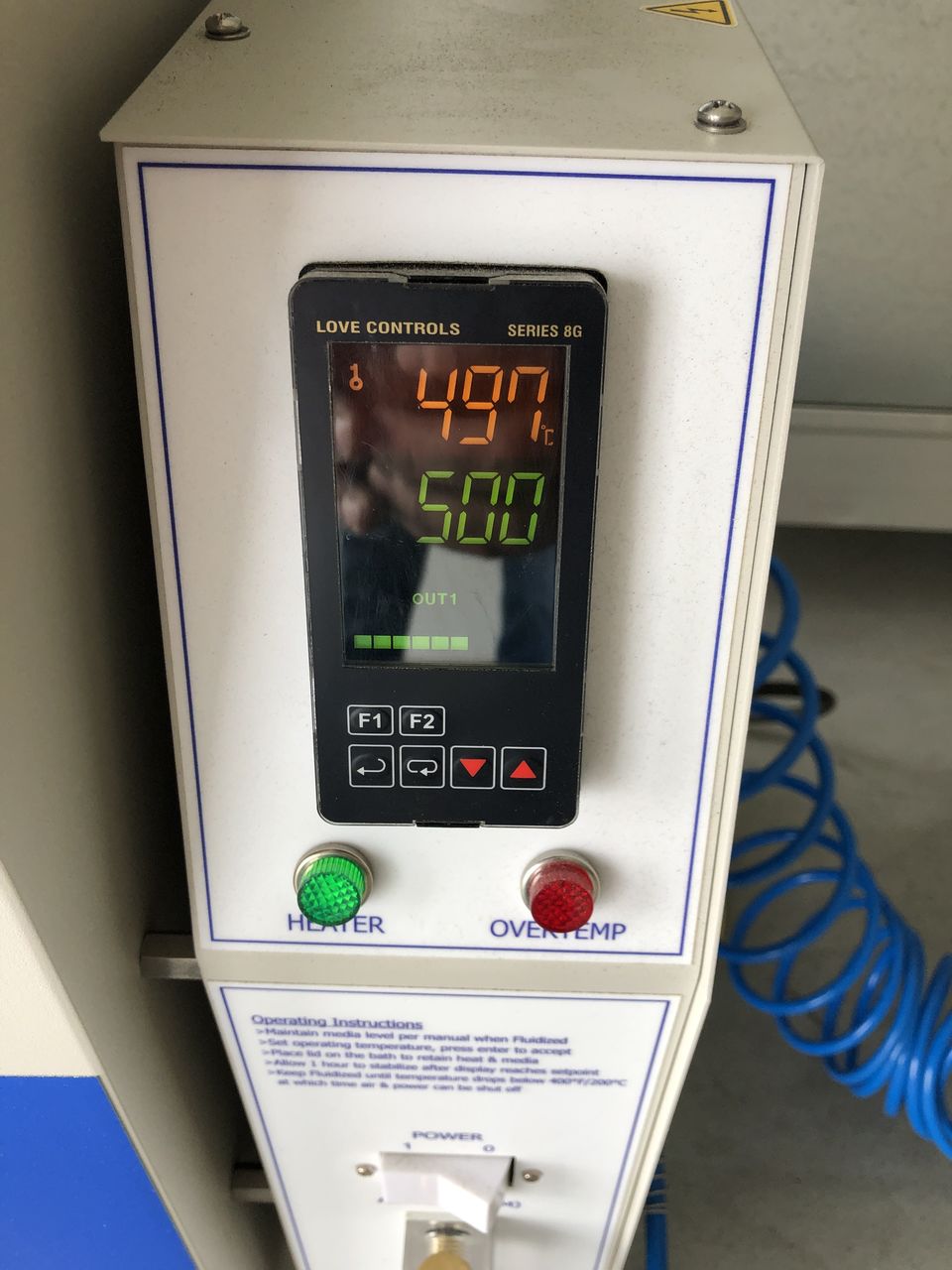

| Temperature stability at 500 ° C | ±1.0°C | |
|
Calibrated accuracy at 500 ° C
|
±5.0°C
|
|
| Uniformity of radial temperature at 500 ° C | 3.0 | |
| Heating time: medium to 600 ° C | 150 minute | |
| Power consumption | 4.5 kW (240 V, single phase) | |
| Working average | 24 cm | |
| Working depth | 31 cm | |
| Work surface in the basket (diameter x depth) | 22,5cm x 30 cm | |
| Maximal load capacity | 12 Kg | |
| Required air pressure | 40 PSI | |
| Maximum air consumption | 3.5 SCFM | |
| Total weight of the unit without media | 50 Kg | |
| Operating weight with medium | 95 Kg | |
| Cleaning capacity | 11 Kg | |
| Cooling time: up to 200 ° C | 150 minutes |
ČISTÍCÍ MEDIUM:
|
Standard cleaning medium:
|
Aluminum oxide13 lbs. (5.9 Kg) |
Certification Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
RoHS Compliance Fact Sheet |
