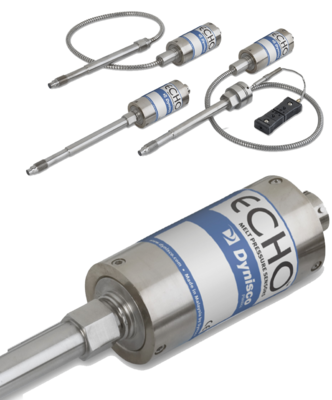

Characteristics of the MDA ECHO

The ECHO series is a low-cost variant for applications that do not require the highest accuracy and reliability. These sensors cannot be optionally specified as other model series, it is a quality alternative with a fast delivery time.
New with the possibility of mercury-free NAK.

Contact us, we will be happy to help you with the configuration.


Output signal

Power supply

Pressure range

Units

3.33 mV/V

10 - 12 Vdc

100 - 700

Bar

4 - 20 mA

14 - 30 Vdc

1.5M - 10M

PSI

0 -  5  Vdc

16 - 30 Vdc

10 - 70

MPa

0 - 10 Vdc

16 - 30 Vdc

 100 - 700

Kg/cm2


ECHO (NaK) Series

Mercury-free design. ECHO sensors represent a low-cost solution for common applications.


Power supply according to configuration as well as output signal (mV / V - mA - Vdc). Membrane made of 17-4 PH SST material.

Signal according to configuration

6 Pin connector

± 0.50% scanning accuracy

Shunt calibration

Mercury-free filling

ECHO Series

ECHO sensors are a low-cost solution for common applications.


Power supply according to configuration as well as output signal (mV / V - mA - Vdc). Membrane made of 17-4 PH SST material.


Signál dle konfigurace

6 Pin konektor

±0,50% přesnost snímání

Shunt kalibrace
