Characteristics of the PT Series

All sensors in this series can be configured. Optional accessories offer a more resistant membrane against abrasive, aggressive materials or without mercury filling and much more.
Contact us, we will be happy to help you with the configuration.


TPT models are the same as PT, however are equipped with temperature sensors in the form of a thermocouple. J, K, T, E or PT 100 thermocouples are available.

Output signal

Sensor power supply

Pressure range

Units

Signal converter

10 - 12 VDC

0 - 30 000

PSI


PT46X6 Series

PT 4606 - Sensor with rigid stem
PT 4626 - Sensor with rigid stem and flexible stem
TPT 4636 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



The PT46X6 Series transmitter is a ±0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X6 transmitters provide the industry standard 0 - 10 Vdc amplified signal designed to work with DCS and PLCs, 1 - 11 Vdc outputs are also available.

Adjustability locally

Accuracy better than ±0.5%

Output signal 0 - 10 Vdc / 1 - 11 Vdc

Range 0-500 to 0-30,000 psi

Internal 80% R-CAL

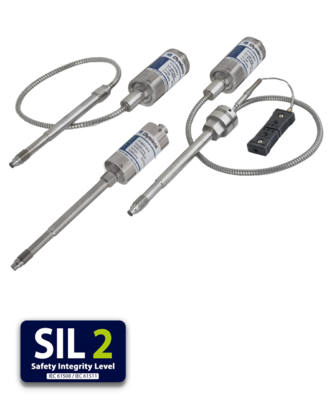

PT46X4 Series

PT 4604 - Sensor with rigid stem
PT 4624 - Sensor with rigid stem and flexible stem
TPT 4634 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



The PT46X4 Series pressure sensor is a ±0.5% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability. The PT46x4 sensor provides the industry standard 4-20 mA amplified signal designed to work with DCS and PLCs.

Adjustability locally and remote

Accuracy better than ±0.5%

Output signal 0 - 5 Vdc / 1 - 6 Vdc

Range 0-500 to 0-30,000 psi

Internal 80% R-CAL


PT46X5 Series

PT 4605 - Sensor with rigid stem
PT 4625 - Sensor with rigid stem and flexible stem
TPT 4635 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



The PT46X5 Series transmitter is a +/- 0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X5 transmitters provide the industry standard 0 - 5 Vdc amplified signal designed to work with DCS and PLCs, 1 - 6 Vdc outputs are also available.

Adjustability locally

Accuracy better than ±0.5%

Output signal 0 - 5 Vdc / 1 - 6 Vdc

Range 0-500 to 0-30,000 psi

Internal 80% R-CAL


EPR4 Push Rod Sensors

The EPR4 series are sensors with ± 0.5% accuracy ideal for food or medical applications requiring easy installation, repeatability and reliability. Technology Push Rod design is especially suitable for food or medical applications with the possibility of filled systems. EPR4 provide an industry standard in the form of an amplified 4-20 mA signal designed to work with DCS and PLC. The EPR4 model is available in various pressure variants.

Better than ± 0.5% accuracy

Fixed rod construction

Usable up to 400 ° C

Welded stainless steel construction

4-20 mA output signal

Internal calibration 80%


EPR3 Push Rod Sensors

The high-temperature EPR3 melt pressure sensor from Dynisco is offered as an alternative to the PT420 and PT460 series. The solid rod design is suitable for applications where the use of a filling medium may not be appropriate, such as applications for the food and pharmaceutical industries and the production of photographic films.
The EPR3 model is available in various pressure variants.


Better than ± 0.5% accuracy

Fixed rod construction

Usable up to 400 ° C

Welded stainless steel construction

Internal calibration 80%


PT375 Pressure Transducer

The Dynisco PT 375 pressure transmitter is designed for applications requiring a zero volume pressure port, fast response time and strict cleanliness standards. The high-pressure metal-to-metal seal offers reliable pressure measurement of sludges, viscous liquids and other media that can be homogenized.

3 mV / V in full

Accuracy ± 0.50%

Range 0-1000 to 0-30,000 PSI

Membrane material Iconel 718

Zero volume pressure port

Meets standards for cleaning

Metal-to-metal pressure seal

Internal calibration 80%


PT311JA Pressure sensor

The Dynisco PT311JA Washable Pressure Sensor is designed for applications requiring a zero volume pressure port. The recessed diaphragm improves the frequency response. The PT311JA has a full 3 mV / V output signal and offers reliable and accurate pressure measurement of gases, viscous liquids.

Front membrane

Accuracy ± 0.50%

Zero volume pressure port

15 to 10,000 psi

Output signal 3 mV/V

Internal calibration


PT303 Pressure sensor

The Dynisco PT303 pressure transmitter is designed for all pressure applications in potentially explosive atmospheres. With high performance and a wide range of pressures, it offers trouble-free operation and flexibility to suit all your requirements.

Accuracy ± 0.25%

Stainless steel construction

Powerful and durable construction

Ranges from 110 PSI to 750 PSI


PT199 Pressure sensor

The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.

Accuracy ± 0.25%

Stainless steel construction

Adjustable zero and upper range

Excellent temperature compensation

Ranges 0-15 PSI to 0-15000 PSI

Advanced electronic design

Internal calibration


PT139 | PT139A

Dynisco PT139 and PT139A pressure sensors are designed to measure hydraulic pressure in extreme conditions for testing vehicles, stands and other hydraulic and pneumatic applications. These sensors withstand cyclic pressure and provide excellent performance during demanding industrial conditions.

Full power 3 mV/V

Accuracy better than ± 0.5%

The pressure range is from 0-15 PSI to 0-10,000 PSI

Pressure and vacuum support

Extended operating temperature range

Fully welded stainless steel construction

It resists strong shocks and vibrations

Internal 80% calibration

CE approval


PT 4656XL

PT 4656XL - Melt pressure sensors for injection molding applications

The PT4656XL models are ideal for measuring melt pressure in a nozzle or manifold for injection applications. The flexible capillary extends from its electronics housing to the installed tip in the machine melt, which guarantees unrivaled strength and extended sensor life.

1 "bending radius

Inconel 718 membrane

Cap nut for easy installation

Scanning accuracy ± 0.5%

Usable up to 400°C

Zero and range calibration

Optional output signal

PT 4655XL

PT 4655XL - Melt pressure sensors for injection molding applications


The PT4655XL models are ideal for measuring melt pressure in a nozzle or manifold for injection applications. The flexible capillary extends from its electronics housing to the installed tip in the machine melt, which guarantees unrivaled strength and extended sensor life.

1 "bending radius

Inconel 718 membrane

Cap nut for easy installation

Scanning accuracy ± 0.5%

Usable up to 400°C

Zero and range calibration

Optional output signal
