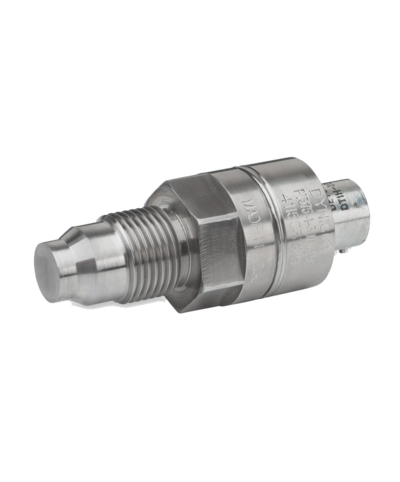

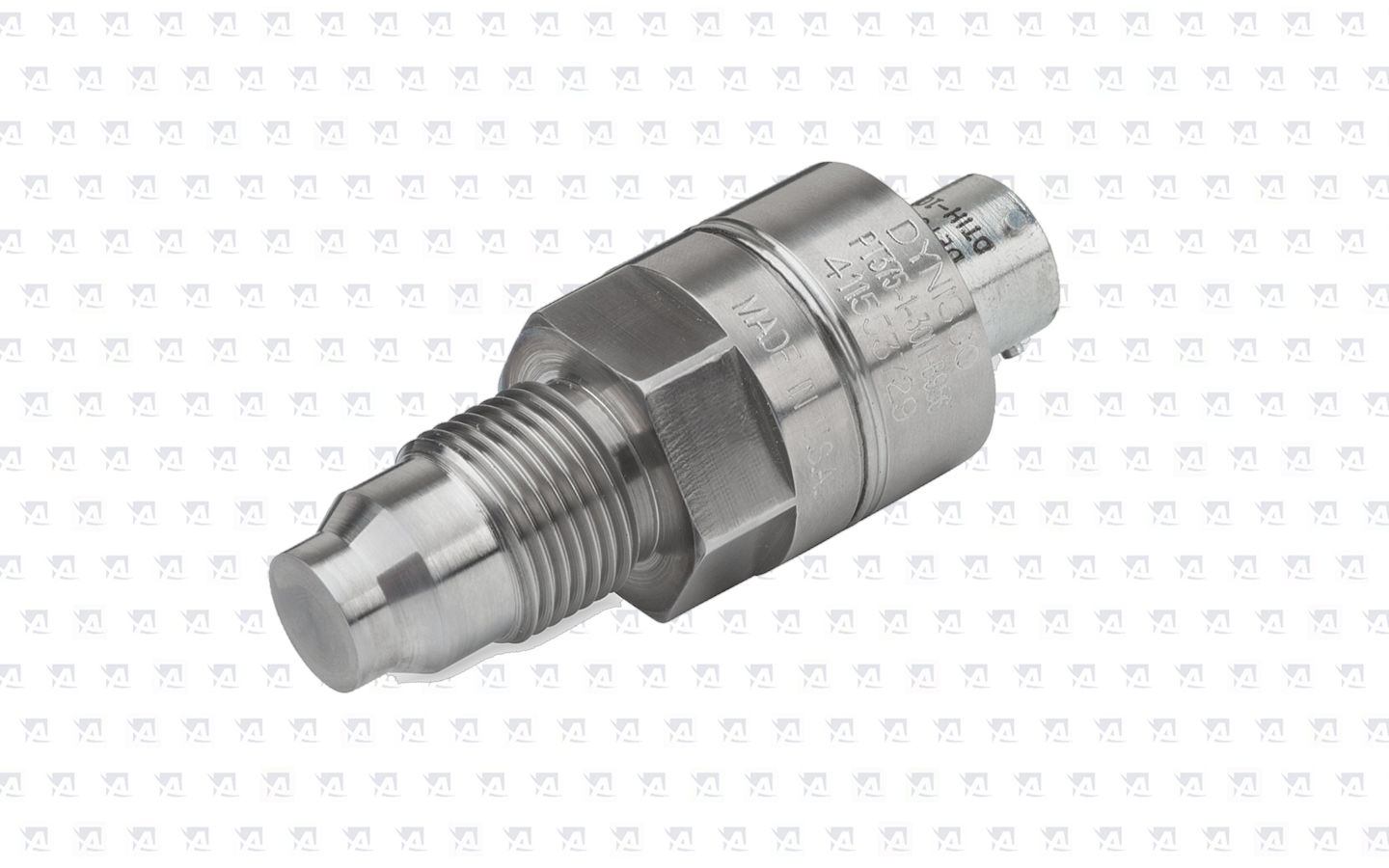

PT375 Pressure Transducer
The Dynisco PT 375 pressure transmitter is designed for applications requiring a zero volume pressure port, fast response time and strict cleanliness standards. The high-pressure metal-to-metal seal offers reliable pressure measurement of sludges, viscous liquids and other media that can be homogenized.
PT375 Pressure Transducer
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
from 1000 psi to 30,000 psi
|
|
|
Accuracy:
|
± 0.5% FSO, (Including linearity, repeatability and hysteresis)
|
|
|
Safe overpressure:
|
1000 - 15,000 psi: 2 x nominal pressure
20,000 - 30,000 psi: 1.3 x nominal pressure |
|
| Burst pressure: | 1000 - 15,000 psi: 3x nominal pressure 20,000 - 30,000 psi: 2x nominal pressure |
|
| Sensor diaphragm: | Inconel 718 | |
| Sensor connection: | 1/2"-20 UNF , M14 x 1.5 , M18 x 1.5 , M22 x 1.5 | |
| Mounting torque: | 1000 - 10 000 psi: 50 ft./lb. 15 000 - 30 000 psi: 100 ft./lb. |
|
| Sensor construction: | 303, 304 stainless steel |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
-54 ° C to + 120 ° C
|
|
|
Compensated range
|
-18 to + 120 ° C
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Max. sensor body temperature: | 120°C | |
| Zero shift (due to temperature): | 0.018% full range /°C | |
| Range shift (due to temperature): | ± 0.036% full range /°C |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
10Vdc recommended, 12Vdc max
|
|
|
Output signal:
|
3 mV/V ±2%
|
|
|
Zero setting:
|
Zero Balance: ± 2% FSO
|
|
| Connector: | 6 Bendix PIN connector | |
| Insulation resistance: | 1,000 megohmu @ 50 Vdc | |
| Resistance calibration (R-Cal): | 80% of duty. range ± 0.50% of the total range |

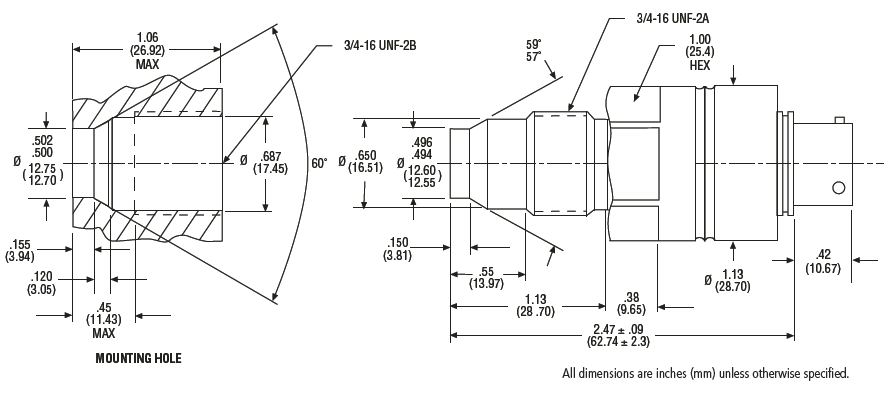

ROZMĚRY SNÍMAČE:
Certification & Approval
 |
EU Declaration of Conformity for Flush Mount mV/V Output |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
GOST Approval |
 |
RoHS Compliance Fact Sheet |
 |
Safety Integrity Level - SIL2 |
