TB422J
The design of the temperature sensor is designed to reduce friction between the melt and the sensor body as much as possible. The temperature sensor is able to withstand high pressures up to 1000 bar and can be ordered in variant J or K. You also have a choice of two types of sensor ends (flat or conical shape).

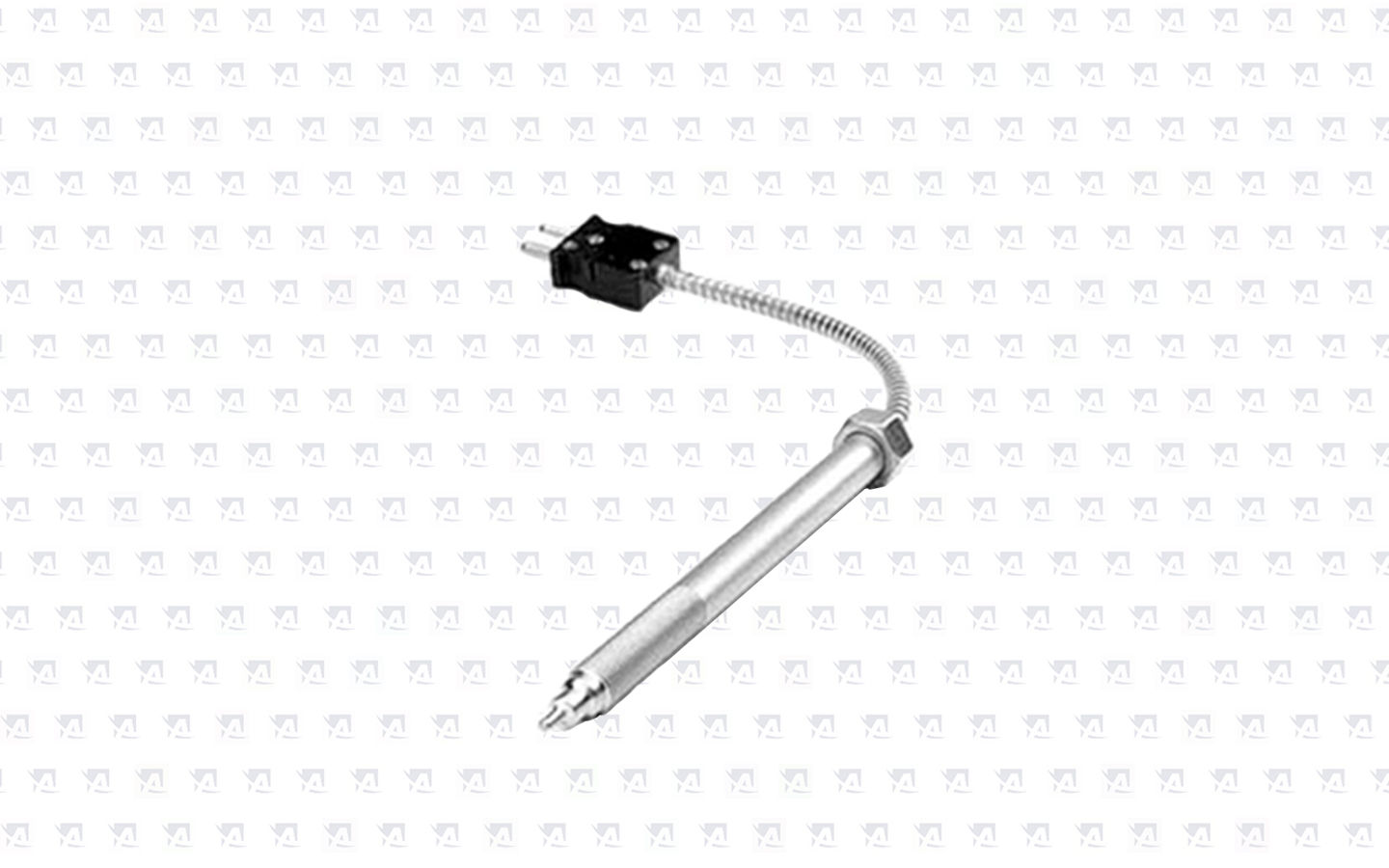

TB422J - Temperature sensor Dynisco

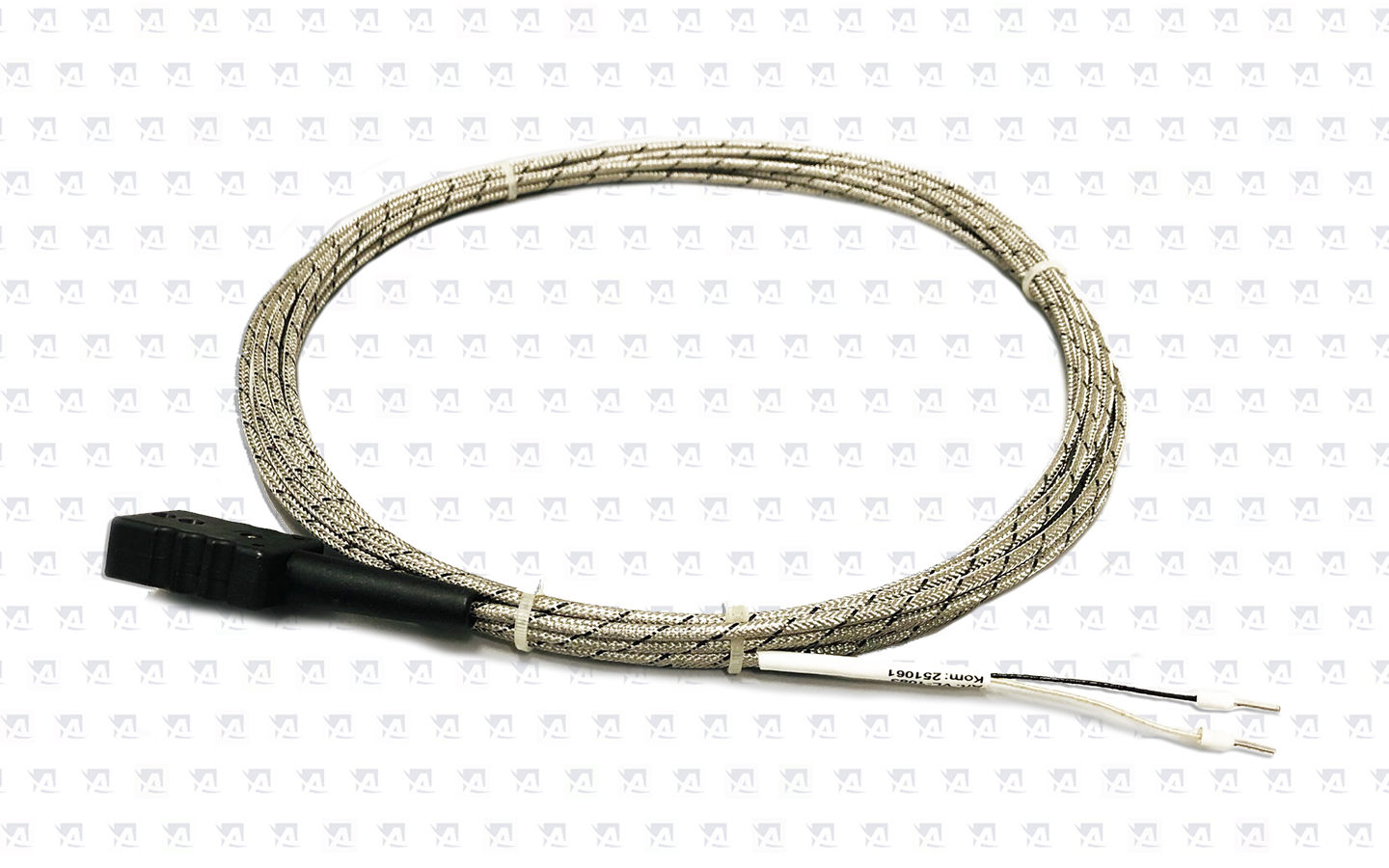

Teplotní kabeláž k teplotnímu snímači

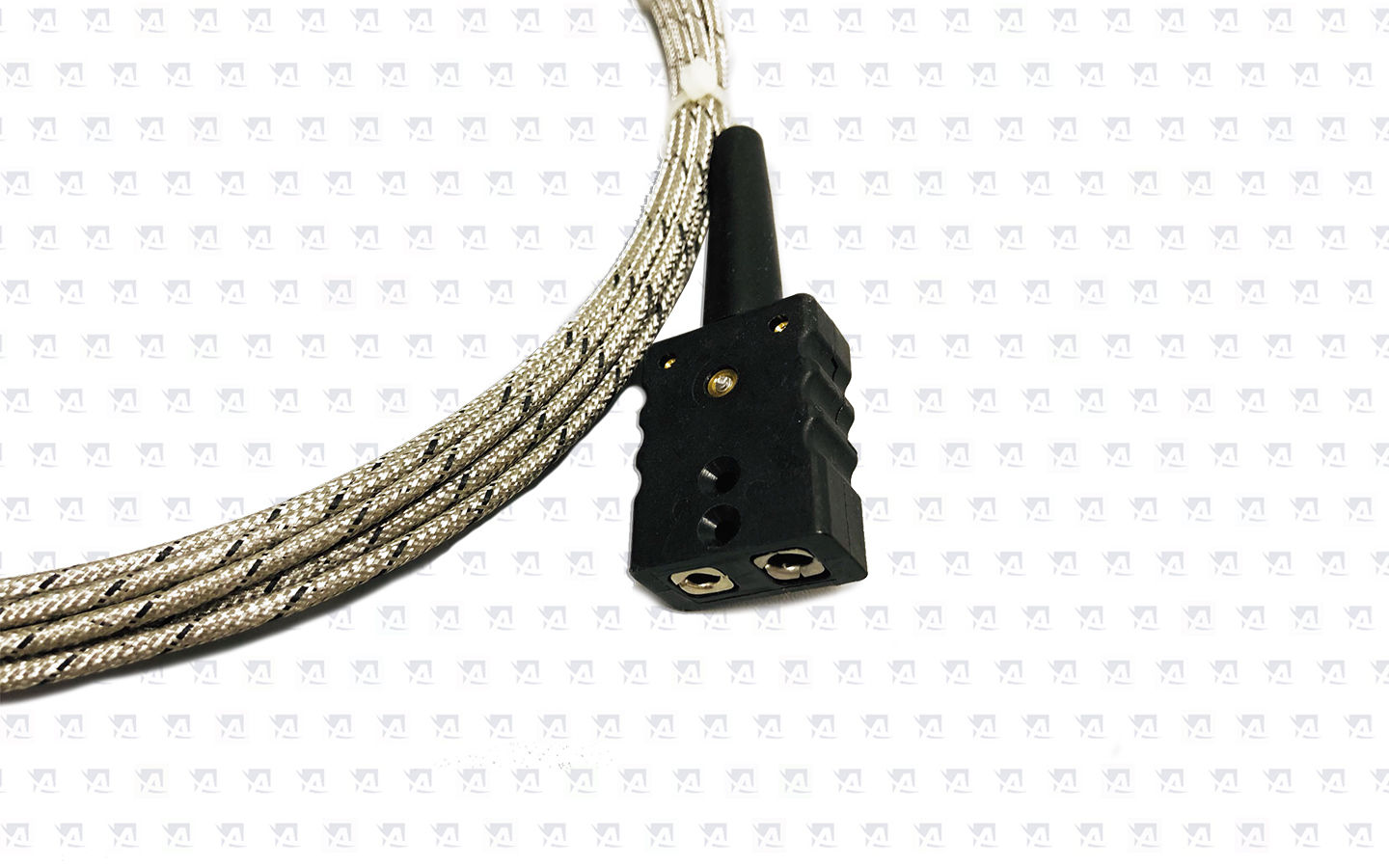

Teplotní kabeláž k teplotnímu snímači
Teplotní kabeláž k teplotnímu snímači
Inquiry system
Configure your own product, according to your requirements and needs. If you are not sure about the configuration, tell us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know, we will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have the necessary product the next day.
Konfigurační kód
Melt Thermocouple for Extruder Barrel Measurements
Melt Temperature Probe Series TB422J
Dynisco’s model TB422J melt temperature thermocouple is used to measure the melt temperature of the plastic as it moves down the extruder barrel. Constructed with a fiberglass insulated element, the rugged stainless steel probe is interchangeable with Dynisco’s extrusion pressure transducers for easy installation. Dynisco’s melt temperature thermocouples are designed and manufactured to applicable ISA standards with accuracy traceable to the National Institute of Standard Technology (NIST).
Features
Sensor extends into process
Type J thermocouple output
1/2 - 20 UNF mounting
0 to 900°F range
Flush to 1" immersion lengths
Better measurement
Standard output
Fits in standard thermowell
Wide range of measurements
Immersion lengths to match applications
Ordering Guide for TB422JSeries
TB422J - Dimensions
All dimensions are inches (mm) unless otherwise specified.
