Model 591 Detachable level sensor

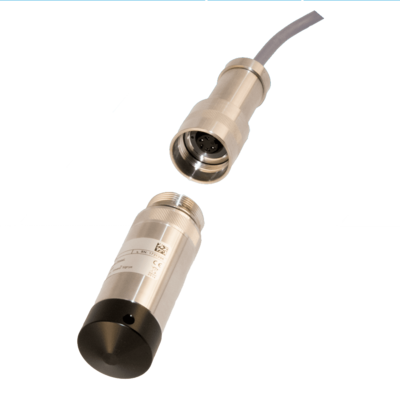

The Model 591's high-accuracy removable level sensor allows quick replacement of the sensor without removing the installed cable. No special tools are required. Simply pull out the sensor, rotate the sensor coupling sleeve until it no longer locks, then simply separate the two halves.
Model 591 is made of stainless steel case and sensor, with polyurethane cable as standard. Various cable materials and o-rings are available.
It is used to measure the level and depth of liquid such as water and waste water, applications in pumping stations, reservoirs and dams, in rivers, in ponds, wells, in underground / above ground reservoirs and with the measurement of reservoir stocks.
Viatran also offers a complete range of accessories for use in application levels such as surge protectors, cable hangers and weights, meters and junction boxes.
Replacement sensor heads and/or cables can be purchased separately
VÝKONNOSTNÍ CHARAKTERISTIKY
| Tlakové rozsahy: | 0 - 40" W.C. up to 0 - 835 Ft W.C. (Or equivalent in Meters or PSI) |
|
| Přesnost [Kombinovaná nelinearita (BFSL), hystereze a opakovatelnost]: | ≤ +/-0.1% FSO | |
| Kompenzovaný teplotní rozsah | 32° to 158° F (0 to 70° C) | |
| Rozsah provozních teplot | -20 až 70 ° C poznámka: Médium nesmí v blízkosti senzoru zamrznout |
|
| Teplota skladování: | -13° to 158° F (-25 to 70° C) | |
| Dlouhodobá stabilita (% FSO) | ≤ +/- 0,1% FSO / rok (za referenčních podmínek) | |
| Tepelný účinek na nulu | ≤ +/- 0.8% FSO per 100° F | |
| Tepelný účinek na rozpětí | ≤ +/- 0.8% FSO per 100° F |
ELEKTRICKÉ CHARAKTERISTIKY
|
Výstupní signál
|
4-20 mA
|
|
|
Napájecí napětí
|
8 -32 Vdc
|
|
|
Regulace napájení
|
< +/- .005% FSO per volt
|
|
| Ochrana obvodů | Chráněno proti přepólování, označení CE | |
| RFI / EMI | CE EMC kompatibilní podle IEC EN 61326 | |
| Ochrana před napětím | Odolejte špičce 1 000 V podle EN 61000 | |
| Doba odezvy | <10 mSec |
KONSTRUKČNÍ MATERIÁLY
|
Housing
|
316L nerezová ocel
|
|
|
Sensor Diaphragm
|
316L nerezová ocel
|
|
|
O-ring Seals
|
FKM (standardní) nebo EPDM (volitelné)
|
|
| Protective Cap | POM (polyoxymethylen) |
MECHANICKÉ CHARAKTERISTIKY
|
Pressure Connection
|
Ochranná čepička POM
|
|
|
Ingress Protection
|
IP 68
|
|
|
Overpressure Limit
|
4x Minimum (>525 Ft. range = 3.2x)
|
|
| Burst Pressure | 5x minimum (>> 525 Ft. Rozmezí = 4,8x) | |
| Weight | 0.9 lbs. (without cable) |
OPTIONS
|
EA
|
Special Calibration Run
|
|
|
PW
|
Calibrate Transmitter with Meter / Display
|
|
|
ZB
|
1/2" NPT Conduit Adapter
|
ACCESSORIES
|
Pipe Saddle with shutoff
|
||
|
Conduit connection box
|
||
|
Calibration text fixture
|
