Industrial series

PT 830 | 850 | 860 - Industrial - pressure sensor - Dynisco

830 | 850 | 860

Models 830, 850 and 860 are sensors for general use, offering flexible design and accuracy of pressure measurement ± 0.50% of full range. The optional configuration allows users to specify pressure ranges, mounting connections and output signals that meet specific application requirements. The compact sensor ensures reliable operation in a wide range of industrial applications.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

PT 830 | 850 | 860 - Industrial - pressure sensor - Dynisco

PT 830 | 850 | 860 - Industrial - pressure sensor - Dynisco

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:

Vaše osobní údaje budou zpracovány podle Podmínek zpracování osobních údajů.

High Accuracy, Simple Installation, Repeatability And Reliability

Interchangeable configuration allows users to specify the pressure range, pressure port and output level that meet specific application requirements. A bonded strain gauge sensor provides reliable operation in a wide range of industrial applications.

The 830/850/860 Series includes models G830, S830, A830, G850, S850, A850, G860, S860, and A860.

⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

830 | 850 | 860 Series


Dynisco models 830, 850, and 860 general purpose transducers offer flexible design and a pressure measurement accuracy of ±0.50% full scale output. Interchangeable configuration allows users to specify the pressure range, pressure port and output level that meet specific application requirements. A bonded strain gage sensor provides reliable operation in a wide range of industrial applications.

Performance Characteristics


Pressure Range: 0 - 30 000 PSI
Accuracy:  ±0.5% FSO including linearity, hysteresis, and repeatability



Electrical Characteristics



Full Scale Output: 830: 3 mV/V ±2.0% 850/860: 5 Vdc/10 Vdc
Input/Output Resistance: 830: 425 ±75 Ohms/375 ±25 Ohms
Zero Balance:  120°C
Zero And Span Adjustment: 850/860: ±5% FSO
Excitation: 830: 10 Vdc recommended, 15 Vdc maximum
850: ±12 to ±16 Vdc, 24 to 32 Vdc
860: ±14 to ±16 Vdc, 24 to 32 Vdc
Insulation Resistance: 830: 1,000 megohms @ 50 Vdc 850/860: 100 megohms @ 50 Vdc
Internal Shunt Calibration: 30/850/860: 80% ±0.5% FSO (typical) 80% ±1% FSO (maximum)
Input Current: 850/860: 45 mA (maximum) @ 2K load

Temperature Characteristics




Operating Range:  830: -65° to +250°F (-54°C to +120°C) 850/860: -20° to +185°F (-29°C to +85°C)
Compensated Range 830/850/860: 0° to 150°F (-18°C to +66°C)
Temperature Effect On Zero:   830/850/860: ±0.01% full scale/°F (±0.018% full scale/°C) typical; ±0.02% full scale /°F (±0.036% full scale/°C) maximum
Temperature Effect On Span: 830: ±0.01% full scale/°F (±0.018% full scale/°C); 850/860: ±0.02% full scale /°F (±0.036% full scale/°C)

Mechanical Characteristics




Safe Overpressure: 1.5 x rated pressure
Burst Pressure: 100 to 250 psi: 10 x rated pressure 500 to 3,000 psi: 5 x rated pressure 5,000 to 10,000 psi: 3 x rated pressure 15,000 to 30,000 psi: 2.5 x rated pressure
Wetted Material: 17 - 4 PH, 15 - 5 PH stainless stee
Cover Material: 303, 304 stainless steel
Weight: 850/860: Approximately 17 ounces; 830: 13 ounces



Ordering Guide for 830 | 850 | 860 Series

830 | 850 | 860 Series - Dimensions

All dimensions are inches (mm) unless otherwise specified.

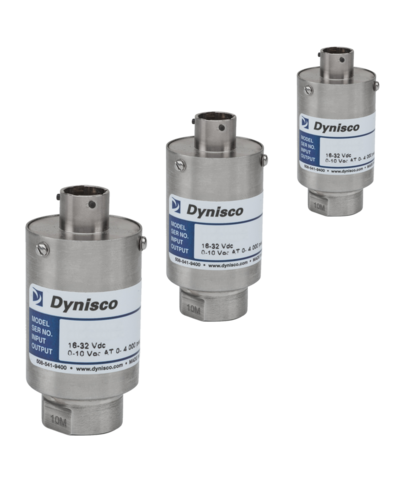

831 | 851 | 861

Models 831, 851 and 861 have universal signal converters with a compact design and pressure measurement accuracy of ± 0.25% of full power range. The optional configuration allows users to select a pressure range, mounting connection and output signal that meets the specific requirements of the application. The adhesive mV sensor ensures reliable operation in a wide range of industrial applications.

832 Model

Dynisco's 832 is a universal sensor for most applications. The sensor offers highly accurate pressure measurement in the range of 0 to 10,000 PSI. Excellent temperature compensation is ensured by high performance in operating environments up to 120 ° C. Its high accuracy and robust design make it ideal for a variety of applications, such as test stands for the automotive and automotive industries up to test equipment for polymer systems.
