Models 831, 851 and 861 have universal signal converters with a compact design and pressure measurement accuracy of ± 0.25% of full power range. The optional configuration allows users to select a pressure range, mounting connection and output signal that meets the specific requirements of the application. The adhesive mV sensor ensures reliable operation in a wide range of industrial applications.
831 | 851 | 861 Dynisco Pressure Sensors for Industrial Use
Nakonfigurujte si vlastní produkt, podle Vašich požadavků a potřeb. Pokud si s konfigurací nebudete jistí, uveďte do poznámek potřebné informace o stavajícím produktu třeba i konkurenčním. Rádi Vám pomůžeme najít alternativní produkt z řady Dynisco. Pokud je Vaše poptávka urgentní informujte nás o tom, uděláme maximum, abychom Vám pomohli tuto situaci vyřešit co nejrychleji. Pokud máme tyto informace jsme schopní nabídnout model s drobnými odlišnostmi a vy můžete mít zboží již druhý den u Vás.
Pokud potřebujete více informací, neváhejte nás kontaktovat.
Interchangeable configuration allows users to specify the pressure range, pressure port and output level that meet specific application requirements. A bonded strain gauge sensor provides reliable operation in a wide range of industrial applications.
⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

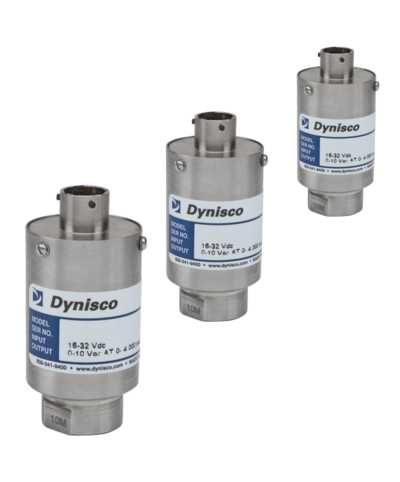

Dynisco models 831, 851, and 861 general purpose transducers offer flexible design and a pressure measurement accuracy of ±0.25% full scale output. Interchangeable configuration allows users to specify the pressure range, pressure port and output level that meet specific application requirements. A bonded strain gage sensor provides reliable operation in a wide range of industrial applications
| Pressure Range: | 0 - 30 000 PSI |
|---|---|
| Accuracy: | ±0.25% FSO including linearity, hysteresis, and repeatability |
| Full Scale Output: | 831: 3 mV/V ±0.5% 851/861: 5 Vdc/10 VDC |
|---|---|
| Input/Output Resistance: | 831: 350 ±10 Ohms |
| Internal Shunt Calibration: | 831/851/861: 80% ±0.5% FSO |
| Zero Balance: | 831: ±2% FSO |
| Zero And Span Adjustment: | 851/861: ±5% FSO |
| Input Voltage: | 831: 10 Vdc recommended, 15 Vdc maximum 851: ±12 to ±16 Vdc, 24 to 32 Vdc 861: ±14 to ±16 Vdc, 24 to 32 Vdc |
| Insulation Resistance: | 831: 1,000 megohms @ 50 VDC 851/861: 100 megohms @ 50 Vdc |
| Internal Shunt Calibration: | 30/850/860: 80% ±0.5% FSO (typical) 80% ±1% FSO (maximum) |
| Input Current: | 851/861: 45 mA (maximum) @ 2K load |
| Operating Range: | 831: -65°F to +250°F (-54°C to +120°C) 851/861: -20°F to +185°F (-29°C to +85°C) |
|---|---|
| Compensated Range | 831/851/861: 0°F to 150°F (-18°C to +66°C) |
| Temperature Effect On Zero: | 831/851/861: ±0.005% full scale/°F(±0.009% full scale/°C) |
| Temperature Effect On Span: | 831/851/861: ±0.005% full scale/°F(±0.009% full scale/°C) |
| Safe Overpressure: | 1.5 x rated pressure |
|---|---|
| Burst Pressure: | 100 - 250 psi: 10 x rated pressure 500 - 3,000 psi: 5 x rated pressure 5,000 - 10,000 psi: 3 x rated pressure |
| Wetted Material: | 17 - 4 PH, 15 - 5 PH stainless stee |
| Cover Material: | 303, 304 stainless steel |
| Weight: | 851/861: Approximately 17 ounces; 831: 13 ounces |
Dynisco's 832 is a universal sensor for most applications. The sensor offers highly accurate pressure measurement in the range of 0 to 10,000 PSI. Excellent temperature compensation is ensured by high performance in operating environments up to 120 ° C. Its high accuracy and robust design make it ideal for a variety of applications, such as test stands for the automotive and automotive industries up to test equipment for polymer systems.
Models 830, 850 and 860 are sensors for general use, offering flexible design and accuracy of pressure measurement ± 0.50% of full range. The optional configuration allows users to specify pressure ranges, mounting connections and output signals that meet specific application requirements. The compact sensor ensures reliable operation in a wide range of industrial applications.
