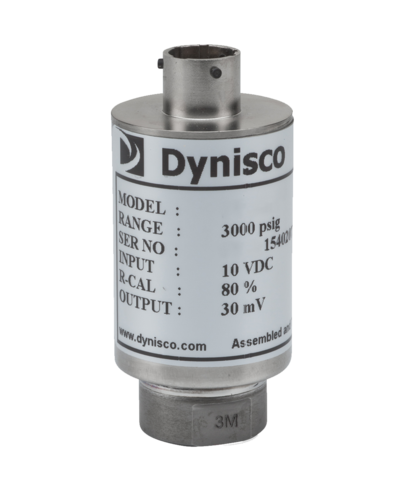

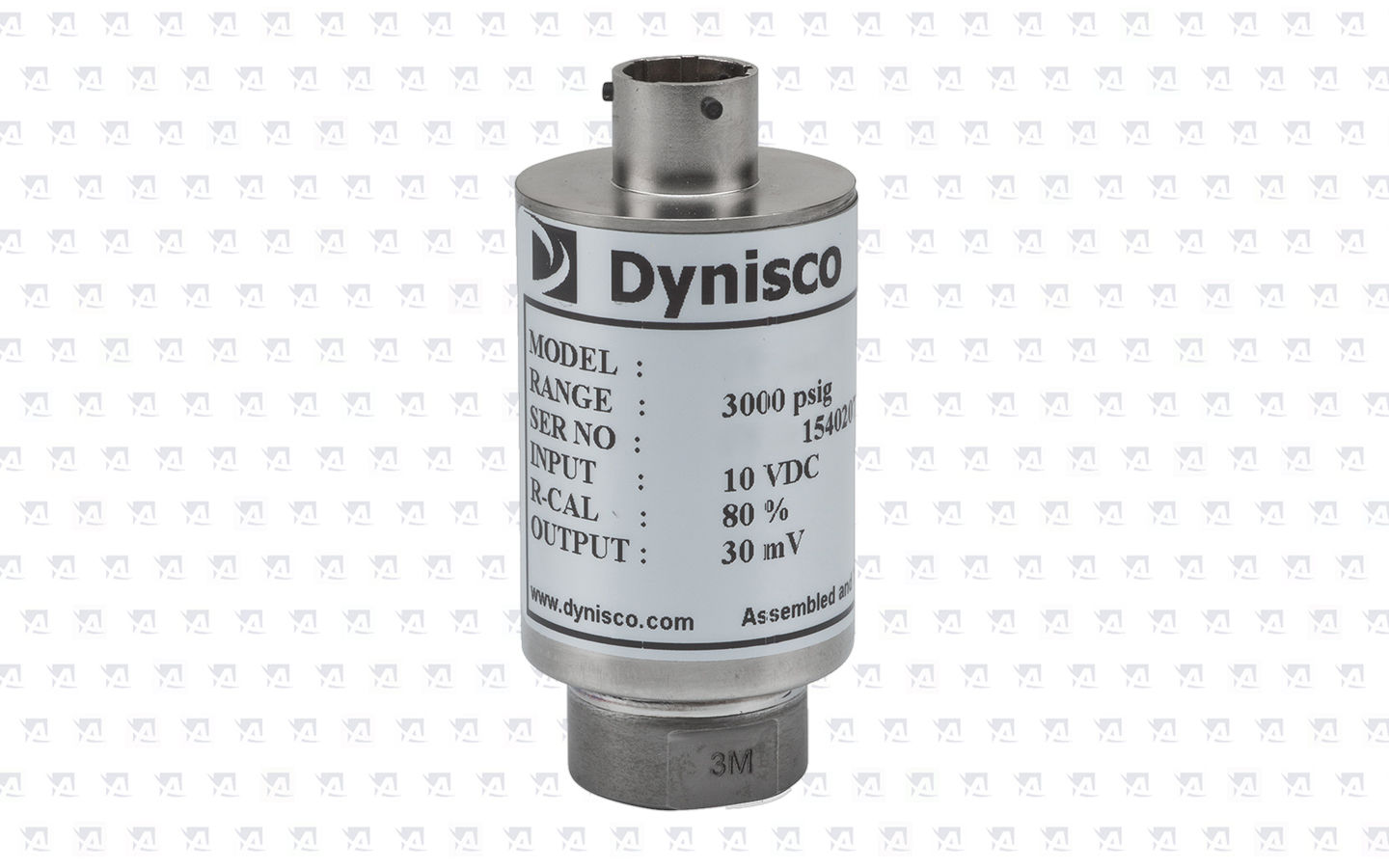

Dynisco's PT139 & PT139A pressure transmitters are designed to measure hydraulic pressure in extreme environments of vehicle and other hydraulic and pneumatic applications. These withstand cyclic pressure and provide outstanding performance under the severe demands of the industrial market. The small and rugged design make them ideal for restricted space applications. The all welded steel construction is ideal for demanding industrial or heavy duty applications. They are environmentally sealed transducers that prevent contamination.
PT139 | PT139A

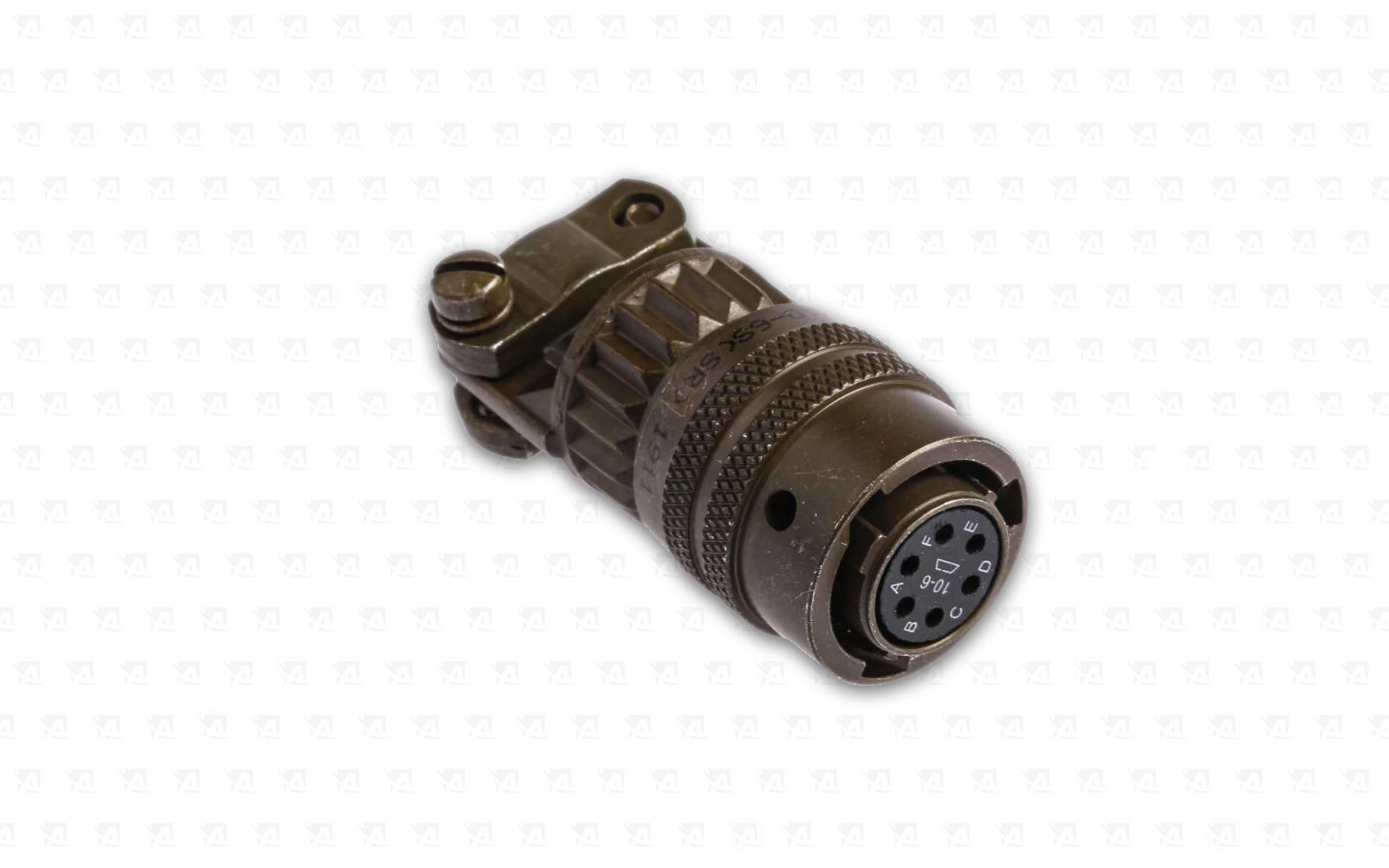

Detail - Bayonet cable connector Amphenol 6-PIN
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco's PT139 & PT139A pressure transmitters are designed to measure hydraulic pressure in extreme environments of vehicle and other hydraulic and pneumatic applications. These withstand cyclic pressure and provide outstanding performance under the severe demands of the industrial market. The small and rugged design make them ideal for restricted space applications. The all welded steel construction is ideal for demanding industrial or heavy duty applications. They are environmentally sealed transducers that prevent contamination.
| Pressure Range (psi): | 0 - 10 000 PSI |
|---|---|
| Accuracy: | ±0.5% full scale including linearity, hysteresis and repeatability |
| Full Scale Output: | 3 mV/V ±1.0% typical (±2.0% maximum) |
| Zero Balance: | ±1.0% typical (±2.0% maximum) |
| Input Resistance: | 420 Ohms ±20% |
|---|---|
| Output Resistance: | 370 Ohms ±10% |
| Internal Shunt Calibration: | 80% ±0.5% full scale typical (±1.0% maximum) |
| Excitation: | 10 Vdc recommended, 15 Vdc maximum |
| Operating Range: | -65° to +285°F (-54°C to +140°C) |
|---|---|
| Compensated Range: | -40° to +275°F (-40°C to +135°C) |
| Temperature Effect On Zero: | ±0.008% full scale/°F (±0.014% full scale/°C) |
| Temperature Effect On Span: | ±0.008% full scale/°F (±0.014% full scale/°C) |
| Safe Overpressure: | 2 x rated pressure |
|---|---|
| Burst Pressure: | 5 x rated pressure |
| Wetted Material: | 17 - 4 PH, 15 - 5 PH stainless steel |
| Cover Material: | 303, 304 stainless stee |
| Weight: | PT139: Approximately 5 ounces; PT139A: Approximately 2 ounces |
