Accessories

Transducer Mounting Hole Machining Tool Kit

Transducer Mounting Hole Machining Tool Kit

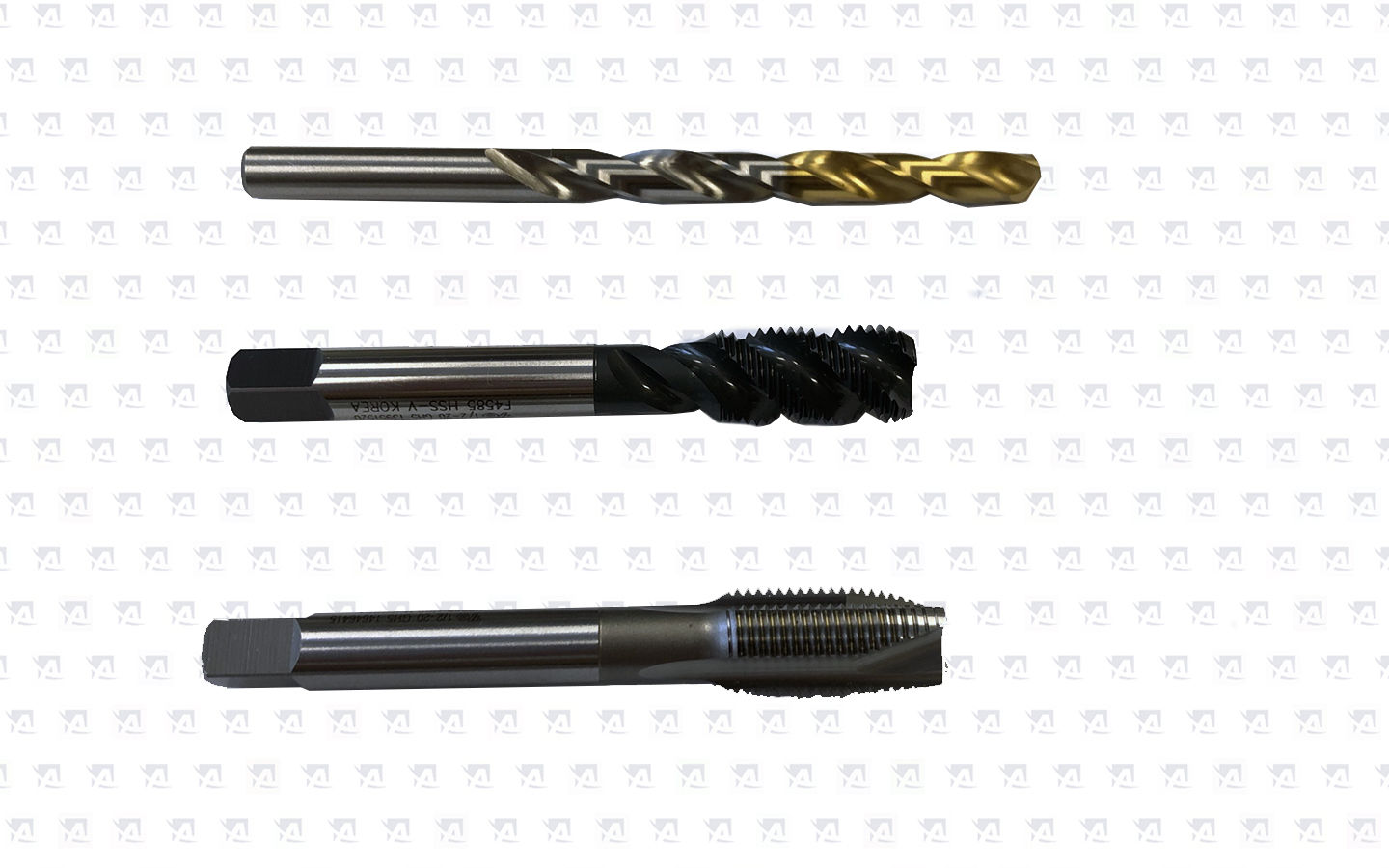

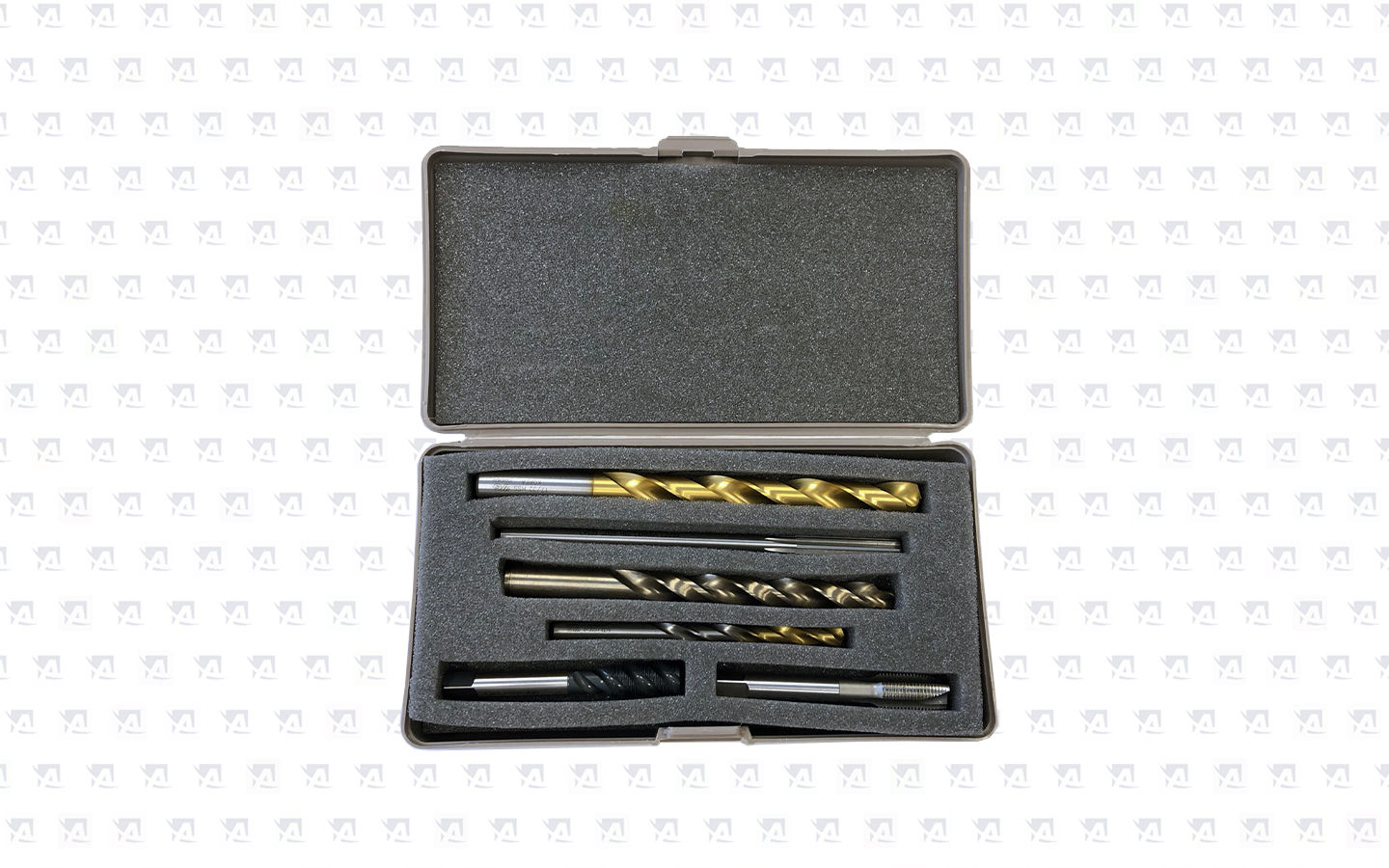

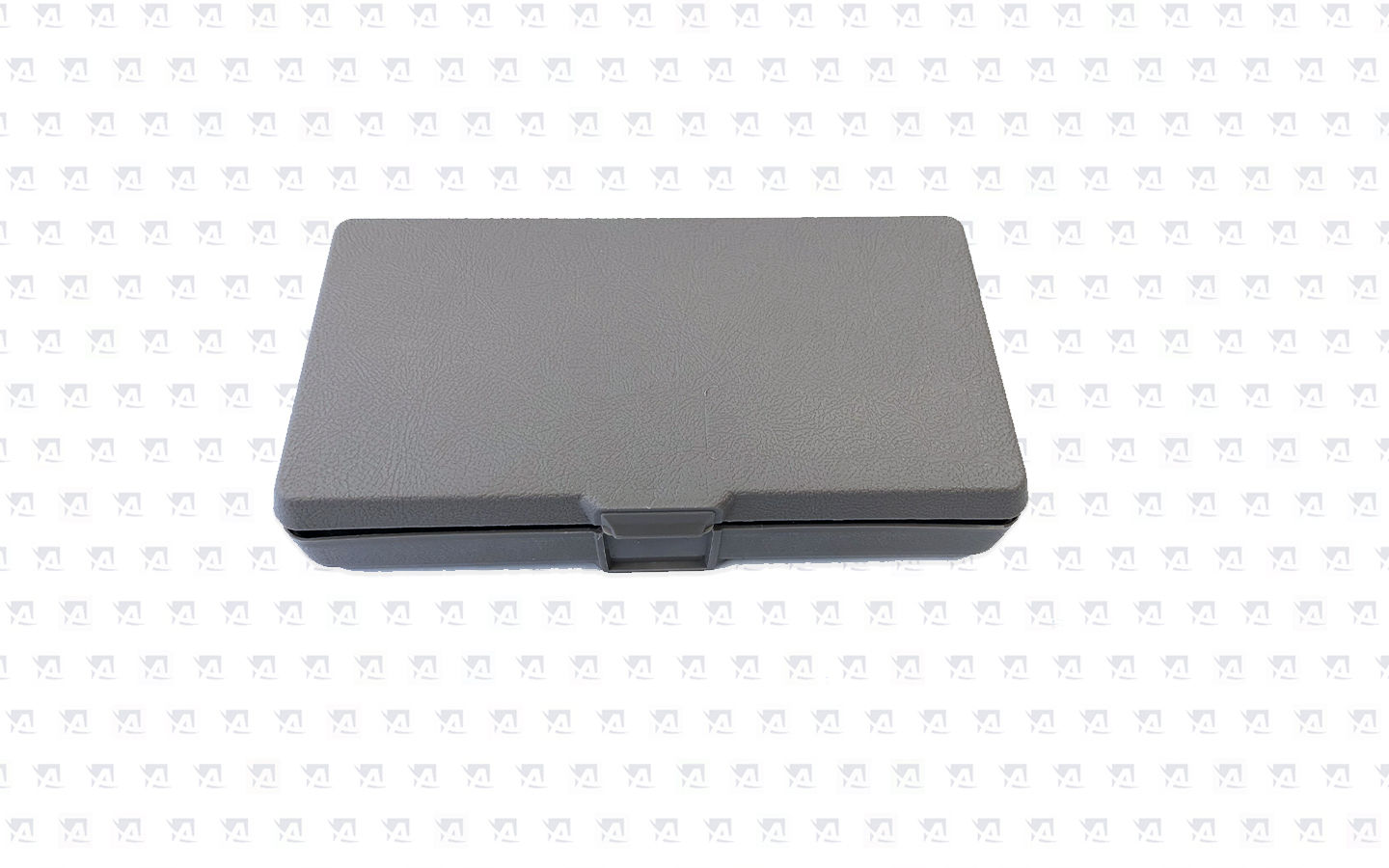

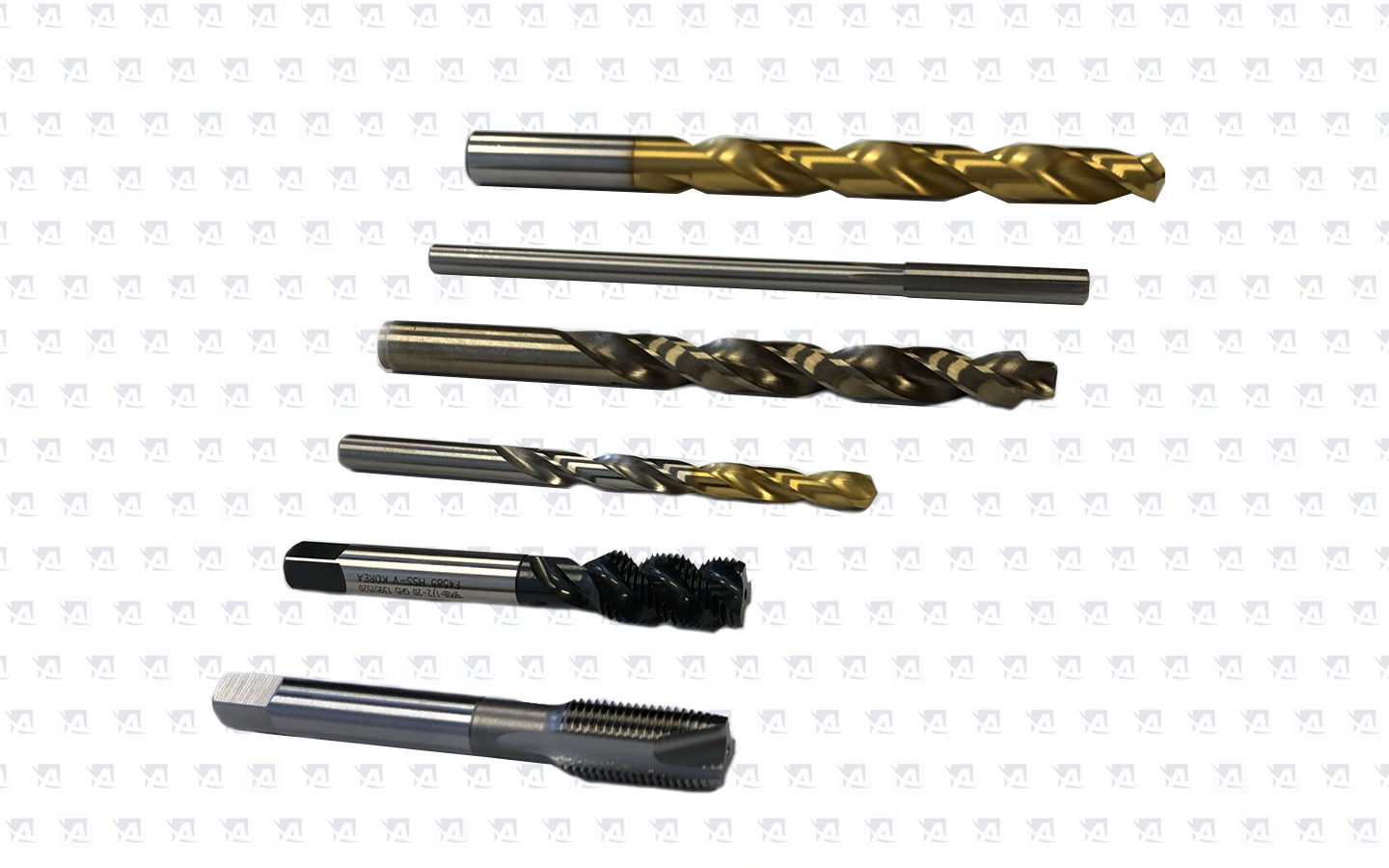

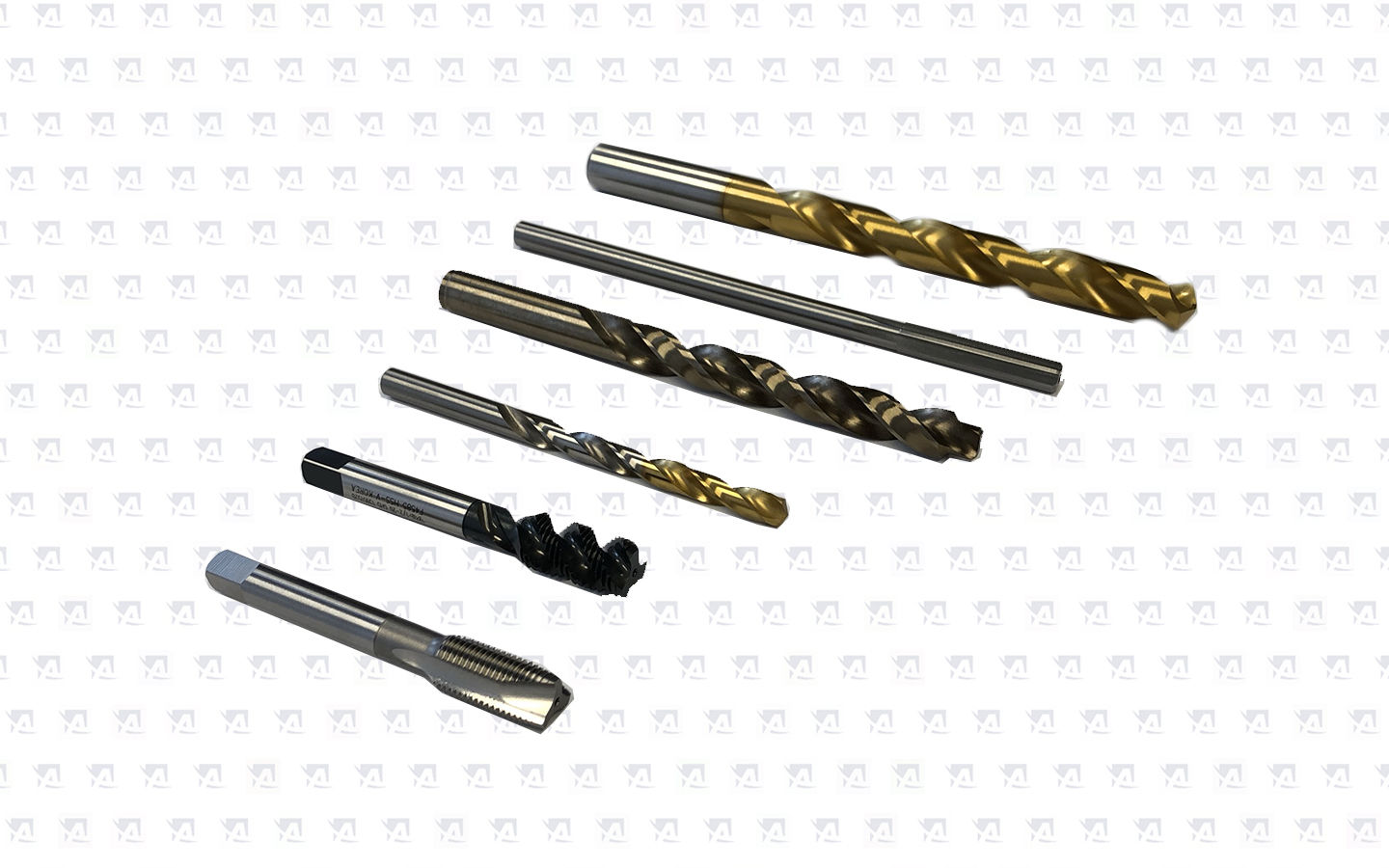

The tool set for making holes and threads for melt pressure sensors includes all the necessary drills and taps to prepare a standard 1/2 20 UNF sensor mounting hole. The set contains a special pilot drill, which is needed to machine the saddle by 45 °. All tools included in this set are made of high quality tool steel. When manufacturing the thread, care must be taken to ensure precise drilling speed, lubrication and perfect concentration. Furthermore, before mounting the sensor, we recommend checking the thread, which is the color used to apply the test tip. After the test, the paint may be damaged
(scratched) only on bevel and bearing surface 45 °. If it is damaged in other places, it means that the thread was not made correctly. If you have any questions, do not hesitate to contact us. M10 and M18 kits also available.

Suggested Procedure


Step 1:
Drill a hole with the 9/32" drill.

Step 2:
Ream the hole with the 5/16" reamer.
Step 3:
Consult the mounting hole drawing and calculate the depth required for the .451/.458" hole to leave .225" minimum length of the 5/16" (.312") diameter hole. Using the special 29/64" pilot drill, drill to the depth calculated above, perhaps leaving a little excess to be removed in step 7.

Step 4:
Drill with the 17/32" drill, if necessary, so as to leave approximately 1" of the 29/64" diameter hole length.

Step 5:
Tap with the 1/2 - 20 plug tap (tap with tapered lean) as deep as possible without striking the chamfered seating surface that was produced by the pilot drill.

Step 6:
Tap to the final depth with the 1/2 - 20
UNF bottoming tap.

Step 7:
Examine the seating surface of the mounting hole. If it has been marked by the tapping operation, touch it up with the pilot drill.

MDA 420 | 422 | TDA 432

MDA420 - Sensor with rigid stem
MDA422 - Sensor with rigid stem and flexible capillary
TDA 432 - Combined sensor with rigid stem, flexible capillary and built-in temperature sensor


The sensors of this 42x series are specific with an 6-pin threaded connector Bendix and an accuracy of ±0.25% of the pressure range. Power supply via 10-12 V DC. Membrane made of 15-5 PH material and coated with DyMAX layer. The length of the fixed rod and the flexible capillary can be optionally configured.

MDA 460 | 462 | TDA 463

MDA 460 - Sensor with rigid stem
MDA 462 - Sensor with rigid stem and flexible stem
TDA  463 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor


The sensors of this 46X series are specific with a 6-pin bayonet connector and an accuracy of ±0.5% of the pressure range. Power supply via 10-12 V DC. Membrane made of 15-5 PH material and coated with the DyMAX layer. The length of the rigid stem and the flexible capillary can be optionally configured.

MDA 410 | 412 | TDA 412 (NaK)

MDA 410 - Sensor with rigid stem
MDA 412 - Sensor with rigid stem and flexible stem
TDA  412 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



Mercury-free sensors with 10-12 Vdc power supply. They meet the most stringent conditions controlled by the FDA - the Food and Drug Administration and the USDA. The membrane is made of Inconel 718. The length of the rigid rod and flexible capillary can be made and adjusted to the required size.

MDA 435

MDA435 - Sensor with flexible and exposed capillary


The sensors of this series MDA435 have a flexible capillary with an exposed mounting tip, which is used in an area where it is not possible to install a standard sensor with a flexible capillary and a rigid stem. Individual models have different accuracy. Model 435 has an accuracy of 0.50% of the pressure range. Power supply with 10-12 V DC and membrane made of 15-5 PH material and coated with DyMAX layer. The length of the flexible capillary can be optionally configured.

MDA 467

MDA467 - Sensor with flexible and exposed capillary


The sensors of this MDA467 series have a flexible capillary with an exposed mounting tip, which is used in an area where it is not possible to install a standard sensor with a flexible capillary and a rigid stem. Individual models have different accuracy. Model 467 has an accuracy of 1.00% of the pressure range. Power supply with 10-12 V DC and membrane made of 15-5 PH material and coated with DyMAX layer. The length of the flexible capillary can be optionally configured.

MDT 420 | 422 | TDT 432

MDT420 - Sensor with rigid stem
MDT422 - Sensor with flexible capillary.
TDT432 - Sensor with flexible capillary and temperature sensor.


Sensor with integrated amplifier (signal converter). Scanning accuracy better than 0.50% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

MDT 460 | 462 | TDT 463

MDT460 - Sensor with rigid stem
MDT462 - Sensor with flexible capillary.
TDT463 - Sensor with flexible capillary and temperature sensor.


Sensor with integrated amplifier (signal converter). Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

MDT 435

MDT435 - Sensor with flexible and exposed capillary


Sensor with an amplifier (signal converter) in a version with flexible capillary and exposed membrane. Scanning accuracy better than 0.50% of the range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

MDT 467

MDT467 - Sensor with flexible and exposed capillary


Sensor with amplifier (signal converter) in version with flexible capillary and exposed membrane. Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

SPX2242

The Dynisco SPX 2-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX2243

The Dynisco SPX 2-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX2244

The Dynisco SPX 2-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX 2241

The Dynisco SPX 2-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX2290

The Dynisco SPX 2-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX2291

The Dynisco SPX 2-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX2292

The Dynisco SPX 2-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX3242

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor.

SPX3243

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor.

SPX3342

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor.

SPX3343

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor.

SPX3290

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor.

SPX3291

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor.

SPX3390

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor.

SPX3391

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor.

SPX4222 & SPX4622

The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX4352 & SPX4672

The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX4232

The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX4502

The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

SPX5342

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature

SPX5343

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature

SPX5343

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature

SPX5344

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature

SPX5390

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature

SPX5391

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature

ECHO Series

Trusted for Quality, Reliability and Accurate Performance at an Affordable Price

Dynisco's Echo™ Series of melt pressure sensors offer quality performance and value for plastic processing utilizing standard configurations and pressure ranges. Echo sensors are designed to meet customer requirements by providing a combination of economic value and performance for general extrusion applications while providing a ±0.2% repeatability when measuring process pressures. Use Echo Series sensors when the application requires a quality measurement for optimized control, but not the costs of all the extra features.

ECHO (NaK) Series

Mercury-free. Trusted for Quality, Reliability and Accurate Performance at an Affordable Price

Dynisco's Echo™ Series of melt pressure sensors offer quality performance and value for plastic processing utilizing standard configurations and pressure ranges. Echo sensors are designed to meet customer requirements by providing a combination of economic value and performance for general extrusion applications while providing a ±0.2% repeatability when measuring process pressures. Use Echo Series sensors when the application requires a quality measurement for optimized control, but not the costs of all the extra features.

Vertex Series

Vertex is more accurate than any other mercury-filled sensor and is ideal for industrial applications that require low pressure.

The pressure range for Vertex is now available from 250 - 10,000 PSI. Not only is this an overall improvement to one’s process, but it helps with customers that are focused on sustainability and zero-waste.

PT420 | 422 | TPT 432

PT420A - Sensor with rigid stem
PT422A - Sensor with rigid stem and flexible stem
TPT432A - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

PT420A Series transducer is a ±0.25% sensor ideal for melt pressure applications requiring high accuracy, simple installation, repeatability and reliability.

PT460 | 462 | TPT 463

PT460E - Sensor with rigid stem
PT462E - Sensor with rigid stem and flexible stem
TPT463E - Combined sensor with rigid stem, flexible stem and built-in temperature sensor


Sensors with high accuracy ± 1.0% in optional design. Power supply via 10-12 V dc. Membrane made of 15-5 PH material and coated with DyMAX layer. The length of the fixed rod can be made and adjusted to the required size. 6-pin bayonet connector.

PT410 | PT412 | TPT412 (NaK)

PT410 - Sensor with rigid stem
PT412 - Sensor with rigid stem and flexible stem
TPT412 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor


The PT 41x series is a sensor with ±0.25% accuracy, which is ideal for food or medical applications. Its alternative filling (NaK), which replaces mercury.

PT418 | PT419 | TPT419 (Oil)

PT418 - Sensor with rigid stem
PT419 - Sensor with rigid stem and flexible stem
TPT419 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor


Model PT418 | PT419 | TPT419 Better than ±0.5% accuracy uses mineral oil as a filler, which meets the requirements of the FDA and USDA and at the same time allows accurate pressure sensing in processes where it is not possible to use mercury fillings. These models are ideal for medical and food or packaging applications.

PT435A

PT435A - Sensor with flexible and exposed capillary


The PT435A series model have been designed for applications where installation space is extremely limited. The exposed part of the capillary allows a bend with a small radius of 3 mm. The specially developed design of the sensor tip facilitates the installation of the sensor in very cramped and confined spaces, where it is not possible to install a standard sensor with a fixed rod or flexible capillary.

PT467E

PT467E - Sensor with flexible and exposed capillary

The PT467E models have been designed for applications where installation space is extremely limited. The exposed part of the capillary allows a bend with a small radius of 3 mm. The specially developed design of the sensor tip facilitates the installation of the sensor in very cramped and confined spaces, where it is not possible to install a standard sensor with a fixed rod or flexible capillary.

PT467XL

PT467XL- Pressure sensor with flexible and exposed capillary In a version with a more durable membrane(XL).


The PT467XL series of pressure transmitters are the ideal choice for applications with high accuracy and minimal mounting space. The PT 467XL models have an accuracy of ± 0.5% of range and an exposed capillary with a diameter of 1.5 mm, which allows bending in a radius of 1/16 inch. The sensors are supplied with a Dymax® membrane, which ensures an increase in wear resistance and thus a longer service life. Sensors marked XL have a protector (flexible capillary) up to the tip of the sensor.

PT415D (NaK)

 PT415D - Washable sensor with rigid stem and NaK filling.


The PT415D pressure transmitter with accuracy of better than ±0.5% is the ideal choice for food and medical applications that require high accuracy and easy maintenance. It is a washable sensor with insulated wiring type 1/2-14 NPT or an optional 6-pin hermetically insulated bendix connector. PT 415D contains a high temperature fill (NaK, sodium potassium) and an Inconel membrane. Meets FDA and USDA hygiene regulations and requirements.

PT4194 (Oil) 4-20mA

PT4194 Sensors provide an industry standard 4-20 mA amplified signal designed to work with DCS and PLC.



It is a sensor with ± 0.5% accuracy ideal for the food or pharmaceutical industry requiring easy installation, repeatability and reliability. It is filled with mineral oil that meets the requirements of FDA 21 CFR 178.3620, 21 CFR 172.878 and 21 CFR 573.680.

PT4195 (Oil) 0-5 Vdc

PT4195 sensors provide a standard 0-5Vdc output signal designed to work with DCS and PLC.



It is a sensor with ± 0.5% accuracy ideal for the food or pharmaceutical industry, requiring easy installation, repeatability and reliability. It is filled with mineral oil that meets the requirements of both the USDA and the FDA.

PT4196 (Oil) 0-10 Vdc

PT4196 sensors provide a standard 0-10Vdc output signal designed to work with DCS and PLC.

 The PT4196 is a ± 0.5% accuracy sensor ideal for applications in the food and pharmaceutical industries requiring easy installation, repeatability and reliability. The output signal represents 0-10. The alternative filling of the sensor in the form of oil for the food industry meets the requirements set by the USDA and the FDA.

PT4674 (4-20 mA)

Model PT4674 is a special variant of the pressure sensor with flexible capilary and exposed capillary, which has an output signal of 4-20 mA. It is used wherever a conventional sensor with a fixed rod or flexible capillary cannot be installed due to lack of space.The accuracy of this sensor is better than ±0.5%.

PT4675 (0-5 Vdc)

Model PT4675 is a special variant of the pressure sensor with flexible capillary and exposed capillary, which has a 0-5 VDC output signal and is used wherever a conventional fixed rod or flexible capillary sensor cannot be installed due to lack of space. The accuracy of this sensor is better than ±0.5%.

PT4676 (0-10Vdc)

Model PT4676 is a special variant of the pressure sensor with flexible capillary and exposed capillary, which has a 0 to 5 Vdc, 1 to 6 Vdc, 0 to10 Vdc, 1 to 11 Vdc outputs signal and is used wherever a conventional fixed rod or flexible capillary sensor cannot be installed due to lack of space. The accuracy of this sensor is better than ±0.5%.

PT4654XL

The PT4654XL models represent an optimal solution for precise melt pressure measurement in nozzles or distribution channels within injection molding applications.

The flexible capillary extends from its electronic housing to the positioned tip in the machine melt, ensuring exceptional durability and prolonged sensor lifespan thanks to its robust construction.

PT4655XL

The PT4655XL models represent an optimal solution for precise melt pressure measurement in nozzles or distribution channels within injection molding applications.

The flexible capillary extends from its electronic housing to the positioned tip in the machine melt, ensuring exceptional durability and prolonged sensor lifespan thanks to its robust construction.

PT4656XL

The PT4656XL models represent an optimal solution for precise melt pressure measurement in nozzles or distribution channels within injection molding applications.

The flexible capillary extends from its electronic housing to the positioned tip in the machine melt, ensuring exceptional durability and prolonged sensor lifespan thanks to its robust construction.

PT46x4 Series

PT4604 - Sensor with rigid stem
PT4624 - Sensor with rigid stem and flexible stem
TPT4634 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



The PT46x4 Series pressure sensor is a ±0.5% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability. The PT46x4 sensor provides the industry standard 4-20 mA amplified signal designed to work with DCS and PLCs.

PT46x5 Series

PT4605 - Sensor with rigid stem
PT4625 - Sensor with rigid stem and flexible stem
TPT4635 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



The PT46X5 Series transmitter is a +/- 0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X5 transmitters provide the industry standard 0 - 5 Vdc amplified signal designed to work with DCS and PLCs, 1 - 6 Vdc outputs are also available.

PT46x6 Series

PT4606 - Sensor with rigid stem
PT4626 - Sensor with rigid stem and flexible stem
TPT4636 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



The PT46X6 Series transmitter is a ±0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X6 transmitters provide the industry standard 0 - 10 Vdc amplified signal designed to work with DCS and PLCs, 1 - 11 Vdc outputs are also available.

PT130 | PT140 | PT150 | PT160 Hydraulic sensors

PT130 =  3 mV/V
PT140 =  0-5   VDC
PT150 =  0-10 VDC
PT160 =  4 - 20 mA

This range of hydraulic sensors is designed to measure pressure in injection molding applications. It has a very good resistance to cyclic pressure, which is characteristic of these applications and provide information on the change of the hyd profile. pressure together with information on the stability of the injection system

PT139 | PT139A

Dynisco PT139 and PT139A pressure sensors are designed to measure hydraulic pressure in extreme conditions for testing vehicles, stands and other hydraulic and pneumatic applications. These sensors withstand cyclic pressure and provide excellent performance during demanding industrial conditions.

PT199 Pressure sensor

The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.

PT303 Pressure sensor

The Dynisco PT303 pressure transmitter is designed for all pressure applications in potentially explosive atmospheres. With high performance and a wide range of pressures, it offers trouble-free operation and flexibility to suit all your requirements.

PT311JA Pressure sensor

The Dynisco PT311JA Washable Pressure Sensor is designed for applications requiring a zero volume pressure port. The recessed diaphragm improves the frequency response. The PT311JA has a full 3 mV / V output signal and offers reliable and accurate pressure measurement of gases, viscous liquids.

PT375 Pressure Transducer

The Dynisco PT 375 pressure transmitter is designed for applications requiring a zero volume pressure port, fast response time and strict cleanliness standards. The high-pressure metal-to-metal seal offers reliable pressure measurement of sludges, viscous liquids and other media that can be homogenized.

EPR3 Push Rod Sensors

The high-temperature EPR3 melt pressure sensor from Dynisco is offered as an alternative to the PT420 and PT460 series. The solid rod design is suitable for applications where the use of a filling medium may not be appropriate, such as applications for the food and pharmaceutical industries and the production of photographic films. The EPR3 model is available in various pressure variants.

EPR4 Push Rod Sensors

The EPR4 series are sensors with ± 0.5% accuracy ideal for food or medical applications requiring easy installation, repeatability and reliability. Technology Push Rod design is especially suitable for food or medical applications with the possibility of filled systems. EPR4 provide an industry standard in the form of an amplified 4-20 mA signal designed to work with DCS and PLC. The EPR4 model is available in various pressure variants.

BP420 - Burst plugs

The Model BP420 burst plugs are designed specifically for use in plastic extrusion systems. The Model BP420 will instantaneously rupture at a specific, predetermined pressure and temperature. Each one piece assembly consists of a 304 stainless steel body with a welded Inconel rupture disk. May be specified for primary relief in applications where pressure build-up can occur so rapidly that the response time of a relief valve is inadequate, such as in a polymerization reaction vessel.

BP520 - Burst plugs with indication

The BP520 series of pressure fuses have a "pop-up" indicator cap. A fine conductor passes through the construction of the fuse and the indicator cover of the part, which, when the fuse is activated or by emergency release of pressure, pushes out the fuse cover and thus disconnects (ruptures) the tested conductor.

DYKE

The Dynisco Melt Thermocouple Series DYKE is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of a thermal insultation of the housing. The sensor tip is being ceramically insulated from the housing. These temperature sensors are especially suitable for the use in high abrasive medial.

DYMT

The DYMT Series features temperature sensors specifically designed to meet the requirements of the polymer industry. The mounting thread is compatibleThe Melt Thermocouple Series DYMT is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement.

GRMT

The Graduated Retractable Melt Thermocouple (GRMT) is used to measure temperatures inside the polymer melt stream. The depth of immersion of the junction into the hot melt stream can be varied from zero to mid-stream during maximum flow and pressure conditions, without removing the sensor from the adapter. Using the graduations on the stem of the temperature sensor allows the user to choose and monitor the specific depth at which the junction is in the melt stream.
