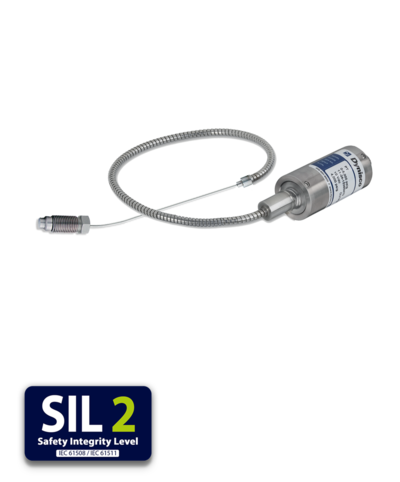

PT467E - High accuracy melt pressure transducer for space restricted areas

PT467E

The PT647E series of pressure sensors is an ideal choice for measuring the melt pressure of polymers in places where there is not enough space for a conventional sensor. The exposed part of the capillary allows a bend with a small radius of 3 mm and thanks to the special construction of the tip with a freely rotating nut simplifies installation and allows the use of Dynisco sensors even where it is not possible to install a standard sensor with a fixed rod or flexible capillary.

Standard transducers are supplied with a DyMax® coated membrane to increase wear resistance and long life. The 6-pin Bendix connector is used for easy connection and disconnection.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

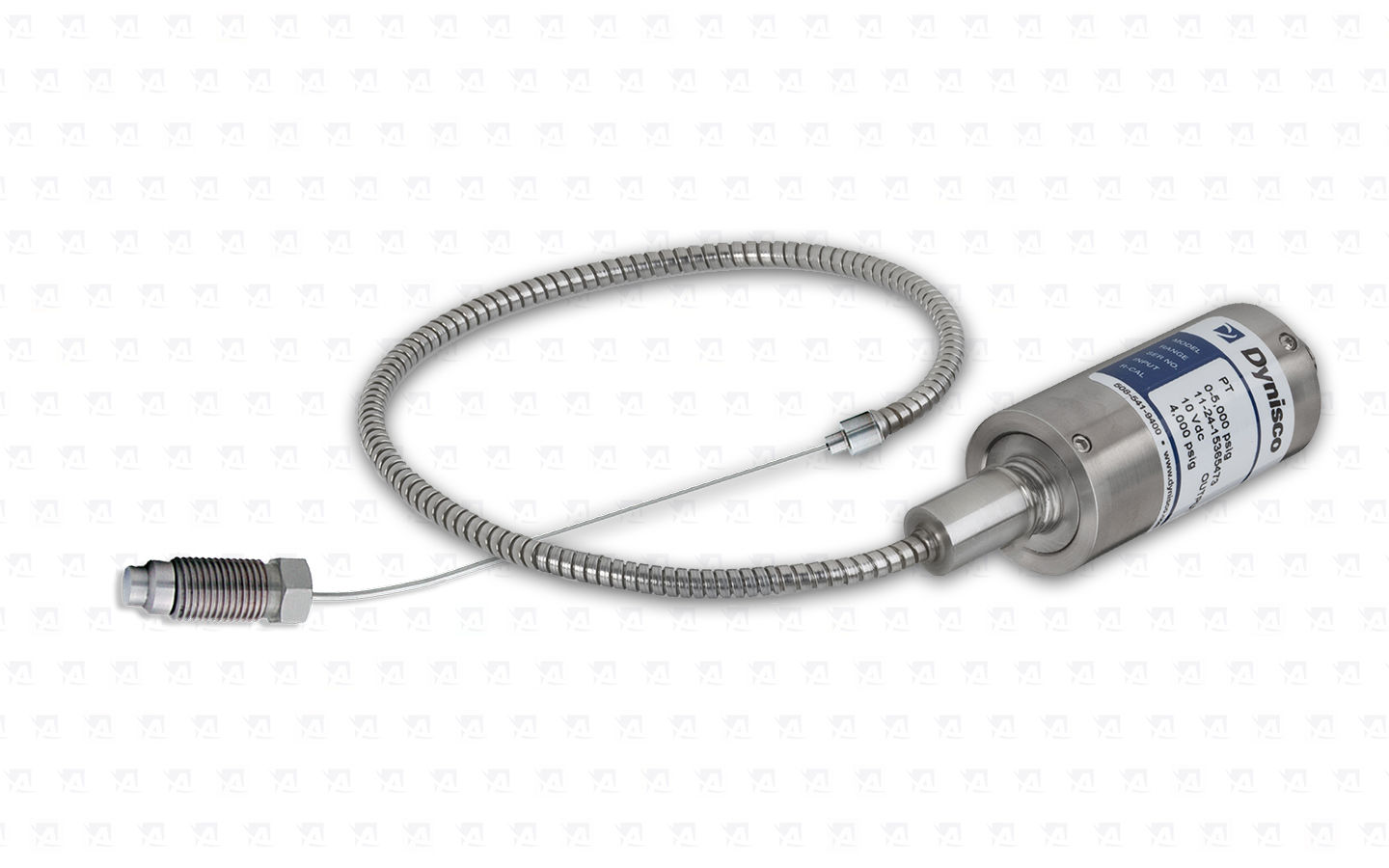

PT 467 -  Melt pressure sensor in design with exposed capillary

PT 467 - Melt pressure sensor in design with exposed capillary

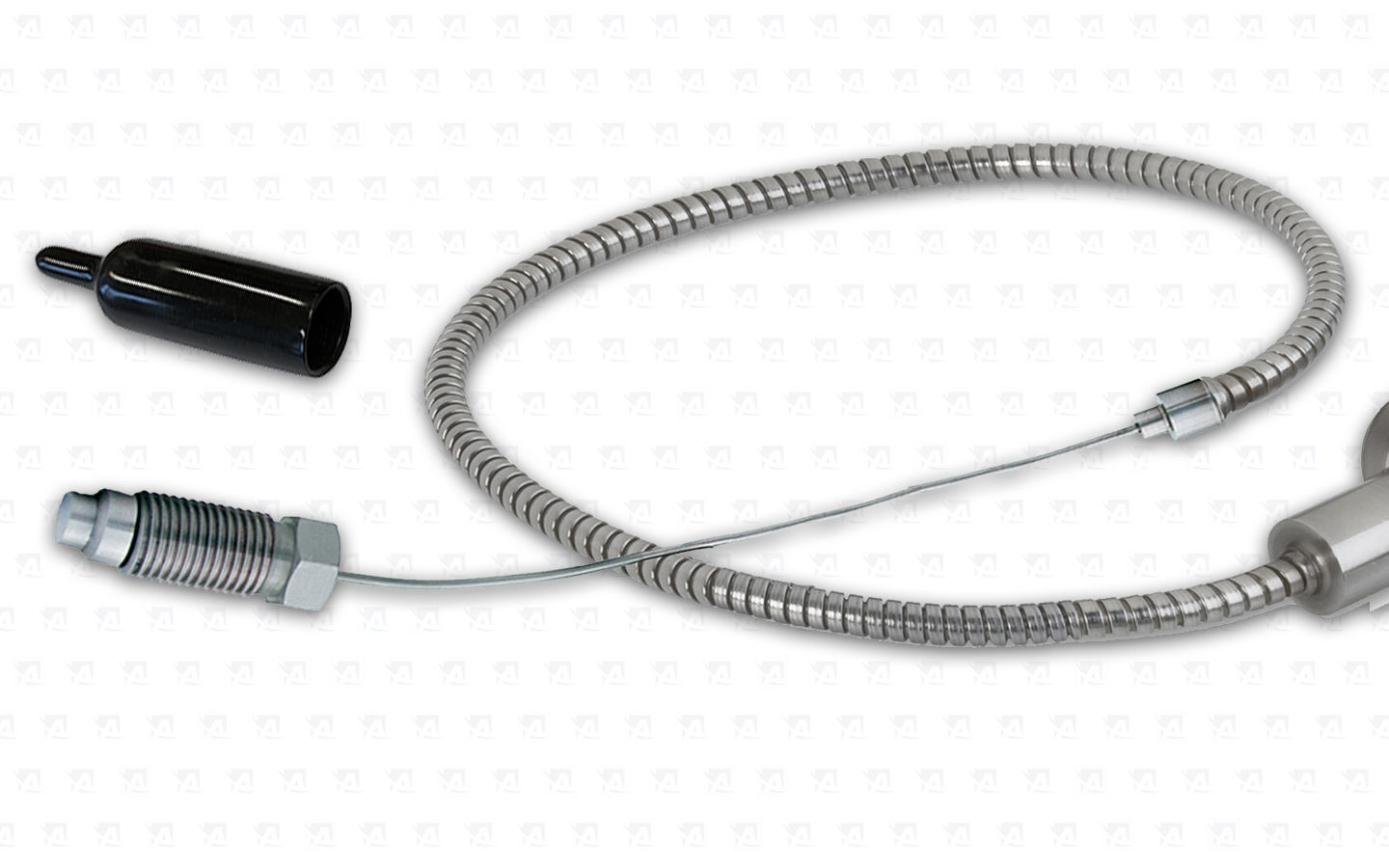

PT 467 -  Melt pressure sensor in design with exposed capillary

PT 467 - Melt pressure sensor in design with exposed capillary

Adjusting screws - used to adjust the zero and upper range of the sensor

Adjusting screws - used to adjust the zero and upper range of the sensor

Sensor terminal and compatible cable connector

Sensor terminal and compatible cable connector

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco configuration code:

Vaše osobní údaje budou zpracovány podle Podmínek zpracování osobních údajů.

High accuracy melt pressure transducer for space restricted areas

Our pressure sensors offer efficient, accurate, and durable solutions for reliable and safe pressure measurement. These sensors are used in a variety of industrial areas, where they monitor and measure the pressure of molten materials, ensuring optimal operation of production processes. Due to their resistance to high temperatures and pressures, which are typical for these applications, they represent a suitable choice for diverse uses. When selecting a sensor, it is important to consider the specific requirements of your application, such as temperature range, pressure range, and materials with which the sensor will interact. The correct choice of sensor guarantees reliable and accurate results and a long service life of the device without any problems. Installing the sensor into the mounting hole of the production line is simple.
However, if you have doubts about the proper installation, do not hesitate to contact our technicians. We are ready to provide support and offer the ideal solution for your application.

PT467E Pressure Sensors - With flexible and exposed capillary


Innovative pressure sensor, perfectly designed for injection applications with minimal installation space. Thanks to its unique features and state-of-the-art technical parameters, this sensor can cope with demanding conditions in any environment. The manufacturer spared no expense in advanced technologies and sophisticated production processes, enabling the sensor to achieve very small dimensions and low weight without any compromise to its outstanding performance. The pressure sensor is an ideal solution for a wide range of injection applications, thanks to its exceptional resistance to vibrations, which it can withstand very well. A pleasant bonus is the easy and hassle-free installation of this sensor in spaces with limited dimensions.

Performance Characteristics


Pressure Range: 0- 30 000 PSI
Maximum pressure: 2 x full range or 35,000psi (whichever is less
Accuracy:  ±0.5% FSO
Repeatability:  ± 0.2% FSO
Resolution: Infnite
Maximum Overload
(without influencing operating data):
2 x full range or 35,000psi (whichever is less
Material in Contact with Media: Dymax® coated 15-5 PH SST
Mounting torque: 500 inch - lbs. maximum
Weight: 1.5 lbs



Temperature Characteristics



Diaphragm
Max. Temperature: 750°F (400°C)
Zero Shift Due to Temperature Change: 25 psi/100°F maximum (45 psi/100°C)
Housing
Max. Temperature: 250°F (121°C)
Zero Shift Due to Temperature Change: ±0.05% full scale/°F maximum (±0.10% full scale/°C)
Sensitivity Shift Due to Temperature Change:  ±0.02% full scale/°F maximum (±0.04% full scale/°C)

Electrical Characteristics




Configuration: 4-arm Wheatstone bridge strain gage
Bridge resistance: Input: 345 Ohms minimum; Output: 350 Ohms ±10%
Zero balance: ±5% FSO
Full scale output: 3.33 mv/V ±2%
Excitation: 10 Vdc recommended, 12Vdc maximum
Internal shunt calibration (R-Cal): 80% FSO ±0.5%
Insulation resistance: 1000 megohms at 50 Vdc



Ordering Guide for PT467E

PT467E - Dimensions

All dimensions are inches (mm) unless otherwise specified.
