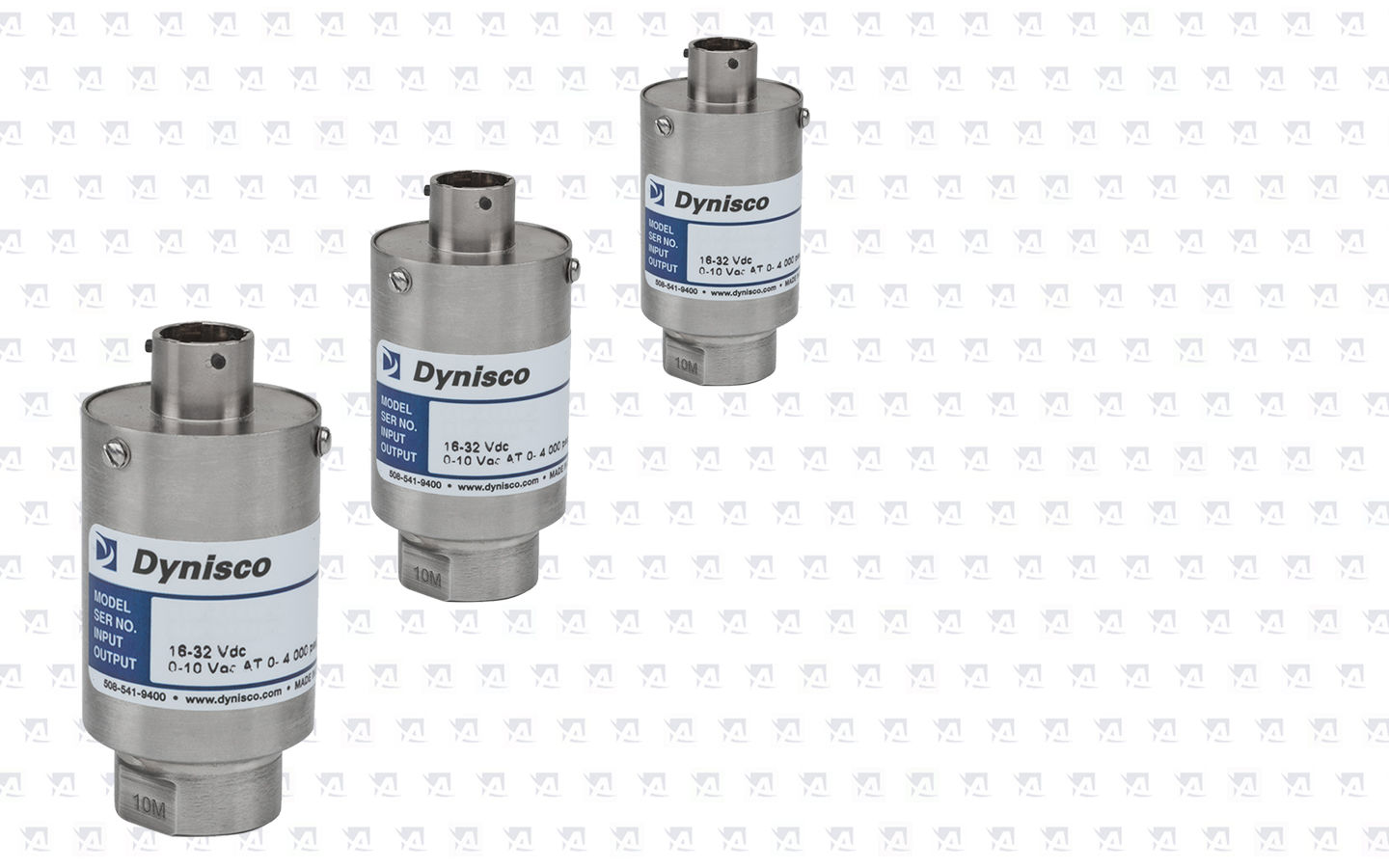

PT130, PT140, PT150 and PT160 are designed to measure hydraulic pressure on injection molding machines. The PT series resists cyclic pressure and provides excellent performance even in demanding conditions. Changes in the hydraulic pressure profile indicate irregularities during the injection phases together with the performance of the forming operation and provide information on the stability of the overall system.
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
PT130, PT140, PT150 and PT160 are designed to measure hydraulic pressure on injection molding machines. The PT series resists cyclic pressure and provides excellent performance even in demanding conditions. Changes in the hydraulic pressure profile indicate irregularities during the injection phases together with the performance of the forming operation and provide information on the stability of the overall system.
| Pressure Range (psi): | 0 - 10 000 PSI |
|---|---|
| Accuracy: | ±0.5% full scale including linearity, hysteresis and repeatability |
| Full Scale Output: | PT130: 3 mV/V ±1.0% typical (±2.0% maximum) PT140/150/160: 5 Vdc, 10 Vdc, 4 to 20 mA ±1.0% typical (±2.0% maximum) |
| Zero Balance: | ±1.0% typical (±2.0% maximum) |
| Input Resistance: | PT130: 420 Ohms ±10% |
|---|---|
| Output Resistance: | PT130: 370 Ohms ±10% |
| Internal Shunt Calibration: | PT130/150/160: 80% ±0.5% full scale typical (±1.0% maximum) |
| Load Resistance: | PT150/160: 2,000 Ohms minimum |
| Maximum Loop Resistance: | PT140: 0 to 1,100 Ohms from 14 to 36 Vdc |
| Wiring: | Reverse polarity protection of excitation leads |
Output: |
Input Voltage: |
| 3 mV/V | 10 Vdc recommended, 15 Vdc maximum |
| 0 to 5 Vdc (4 - wire) | 11 to 32 Vdc, ±12 to ±16 Vdc |
| 1 to 6 Vdc (3 - wire) | 11 to 32 Vdc |
| 0 to 10 Vdc (4 - wire) | 16 to 32 Vdc, ±14 to ±16 Vdc |
| 1 to 11 Vdc (3 - wire) | 16 to 32 Vdc |
| 4 to 20 mA (2 - wire) | 14 to 36 Vdc |
| Operating Range: | PT130: -65°F to +250°F (-54°C to +120°C) PT140/150/160: -20°F to +185°F (-29°C to +85°C) |
|---|---|
| Compensated Range: | 0°F to +150°F (-18°C to +66°C) |
| Temperature Effect On Zero: | PT130: ±0.005% full scale/°F (±0.009% full scale/°C) typical (±0.01%/±0.018% maximum); T140/150/160: ±0.02% full scale/°F (±0.036% full scale/°C) |
| Temperature Effect On Span: | ±0.02% full scale/°F (±0.036% full scale/°C) |
| Safe Overpressure: | 2 x rated pressure |
| Burst Pressure: | 5 x rated pressure |
| Wetted Material: | 17 - 4 PH, 15 - 5 PH stainless steel |
| Cover Material: | 303, 304 stainless steel |
| Weight: | Approximately 5.5 ounces |
