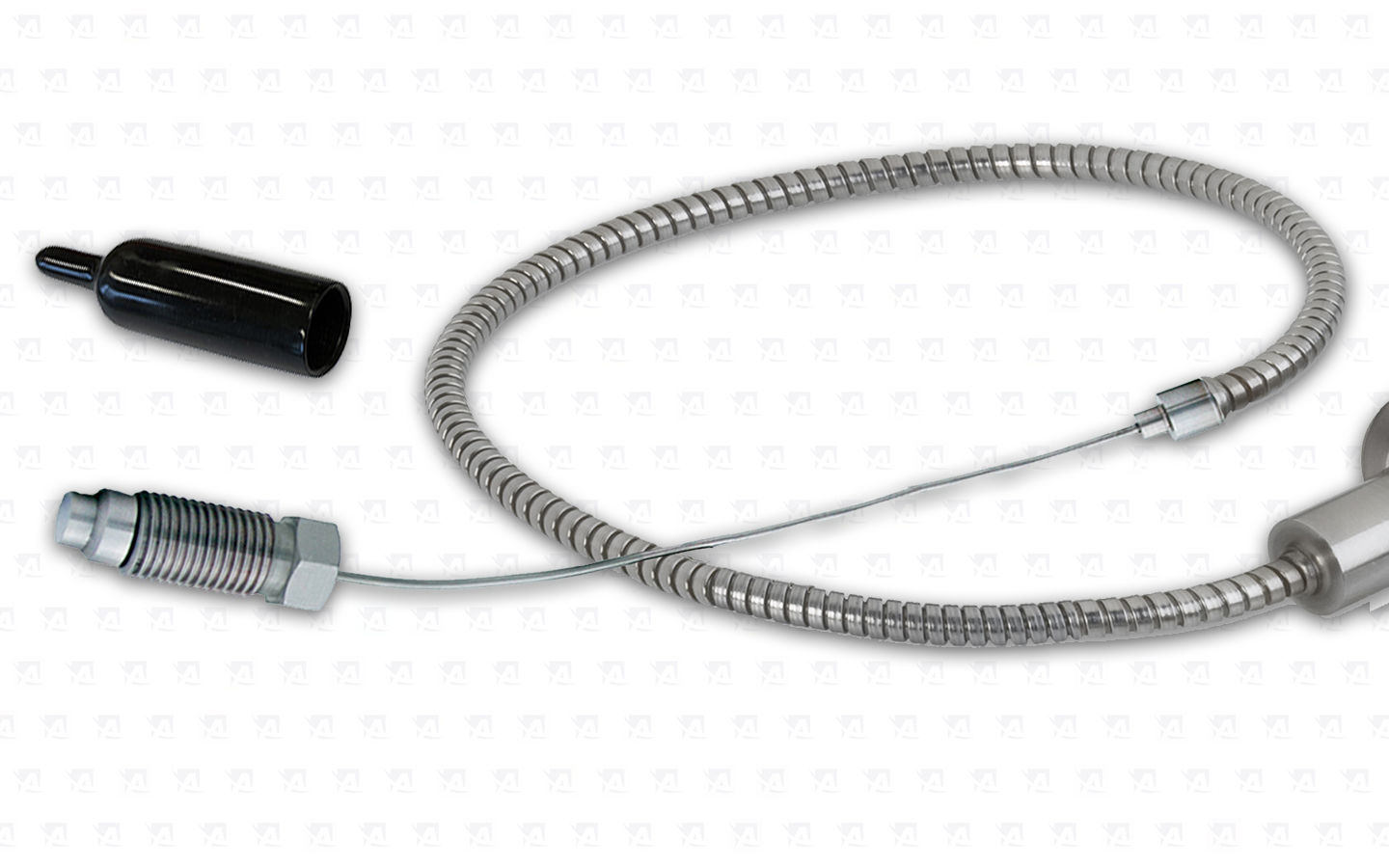

The MDA467 models are robust and reliable sensors. These models are equipped with a flexible and exposed capillary for easy installation and use in extremely cramped conditions or deviation of the sensor measuring head from the radiant heat of the machine.
The entire MDA range provides an industry standard with a 3.33 mV/V output signal designed to work with most pressure indicators and regulators. This sensor model is equipped with an eight-pin Bendix connector and a 1/2 "-20 UNF 2A or M18x1.5 mounting thread.

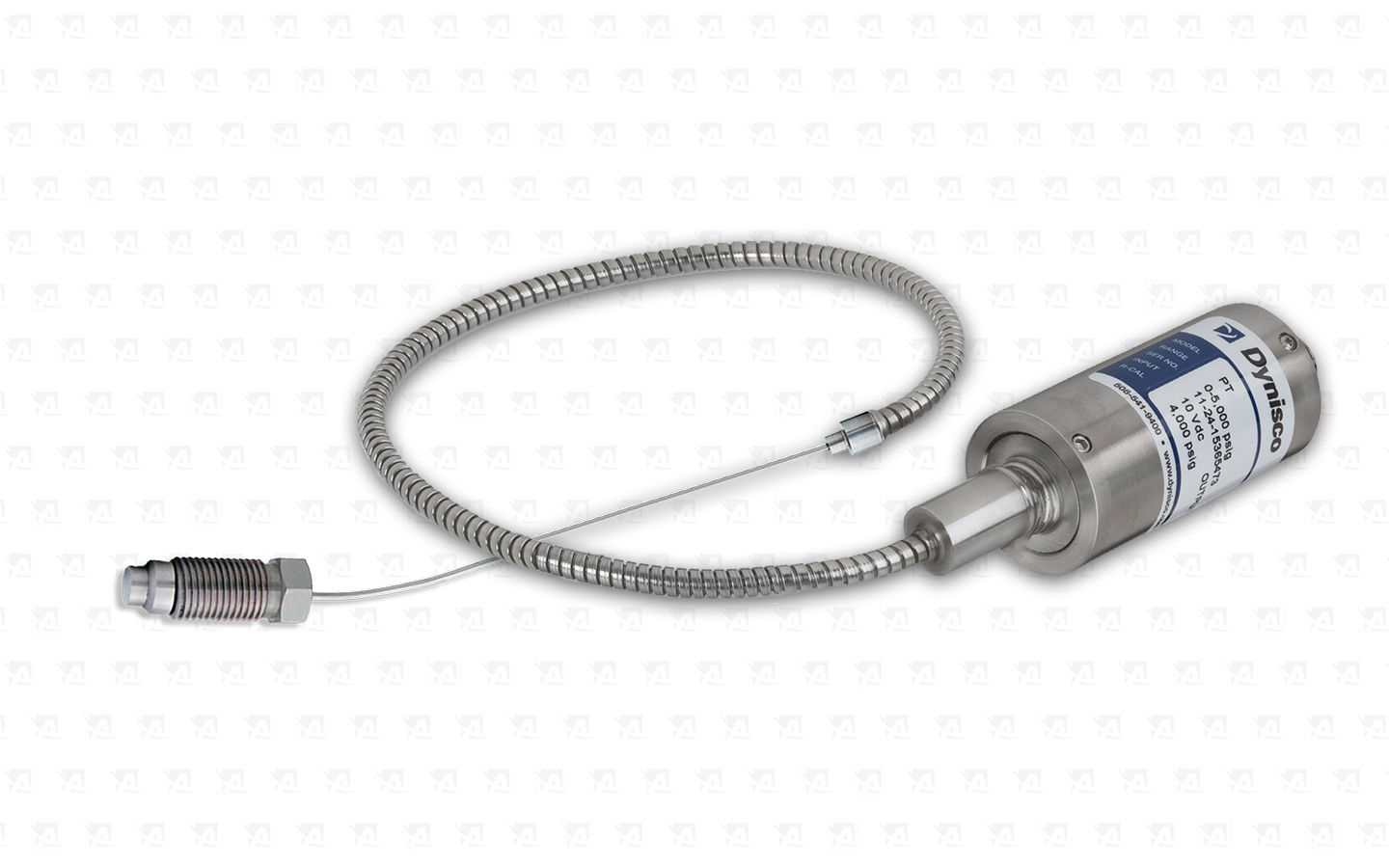

MDA 467 - Melt Pressure sensor with exposed capillary

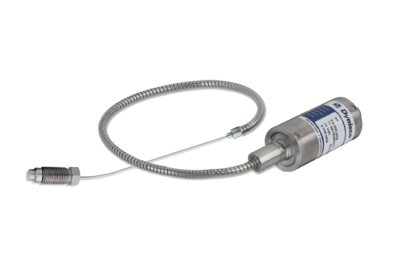

MDA 467 - Melt Pressure sensor with exposed capillary
Sensor terminal and compatible cable connector
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Innovative pressure sensor, perfectly designed for injection applications with minimal installation space. Thanks to its unique features and state-of-the-art technical parameters, this sensor can cope with demanding conditions in any environment. The manufacturer spared no expense in advanced technologies and sophisticated production processes, enabling the sensor to achieve very small dimensions and low weight without any compromise to its outstanding performance. The pressure sensor is an ideal solution for a wide range of injection applications, thanks to its exceptional resistance to vibrations, which it can withstand very well. A pleasant bonus is the easy and hassle-free installation of this sensor in spaces with limited dimensions.
| Pressure Range: | 0-17 bar to 0-2000 bar |
|---|---|
| Accuracy: | ± 1.0 % f.s.v. |
| Repeatability: | ± 0.2% f.s.v. |
| Resolution: | Infnite |
| Maximum Overload (without influencing operating data): | 2 x pressure range but for 1000 and 1400 bar range max.1750 bar,for 2000 bar max. 2400 bar |
| Burst Pressure: | 6x pressure range max. 3000 bar |
| Material in Contact with Media: | 15-5 Mat. No. 1.4545, DyMAX coated |
Diaphragm |
|
|---|---|
| Max. Temperature: | 400°C |
| Zero Shift Due to Temperature Change: | <0.4 bar / 10°C |
Housing |
|
| Max. Temperature: | 120°C |
| Zero Shift Due to Temperature Change: | ±1.0% f.s.v./10°C |
| Sensitivity Shift Due to Temperature Change: | ±0.4% f.s.v./10°C |
| Configuration: | 4-arm Wheatstone bridge strain gage |
|---|---|
| Internal Shunt Calibration: | 80% f.s.v ±1.0% |
| Output Signal: | 3.33 mV/V |
| Supply Voltage: | 10 V DC, max. 12 V DC |
| Zero Balance: | ±10% f.s.v |
| Strain Resistance: | 350Ω |
| Leakage Resistance: | 1000MΩ at 50 Vdc |
Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)
Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.
Indicator 1490 is a universal device with one or two configurable alarms, optional linear process variable retransmission, optional pressure sensor power supply, and optional Modbus communication.
The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
The ATC 990 series controller is a time-tested product that has received a new design and new functions. Compared to classic features such as pressure, temperature and alarm setting options, these new models are enhanced with the ability to monitor and record parameters to a USB drive, the undeniable advantage is the large display and interactive environment when setting up the controller.
These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.
Separate Bendix connectors. In the variant of the 6-pin connector.
