Characteristics of the MDA Series
All sensors in this series can be configured. Optional accessories offer a more resistant membrane against abrasive, aggressive materials or without mercury filling and much more.
Contact us, we will be happy to help you with the configuration.
TDA models are the same as MDA, but are equipped with temperature sensors in the form of a thermocouple. J, K, T, E or PT 100 thermocouples are available.
Output signal |
Sensor power supply |
Pressure range |
Units |
3.33 mV/V |
10 - 12 VDC |
from 0 - 35 to 0 - 2000 |
Bar |
MDA 420 | 422 | TDA 432
MDA420 - Sensor with rigid stem
MDA422 - Sensor with rigid stem and flexible capillary
TDA 432 - Combined sensor with rigid stem, flexible capillary and built-in temperature sensor
The sensors of this 42x series are specific with an 6-pin threaded connector Bendix and an accuracy of ±0.25% of the pressure range. Power supply via 10-12 V DC. Membrane made of 15-5 PH material and coated with DyMAX layer. The length of the fixed rod and the flexible capillary can be optionally configured.
Output signal 3.33 mV / V
Accuracy ±0.25%
Power supply 10-12 Vdc
6 Pin connector
R-Cal calibration

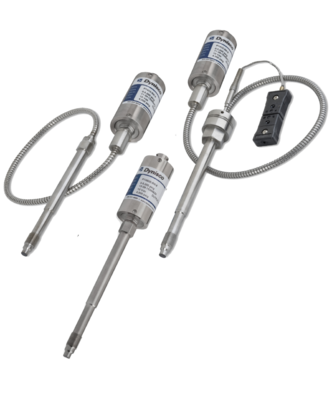

MDA 460 | 462 | TDA 463
MDA 460 - Sensor with rigid stem
MDA 462 - Sensor with rigid stem and flexible stem
TDA 463 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor
The sensors of this 46X series are specific with a 6-pin bayonet connector and an accuracy of ±0.5% of the pressure range. Power supply via 10-12 V DC. Membrane made of 15-5 PH material and coated with the DyMAX layer. The length of the rigid stem and the flexible capillary can be optionally configured.
Output signal 3.33 mV/V
Accuracy ±0.5%
Power supply 10-12 Vdc
6 Pin connector
Shunt calibration
MDA 410 | 412 | TDA 412 (NaK)
MDA 410 - Sensor with rigid stem
MDA 412 - Sensor with rigid stem and flexible stem
TDA 412 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor
Mercury-free sensors with 10-12 Vdc power supply. They meet the most stringent conditions controlled by the FDA - the Food and Drug Administration and the USDA. The membrane is made of Inconel 718. The length of the rigid rod and flexible capillary can be made and adjusted to the required size.
0 - 35 bar to 0 - 700 bar
Mercury-free sensor
Output signal 3.33 mV/V
6 Pin connector
Accuracy ±0.25%
Use up to 540°C
Shunt calibration
MDA 435
MDA435 - Sensor with flexible and exposed capillary
The sensors of this series MDA435 have a flexible capillary with an exposed mounting tip, which is used in an area where it is not possible to install a standard sensor with a flexible capillary and a rigid stem. Individual models have different accuracy. Model 435 has an accuracy of 0.50% of the pressure range. Power supply with 10-12 V DC and membrane made of 15-5 PH material and coated with DyMAX layer. The length of the flexible capillary can be optionally configured.
Output signal 3.33 mV/V
Accuracy better than 0.50%
Power supply 10-12 Vdc
6 Pin connector
Shunt calibration

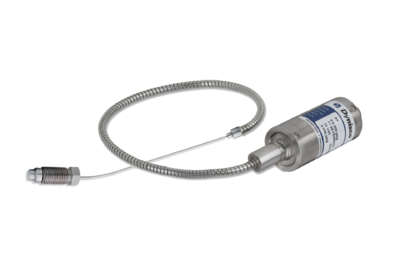

MDA 467
MDA467 - Sensor with flexible and exposed capillary
The sensors of this MDA467 series have a flexible capillary with an exposed mounting tip, which is used in an area where it is not possible to install a standard sensor with a flexible capillary and a rigid stem. Individual models have different accuracy. Model 467 has an accuracy of 1.00% of the pressure range. Power supply with 10-12 V DC and membrane made of 15-5 PH material and coated with DyMAX layer. The length of the flexible capillary can be optionally configured.
Output signal 3.33 mV/V
Accuracy better than 1.00%
Power supply 10-12 Vdc
6 Pin connector
Shunt calibration
