Echo Series

Characteristics of the MDA ECHO

The ECHO series is a low-cost variant for applications that do not require the highest accuracy and reliability. These sensors cannot be optionally specified as other model series, it is a quality alternative with a fast delivery time.
New with the possibility of mercury-free NAK.

Contact us, we will be happy to help you with the configuration.

Output signal	Power supply	Pressure range	Units
3.33 mV/V	10 - 12 Vdc	100 - 700	Bar
4 - 20 mA	14 - 30 Vdc	1.5M - 10M	PSI
0 - 5 Vdc	16 - 30 Vdc	10 - 70	MPa
0 - 10 Vdc	16 - 30 Vdc	100 - 700	Kg/cm2

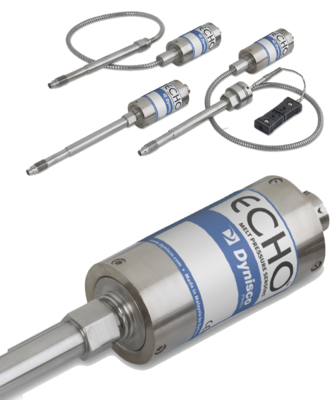

ECHO Series

Trusted for Quality, Reliability and Accurate Performance at an Affordable Price

Dynisco's Echo™ Series of melt pressure sensors offer quality performance and value for plastic processing utilizing standard configurations and pressure ranges. Echo sensors are designed to meet customer requirements by providing a combination of economic value and performance for general extrusion applications while providing a ±0.2% repeatability when measuring process pressures. Use Echo Series sensors when the application requires a quality measurement for optimized control, but not the costs of all the extra features.

Podrobnosti o izdelku

2 year warranty

Accuracy better than ±0.5%

TiAIN diaphragm coating is standard

mV/V, 0-10VDC, or mA outputs available

Integral temperature sensor option

Output configurations

0 - 1000 Bar

Alternative fill model available
