Characteristics of the MDT Series

All sensors in this series can be configured. Optional accessories offer a more resistant membrane against abrasive, aggressive materials or without mercury filling and much more.
Contact us, we will be happy to help you with the configuration.


Pressure sensors with built-in amplifier (signal converter).
Depending on the conductor type, 2-wire mA, 3 or 4-conductor Vdc.

Output signal

Sensor power supply

Pressure range

Units

Signal Converter

10 - 32 VDC

0 - 2000

Bar

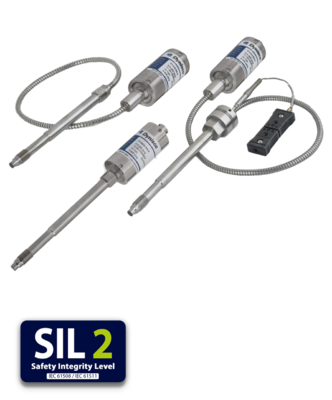

MDT 420 | 422 | TDT 432

MDT420 - Sensor with rigid stem
MDT422 - Sensor with flexible capillary.
TDT432 - Sensor with flexible capillary and temperature sensor.


Sensor with integrated amplifier (signal converter). Scanning accuracy better than 0.50% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

Output signal according to configuration

Accuracy better than 0.25%

Power supply 10 -36 V dc

6 Pin connector

R-Cal calibration

Up to 400°C

CE EAC GOST ISO9001 SIL2 RoHS2

MDT 460 | 462 | TDT 463

MDT460 - Sensor with rigid stem
MDT462 - Sensor with flexible capillary.
TDT463 - Sensor with flexible capillary and temperature sensor.


Sensor with integrated amplifier (signal converter). Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

Output signal according to configuration

Accuracy better than 0.50%

Power supply 10 -36 V dc

6 Pin connector

R-Cal calibration

Up to 400°C

CE EAC GOST PLC SIL2 RoHS2

MDT 435

MDT435 - Sensor with flexible and exposed capillary


Sensor with an amplifier (signal converter) in a version with flexible capillary and exposed membrane. Scanning accuracy better than 0.50% of the range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

Accuracy better than 0.25%

Power supply 10 -36 V dc

6 Pin connector

R-Cal calibration

Up to 400 °C

For small areas

Flexible capillary

Electrical built-in calibration

Various high level outputs

CE EAC GOST ISO9001 PLC SIL2 RoHS2

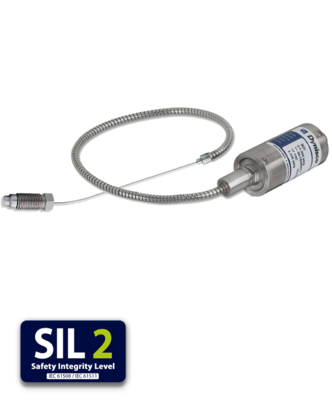

MDT 467

MDT467 - Sensor with flexible and exposed capillary


Sensor with amplifier (signal converter) in version with flexible capillary and exposed membrane. Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

Accuracy better than 0.5%

Power supply 10 -36 V dc

6 Pin connector

R-Cal calibration

Up to 400 °C

For small areas

Flexible capillary

Electrical built-in calibration

Various high level outputs

CE EAC GOST ISO9001 PLC SIL2 RoHS2
