General Purpose Smart Pressure Sensors for Hazardous Locations

SPX 5-Series

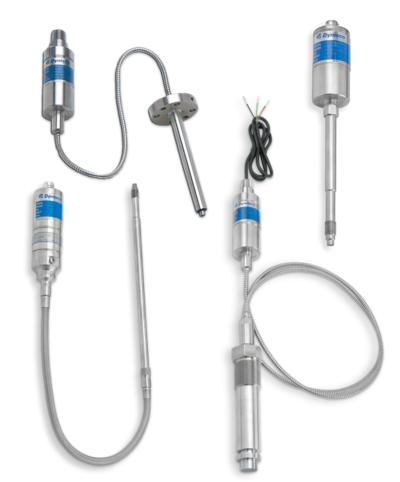

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynaLarity™, a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor.  The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections.

The SPX5 Series includes models SPX5342, SPX5343, SPX5344, SPX5390, SPX5391, and SPX5392.

⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.



SPX5343 Series


The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD config



Performance Characteristics


Output: 4 - 20 mA, with optional HART™
Input Voltage: 16 - 36 Vdc (Std); 16 - 30 Vdc (ATEX IS)
Accuracy:

All Models ± 0.20%

Accuracy is defined as the combined error expressed as a percentage of full scale output with the specifications of: Electronics ambient temperature, capillary of <= 36"; DyMax coated 15-5 SST diaphragm; Best Straight Line (BSL) %FS, per ISA-37.1 Consult Factory for availability and specifications of other configurations

Repeatability: ±0.1%
Rangeability: 3:1 Turndown
Over Pressure: 2X FSO or 35,000 psi,whichever is less (5390, 5391, & 5392 1.5 x FSO for 10,000 psi)
Zero Balance Adjustment Range: -40% to +10%; -80% to 20% for FSP < 500 psi
Load Resistance 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc
Electronics Ambient Temperature: 70°F (20°C)
Electronics Operating Temperature: -20 to 185°F (-29 to 85°C)
Diaphragm Temperature: 750°F (400°C) max [Models 5344, 5390, 5391, 5392 limited to 600°F (315°C)]
Electronics Compenstated Temperature Range: 0 to 150°F (-18 to 65°C)
Zero Shift (Electronics Temp Change): All Models: 0.01% F.S./°F max (0.02% F.S./°C max)
Span Shift (Electronics Temp Change): All Models: 0.01% F.S./°F max (0.02% F.S./°C max)
Zero Shift (Snout Temp Change):

5344/5390/5391/5392: 1 psi/100°F (from 75-450°F) typical 2 psi/100°F (from 450-600°F) typical

5342/5343: 15 psi/100°F (27 psi/100°C) typica

Mechanical Characteristics



Mounting Torque:

5342: 500 inch-lbf max
5343: 50 inch-lbf max
5344: 350 inch-lbf max
5390: 350 inch-lbf max
5391: 350 inch-lbf max
5392: 80 ft-lbf max

Standard Wetted Parts: DyMax coated 15-5 PH SST

Approvals & Certifications




ATEC/IECEx Intrinsically Safe
SIL 2 (pressure output) & PL'c' (relay output)
FM & CSA Explosion Proof
Additional approvals available (consult factory)



Ordering Guide for Models SPX5343 Series

SPX5343 Series - Dimensions

All dimensions are inches (mm) unless otherwise specified.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.

Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

PPS1210 calibration pump

The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
