PT4194 (Oil) 4-20mA
PT4194 sensors provide an industry standard 4-20 mA amplified signal designed to work with DCS and PLC. It is a sensor with ± 0.5% accuracy ideal for the food or pharmaceutical industry requiring easy installation, repeatability and reliability. It is filled with mineral oil that meets the requirements of FDA 21 CFR 178.3620, 21 CFR 172.878 and 21 CFR 573.680.
The PT4194 is equipped with a new automatic zero calibration function. Auto-Zero gives the user the ability to install the sensor right out of the box and perform a calibration at the touch of a button. Combined constructions with thermal thermocouple or RTD are also available. The PT4194 comes with a 1 / 2-20 UNF mounting thread for simple and easy installation for standard mounting holes.
All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.
Melt pressure sensor in a design with a fixed stem
Melt pressure sensor in a design with a flexible capillary
Melt pressure sensor in combined design with temperature sensor

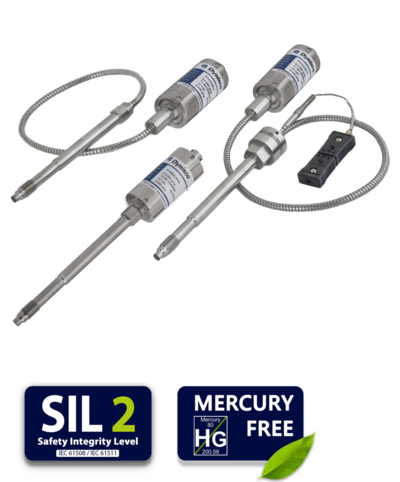

Melt pressure sensors series
Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.
Sensor terminal and compatible cable connector
Adjusting screws - used to adjust the zero and upper range of the sensor
Detail - Bayonet cable connector Amphenol 6-PIN
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco Configuration Code:
Ideal for food or medical applications
Our pressure sensors offer efficient, accurate, and durable solutions for reliable and safe pressure measurement. These sensors are used in a variety of industrial areas, where they monitor and measure the pressure of molten materials, ensuring optimal operation of production processes. Due to their resistance to high temperatures and pressures, which are typical for these applications, they represent a suitable choice for diverse uses. When selecting a sensor, it is important to consider the specific requirements of your application, such as temperature range, pressure range, and materials with which the sensor will interact. The correct choice of sensor guarantees reliable and accurate results and a long service life of the device without any problems. Installing the sensor into the mounting hole of the production line is simple.
PT4194 Pressure Sensors - With rigid stem and flexible capillary
Pressure sensors with flexible capillaries represent a professional solution suitable for applications with limited space or exposure to radiant heat from heating elements in production lines. Thanks to the thoughtful extended design, the sensor's electronics are located out of reach of the radiant heat source, reducing the risk of damage.
The flexible capillary is designed to be resistant to damage and allow a high degree of bending, which facilitates installation and handling of the sensor. It is essential to properly secure the sensor head to the included adapter, which is part of the package. To achieve optimal performance, we recommend placing the adapter on a part of the machine where unwanted vibrations or shocks do not occur, as these could negatively affect the sensor.
The length of the rod and flexible capillary can be customized according to individual needs, as well as other optional components. This ensures maximum flexibility in integrating the sensor into a wide range of industrial applications.
TPT4194 Pressure Sensors - Combined sensor with rigid stem, flexible capillary and built-in temperature sensor
Combined pressure sensors with flexible capillaries represent a professional solution suitable for applications with limited space or exposure to radiant heat from heating elements in production lines. Thanks to the thoughtful extended design, the sensor's electronics are located out of reach of the radiant heat source, reducing the risk of damage.
Additionally, these sensors are equipped with a temperature sensor, allowing the customer to choose the type of sensor, whether it is a type J, K thermocouple, or an RTD (pt100). By selecting a compatible sensor for temperature measurement, the customer obtains information about the melt temperature from a single process connection, increasing measurement efficiency and accuracy.
The flexible capillary is designed to be resistant to damage and allow a high degree of bending, which facilitates installation and handling of the sensor. It is essential to properly secure the sensor head to the included adapter, which is part of the package. To achieve optimal performance, we recommend placing the adapter on a part of the machine where unwanted vibrations or shocks do not occur, as these could negatively affect the sensor.
The length of the rod and flexible capillary can be customized according to individual needs, as well as other optional components. This ensures maximum flexibility in integrating the sensor into a wide range of industrial applications.
Performance Characteristics
Outputs: |
4 - 20 mA |
Input Voltage: |
14 - 36 Vdc |
Accuracy: |
± 0.5% FSO* |
Repeatability: |
± 0.2%FSO |
Configuration: |
Four-arm bonded foil Wheatstone bridge strain gage |
Load Resistance: |
0 - 1,100 Ohms |
Over Pressure: |
2X FSO |
Internal Shunt Calibration: |
(R-Cal): 80% FSO +/- 0.5% |
Insulation Resistance: |
1000 megohms @ 50 Vdc |
Temperature & Mechanical Characteristics
Max Diaphragm Temperature: |
527°F (275°C) |
Zero Shift (due to temperature change): |
36 psi/100° F Typical (65 psi/100° C) |
Electronics Operating Temperature: |
-20° F to 185° F (-25° C to 85° C) |
Electronics Operating Temperature: |
250ºF (121ºC) |
Zero Shift (due to temperature change): |
± 0.05% FS/o F max (+/- 0.10% FS/o C max) |
Mounting Torque: |
500 inch/lbs. max |
Standard Wetted Parts: |
DyMax™ coated 15-5 PH SST |
*The organic oil fill may be susceptible to gas generation at high temperatures for extended periods which may affect zero value (and therefore accuracy). Request the product manual for a full explanation and recommended procedure to eliminate any observed offset.
Ordering Guide for PT4194 Series
PT4194 - Dimensions
All dimensions are inches (mm) unless otherwise specified.
TPT4194 - Dimensions
All dimensions are inches (mm) unless otherwise specified.
Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)
Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.
Indicator 1490 is a universal device with one or two configurable alarms, optional linear process variable retransmission, optional pressure sensor power supply, and optional Modbus communication.
The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
The ATC 990 series controller is a time-tested product that has received a new design and new functions. Compared to classic features such as pressure, temperature and alarm setting options, these new models are enhanced with the ability to monitor and record parameters to a USB drive, the undeniable advantage is the large display and interactive environment when setting up the controller.
The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
Separate Bendix connectors. In the variant of the 6-pin connector.
These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.
