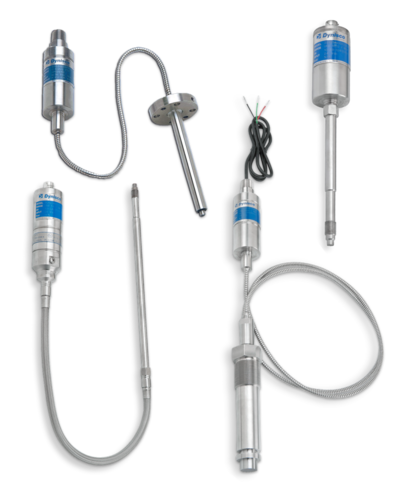

SPX4222 & SPX4622 Smart Pressure Sensor Series

SPX4222 & SPX4622

The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Dynisco SPX 4 Series Smart Pressure Sensor

Inquiry system

Configure your product, according to your requirements and needs. If you are not sure about the configuration, make the necessary information in the notes about the manufacturer of the sensor, even a competing one. We will be happy to help you find an alternative from Dynisco products. If your request is urgent, let us know, we will do our best to help you resolve this situation as quickly as possible. If we have this information, we can offer a model with small differences and you can have a sensor in your company the next day.

SPX-4 series - Pressure sensor - model:

Vaše osobní údaje budou zpracovány podle Podmínek zpracování osobních údajů.

General Purpose Smart Pressure Sensors for Hazardous Locations

SPX 4-Series

All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

The SPX4 Series includes models SPX4222, SPX4622, SPX4352, SPX4672, SPX4232, and SPX4502.

⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.



SPX4222 & SPX4622  Series


The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

Performance Characteristics


Output: 4 - 20 mA, with optional HART™
Input Voltage: 16 - 36 Vdc (Std); 16 - 30 Vdc (ATEX IS)
Accuracy:
Accuracy is defined as the combined error expressed as a percentage of full scale output with the specifications of: Electronics ambient temperature, capillary of <= 36"; DyMax coated 15-5 SST diaphragm; Best Straight Line (BSL) %FS, per ISA-37.1 Consult Factory for availability and specifications of other configurations

4222 ± 0.25% for pressure ranges >1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4232 ± 0.25% for pressure ranges >1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4352 ± 0.25% for pressure ranges > 1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4502 ± 0.50%
4622 ± 0.50%
4672 ± 0.50%

Repeatability: ±0.1%
Rangeability: 6:1 Turndown
Over Pressure: 2X FSO or 35,000 psi,whichever is less 1.2 X FSO 35,000 - 72,500 psi
Zero Balance Adjustment Range: -40% to +10%; -80% to 20% for FSP < 500 psi
Load Resistance 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc
Electronics Ambient Temperature: 70°F (20°C)
Electronics Operating Temperature: -20 to 185°F (-29 to 85°C)
Diaphragm Temperature: 750°F (400°C) max [SPX4502 model limited to 600°F (315°C)]
Electronics Compenstated Temperature Range:   0 to 150°F (-18 to 65°C)
Zero Shift (Electronics Temp Change): 4222: 0.01% F.S./°F max (0.02% F.S./°C max)
4232: 0.01% F.S./°F max (0.02% F.S./°C max)
4352: 0.01% F.S./°F max (0.02% F.S./°C max)
4502: 0.01% F.S./°F max (0.02% F.S./°C max)
4622: 0.05% F.S./°F max (0.10% F.S./°C max)
4672: 0.05% F.S./°F max (0.10% F.S./°C max
Span Shift (Electronics Temp Change): 4222: 0.01% F.S./°F max (0.02% F.S./°C max)
4232: 0.01% F.S./°F max (0.02% F.S./°C max)
4352: 0.01% F.S./°F max (0.02% F.S./°C max)
4502: 0.01% F.S./°F max (0.02% F.S./°C max)
4622: 0.02% F.S./°F max (0.04% F.S./°C max)
4672: 0.02% F.S./°F max (0.04% F.S./°C max)
Zero Shift (Snout Temp Change): 4222: 15 psi/100°F (27 psi/100°C) typical
4232: 15 psi/100°F (27 psi/100°C) typical
4352: 15 psi/100°F (27 psi/100°C) typical
4502: 1 psi/100°F (from 75-450°F); 2 psi/100°F (from 450-600°F) typical
4622: 25 psi/100°F (45 psi/100°C) typical
4672: 25 psi/100°F (45 psi/100°C) typical

Mechanical Characteristics



Mounting Torque:

4222: 500 inch-lbf max
4232: 50 inch-lbf max
4352: 500 inch-lbf max
4502: 350 inch-lbf max
4622: 500 inch-lbf max
4672: 500 inch-lbf max

Standard Wetted Parts: DyMax coated 15-5 PH SST

Approvals & Certifications




ATEX/IECEx Intrinsically Safe
SIL 2 (pressure output) & PL'c' (relay output)
Additional approvals available (consult factory)



Ordering Guide for Models SPX4222 & SPX4622

SPX4222 & SPX4622  Series - Dimensions

All dimensions are inches (mm) unless otherwise specified.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
