SPX series

SPX2242 Smart Pressure Sensor Series

SPX2243

The Dynisco SPX 2-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

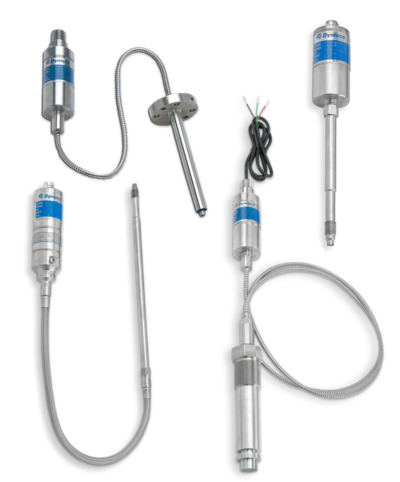

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Inquiry system

Configure your product, according to your requirements and needs. If you are not sure about the configuration, make the necessary information in the notes about the manufacturer of the sensor, even a competing one. We will be happy to help you find an alternative from Dynisco products. If your request is urgent, let us know, we will do our best to help you resolve this situation as quickly as possible. If we have this information, we can offer a model with small differences and you can have a sensor in your company the next day.

Dynisco Configuration Code:

Vaše osobní údaje budou zpracovány podle Podmínek zpracování osobních údajů.

General Purpose Smart Pressure Sensors for Hazardous Locations

Available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

The SPX 2 Series includes models 2241, 2242, 2243,2244, 2290, 2291,  and 2292.

⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.



SPX2243 Series


The Dynisco SPX 2-Series is a smart 4-20mA pressure

 transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections. The SPX 2-Series is an all welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

Performance Characteristics


Output: 4 - 20 mA, with optional HART™
Input Voltage: 16 - 36 Vdc (Std); 16 - 30 Vdc (ATEX IS)
Accuracy:
Accuracy is defined as the combined error expressed as a percentage of full scale output with the specifications of: Electronics ambient temperature, capillary of <= 36"; DyMax coated 15-5 SST diaphragm; Best Straight Line (BSL) %FS, per ISA-37.1 Consult Factory for availability and specifications of other configurations

2241 ± 1.0% 2242 ± 0.25% for pressure ranges >= 1,500 psi; ± 0.50% for pressure ranges < 1,500 psi

2243 ± 0.25% for pressure ranges >= 1,500 psi; ± 0.50% for pressure ranges < 1,500 psi

2244 ± 0.25% for pressure ranges >= 500 psi; ± 1.0% for pressure ranges < 500 psi

2290/2291/2292 ± 0.50%

Repeatability: ±0.1%
Rangeability: 6:1 Turndown (3:1 Turndown for Model SPX2290)
Over Pressure: 2X FSO or 35,000 psi,whichever is less (2290,2291, & 2292 1.5 x FSO for 10,000 psi)
Zero Balance Adjustment Range: -40% to +10%; -80% to 20% for FSP < 500 psi
Load Resistance: 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc
Electronics Ambient Temperature: 70°F (20°C)
Electronics Operating Temperature: -20 to 185°F (-29 to 85°C)
Diaphragm Temperature: 750°F (400°C) max [Models 2241, 2244, 2290, 2291, 2292 limited to 600°F (315°C)
Electronics Compenstated Temperature Range: 0 to 150°F (-18 to 65°C)
Zero Shift (Electronics Temp Change): All Models: 0.01% F.S./°F max (0.02% F.S./°C max)
Span Shift (Electronics Temp Change: All Models: 0.01% F.S./°F max (0.02% F.S./°C max)
Zero Shift (Snout Temp Change):

2241/2244//2290/2291/2292: 1 psi/100°F (from 75-450°F) typical 2 psi/100°F (from 450-600°F) typical

2242/2243: 15 psi/100°F (27 psi/100°C) typical



Mechanical Characteristics



Mounting Torque:

2241: 350 inch-lbf max
2242: 500 inch-lbf max
2243: 50 inch-lbf max
2244: 350 inch-lbf max
2290: 350 inch-lbf max
2291: 350 inch-lbf max
2292: 80 ft-lbf max

Standard Wetted Parts: DyMax coated 15-5 PH SST

Approvals & Certifications




ATEX/IECEx Intrinsically Safe
SIL 2 (pressure output) & PL'c' (relay output)
FM & CSA Explosion Proof
Additional Approvals are Available



Ordering Guide for Models SPX2243

SPX2243 Series - Dimensions

All dimensions are inches (mm) unless otherwise specified.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.

Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

PPS1210 calibration pump

The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
