DYKE
The Dynisco Melt Thermocouple Series DYKE is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of a thermal insultation of the housing. The sensor tip is being ceramically insulated from the housing. These temperature sensors are especially suitable for the use in high abrasive medial.

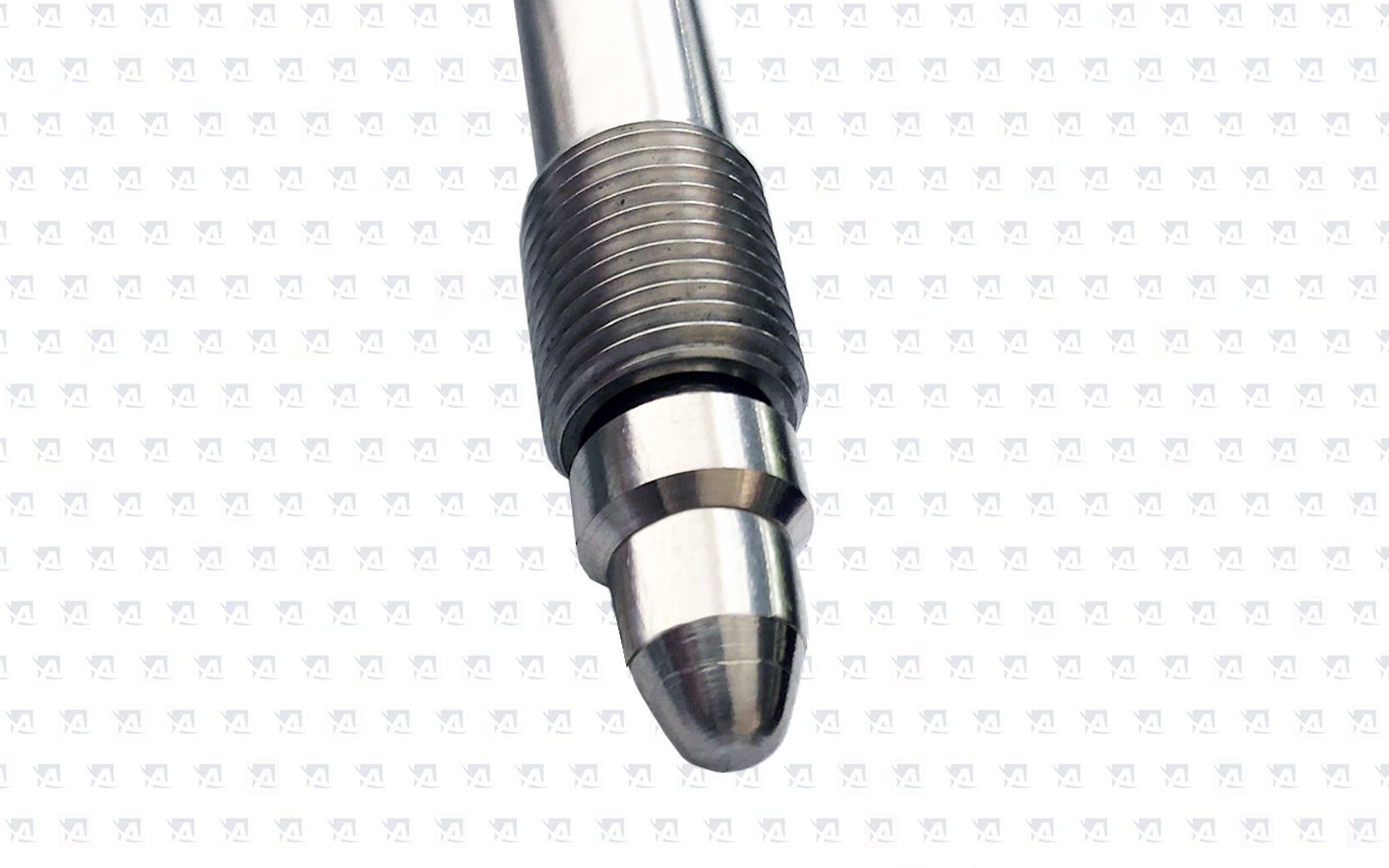

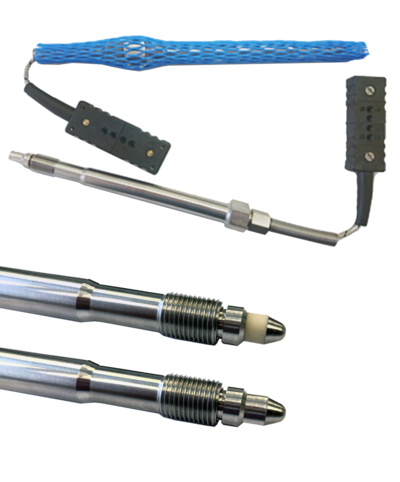

DYKE with ceramic tip insulation

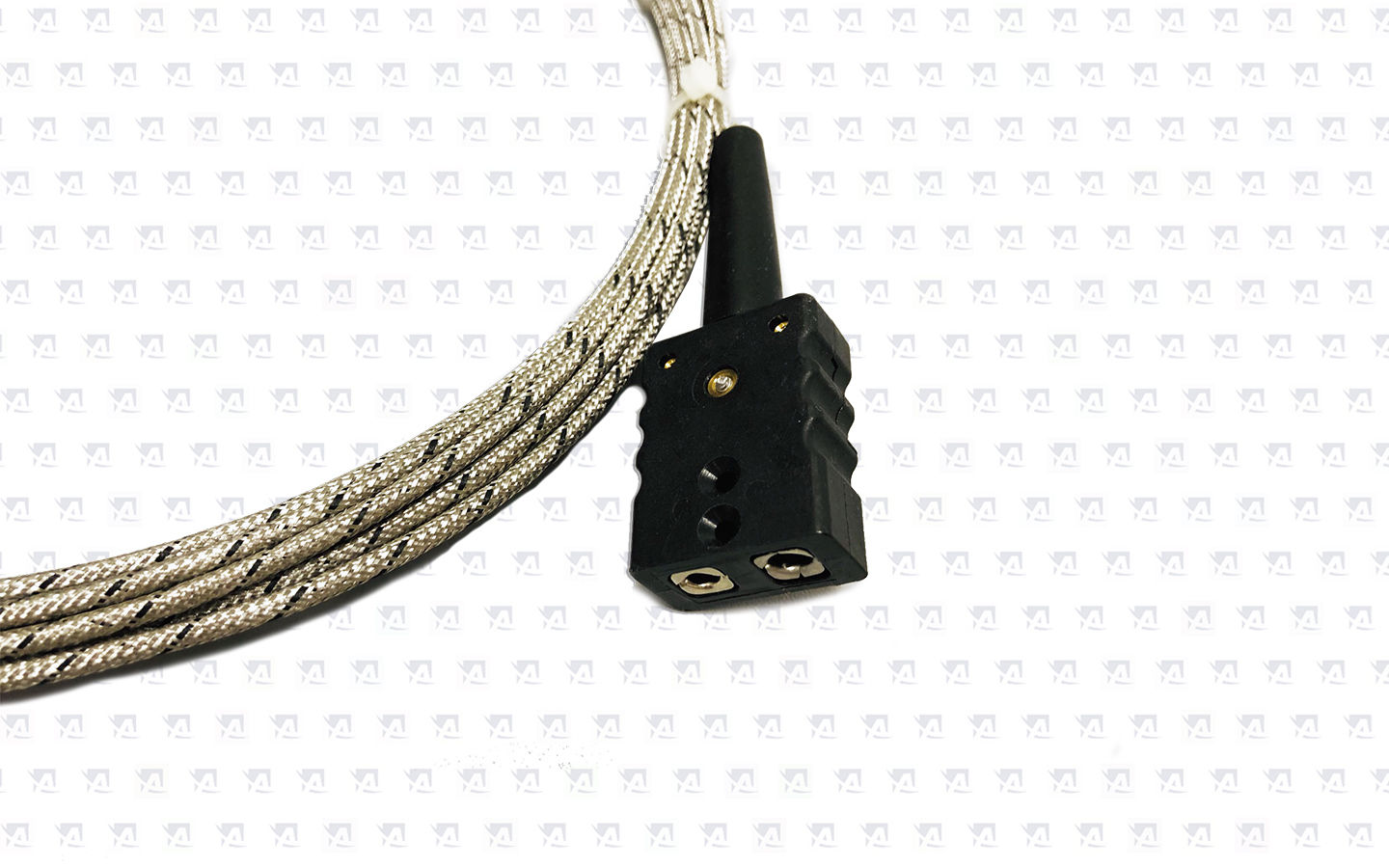

Cable to Dyke temperature sensor

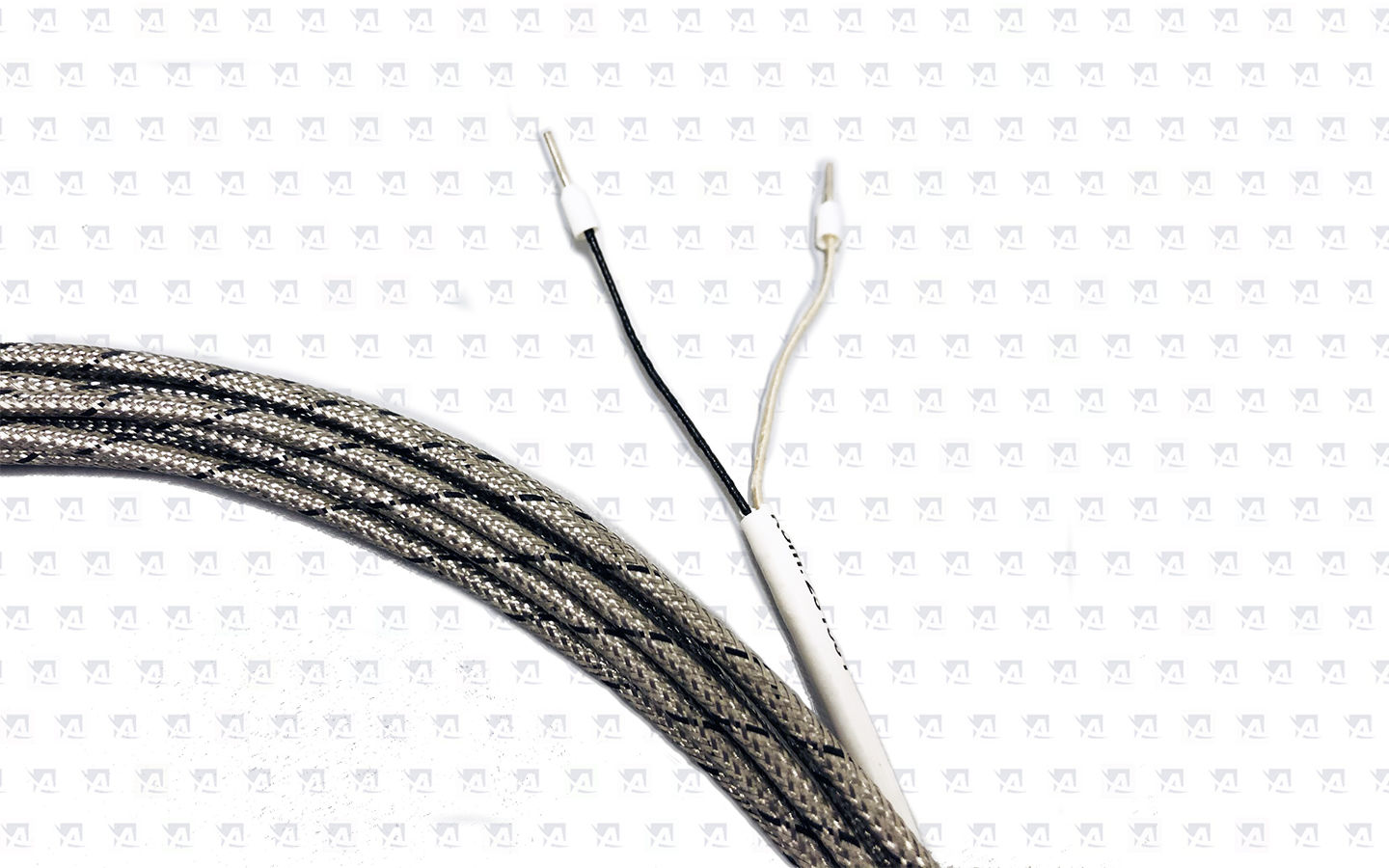

Cable to Dyke temperature sensor

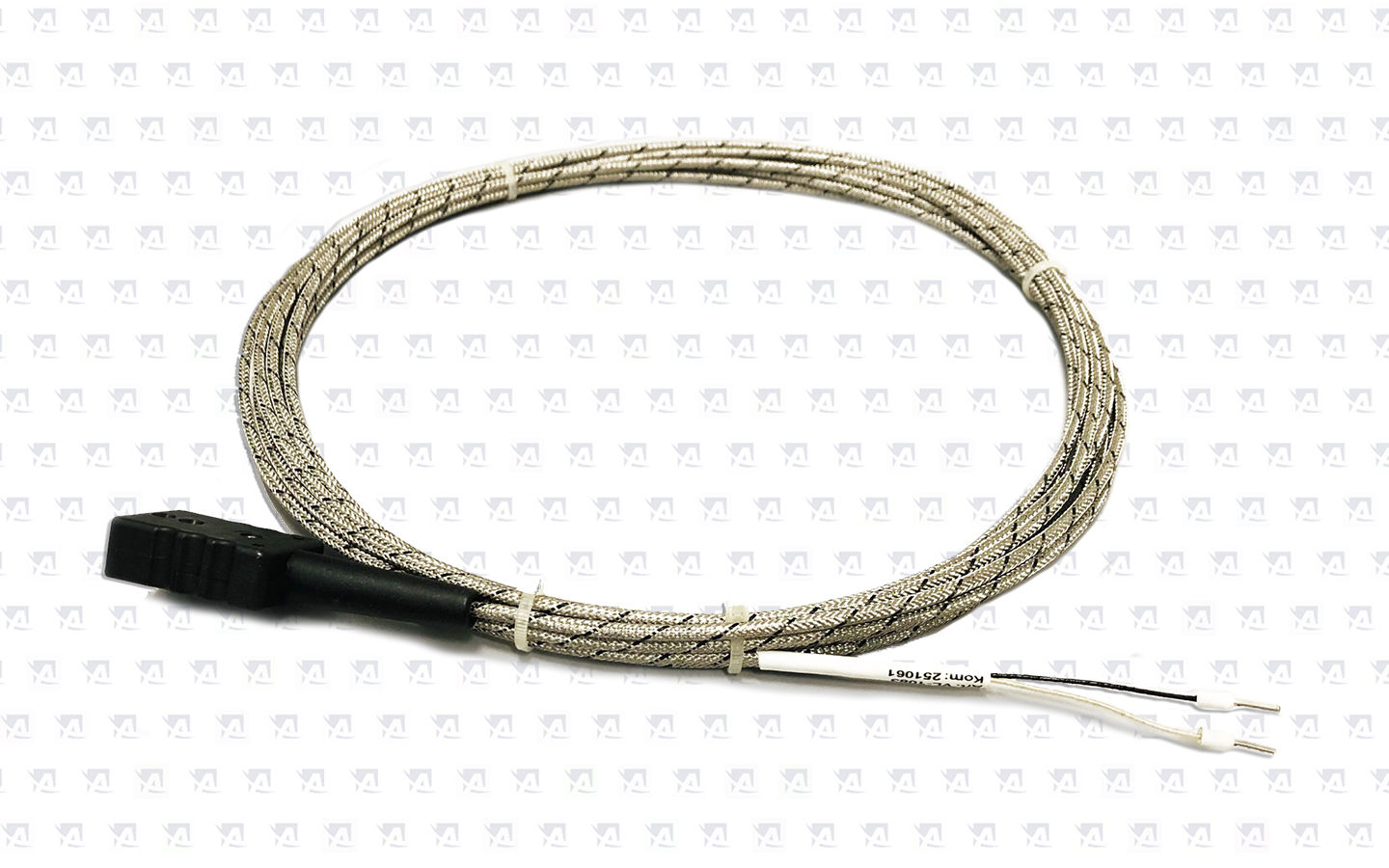

Cable to Dyke temperature sensor
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco Configuration Code:
Reliable and safe temperature measurement system
Melt Temperature Probe Series DYKE
The Dynisco Melt Thermocouple Series DYKE is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of a thermal insultation of the housing. The sensor tip is being ceramically insulated from the housing. These temperature sensors are especially suitable for the use in high abrasive medial.
Technical Data / Operating Data
Thread: |
1/2"-20 UNF, M18 x 1.5 or M14 x 1.5 |
Stem Length: |
152 mm standard, others on request |
Mounting Thread: |
rotary, if ceramically insulated rigid |
Blade Length: |
conical, selecatable ceramical insulation |
Material in Contact with Media: |
Mat. No 1.4571 |
Electrical Characteristics
Thermocouple: |
J, K, L, other types on request |
RTD: |
wireable as 2-, 3- or 4-wire |
Connector: |
IEC-Connector for Thermocouples, DIN-Connector for RTD |
Pipe Connection: |
Straight or 90° angled |
Cable Length: |
150 mm, others on request |
Use in hazardous environments with suitable accessory equiptment possible
Ordering Guide for DYKE Series
DYKE - Dimensions
All dimensions are inches (mm) unless otherwise specified.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
The 1496 series temperature controllers represent an economical solution for precise temperature control of the machine. Thanks to its DIN size and several output configurations, the controller is suitable for twin and single screw extruders, both for screw temperature zones and for adapter zones, together with heating / cooling for individual zones.
The 1498 series temperature controllers represent an economical solution for precise temperature control of the machine. Thanks to its DIN size and several output configurations, the controller is suitable for twin and single screw extruders, both for screw temperature zones and for adapter zones, together with heating / cooling for individual zones.
The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
The ATC 990 series controller is a time-tested product that has received a new design and new functions. Compared to classic features such as pressure, temperature and alarm setting options, these new models are enhanced with the ability to monitor and record parameters to a USB drive, the undeniable advantage is the large display and interactive environment when setting up the controller.
1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.
The DYMT Series features temperature sensors specifically designed to meet the requirements of the polymer industry. The mounting thread is compatibleThe Melt Thermocouple Series DYMT is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement.
