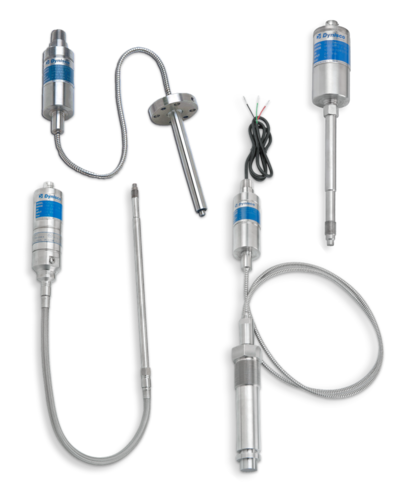

The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Configure your product, according to your requirements and needs. If you are not sure about the configuration, make the necessary information in the notes about the manufacturer of the sensor, even a competing one. We will be happy to help you find an alternative from Dynisco products. If your request is urgent, let us know, we will do our best to help you resolve this situation as quickly as possible. If we have this information, we can offer a model with small differences and you can have a sensor in your company the next day.
All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.
The SPX4 Series includes models SPX4222, SPX4622, SPX4352, SPX4672, SPX4232, and SPX4502.
⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.
SPX4232 Series
The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.
Performance Characteristics
| Output: | 4 - 20 mA, with optional HART™ |
|---|---|
| Input Voltage: | 16 - 36 Vdc (Std); 16 - 30 Vdc (ATEX IS) |
| Accuracy: Accuracy is defined as the combined error expressed as a percentage of full scale output with the specifications of: Electronics ambient temperature, capillary of <= 36"; DyMax coated 15-5 SST diaphragm; Best Straight Line (BSL) %FS, per ISA-37.1 Consult Factory for availability and specifications of other configurations |
4222 ± 0.25% for pressure ranges >1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4232 ± 0.25% for pressure ranges >1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4352 ± 0.25% for pressure ranges > 1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4502 ± 0.50% |
| Repeatability: | ±0.1% |
| Rangeability: | 6:1 Turndown |
| Over Pressure: | 2X FSO or 35,000 psi,whichever is less 1.2 X FSO 35,000 - 72,500 psi |
| Zero Balance Adjustment Range: | -40% to +10%; -80% to 20% for FSP < 500 psi |
| Load Resistance | 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc |
| Electronics Ambient Temperature: | 70°F (20°C) |
| Electronics Operating Temperature: | -20 to 185°F (-29 to 85°C) |
| Diaphragm Temperature: | 750°F (400°C) max [SPX4502 model limited to 600°F (315°C)] |
| Electronics Compenstated Temperature Range: | 0 to 150°F (-18 to 65°C) |
| Zero Shift (Electronics Temp Change): | 4222: 0.01% F.S./°F max (0.02% F.S./°C max) 4232: 0.01% F.S./°F max (0.02% F.S./°C max) 4352: 0.01% F.S./°F max (0.02% F.S./°C max) 4502: 0.01% F.S./°F max (0.02% F.S./°C max) 4622: 0.05% F.S./°F max (0.10% F.S./°C max) 4672: 0.05% F.S./°F max (0.10% F.S./°C max |
| Span Shift (Electronics Temp Change): | 4222: 0.01% F.S./°F max (0.02% F.S./°C max) 4232: 0.01% F.S./°F max (0.02% F.S./°C max) 4352: 0.01% F.S./°F max (0.02% F.S./°C max) 4502: 0.01% F.S./°F max (0.02% F.S./°C max) 4622: 0.02% F.S./°F max (0.04% F.S./°C max) 4672: 0.02% F.S./°F max (0.04% F.S./°C max) |
| Zero Shift (Snout Temp Change): | 4222: 15 psi/100°F (27 psi/100°C) typical 4232: 15 psi/100°F (27 psi/100°C) typical 4352: 15 psi/100°F (27 psi/100°C) typical 4502: 1 psi/100°F (from 75-450°F); 2 psi/100°F (from 450-600°F) typical 4622: 25 psi/100°F (45 psi/100°C) typical 4672: 25 psi/100°F (45 psi/100°C) typical |
| Mounting Torque: |
4222: 500 inch-lbf max |
|---|---|
| Standard Wetted Parts: | DyMax coated 15-5 PH SST |
| ATEX/IECEx Intrinsically Safe | |
|---|---|
| SIL 2 (pressure output) & PL'c' (relay output) | |
| Additional approvals available (consult factory) |
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)
Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.
The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
