The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.

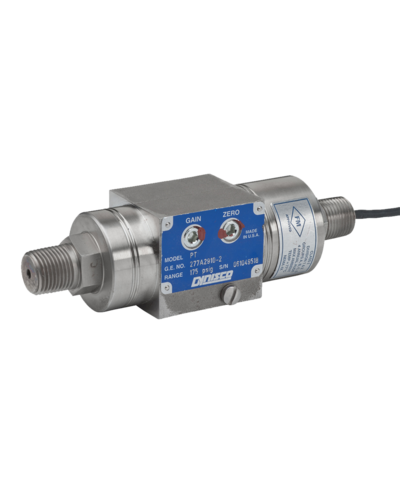

PT199 Pressure sensor
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco's PT199 pressure transmitter is designed to measure gas turbine pressure around the world. It provides information on various gas turbine system pressures for both gas and fuel flow control and/or turbine firing temperature control. ⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Pressure Range (psi): | 0-15 through 0-1500 |
|---|---|
| Accuracy: | ±0.25% FSO including linearity, hysteresis and repeatability; PT199 ±0.5% FSO |
| Full Scale Output: | 4-wire 0-5 Vdc |
| Zero Balance: | ±0.05 Vdc |
| Excitation: | ±12 Vdc for FM approved explosion proof units 28 Vdc max. |
|---|---|
| Connection: | 1/2” NPT male thread or 3/8” flared tube fitting |
| Internal Shunt Calibration: | 80% ±0.5% full scale typical (±1.0% maximum) |
| Excitation: | 10 Vdc recommended, 15 Vdc maximum |
| Operating Range: | +170°F (76.7°C) maximum |
|---|---|
| Temperature Effect On Zero: | Range dependent |
| Temperature Effect On Span: | Range dependent |
| Pressure Connections: | 1/2" NPT male thread |
|---|---|
| Proof Pressure | 2 x rated pressure |
| Materials Of Construction: | Stainless stee |
| Housing: | 303, 304 SST |
| Wetted Parts: | 15-5 SS |
| Weight: | 1.6 lbs |
| FM Approvals: | Class 1, Division 1 Groups A, B, C & D |
| 1/2” NPT(M) Conduit connection, four conductor #22 AWG 72” in length | |
|---|---|
Color: |
Function: |
| Red | + Signal |
| Black | - Signa |
| White | + Excitation |
| Green | - Excitation |
