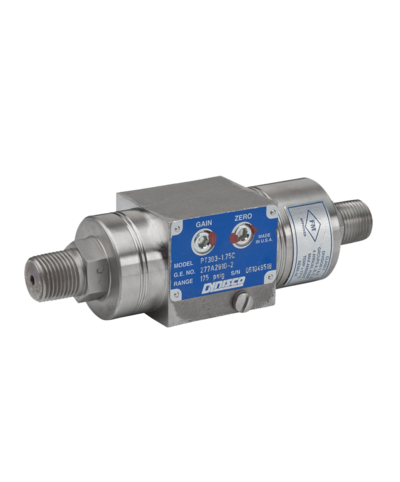

Dynisco's PT303 pressure transmitter is designed for gas turbine pressure applications in hazardous locations. They heavy duty construction and wide pressure ranges offer trouble-free operation and flexibility to meet your requirement.
PT303 Pressure sensor
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Rigid stem pressure transducers are very easy to install in the mounting hole of the production line. The problem occurs when the sensor is used incorrectly. This transducer can never be used in a vertical installation without thoroughly insulating of the transducer head. The electronics contained in the sensor would be highly exposed to radiant heat from the line and would cause early damage or displacement of measurement values. Therefore, if you are unsure of the correct installation always contact our technicians. If the sensor is repeatedly damaged it is not a defect in the sensor, but due to incorrect use or inappropriate configuration. We are able to solve these problems and offer you the ideal solution for your application.
| Pressure Range (psi): | 0-110 through 0-700 |
|---|---|
| Accuracy: | ±0.25% FSO including linearity, hysteresis and repeatability |
| Full Scale Output: | 4-wire 0-5 Vdc |
| Zero Balance: | ±12 Vdc for FM approved explosion proof units 28 Vdc max. |
| Excitation: | ±12 Vdc for FM approved explosion proof units 28 Vdc max. |
|---|---|
Color: |
Function: |
| Red | + Signal |
| Black | - Signal |
| White | + Excitation |
| Green | - Excitation |
| Operating Range: | +170°F (76.7°C) maximum |
|---|---|
| Temperature Effect On Zero: | Range dependent |
| Temperature Effect On Span: | Range dependent |
| Pressure Connections: | PT130: -65°F to +250°F (-54°C to +120°C) PT140/150/160: -20°F to +185°F (-29°C to +85°C) |
|---|---|
| Proof Pressure: | 0°F to +150°F (-18°C to +66°C) |
| Materials Of Construction: | PT130: ±0.005% full scale/°F (±0.009% full scale/°C) typical (±0.01%/±0.018% maximum); T140/150/160: ±0.02% full scale/°F (±0.036% full scale/°C) |
| Housing: | 303, 304 SST |
| Wetted Parts: | 5 x rated pressure |
| Wetted Material: | 15-5 SS |
| Weight: | 3.15 lbs |
| FM Approvals: | Class 1, Division 1 Groups A, B, C & D |
