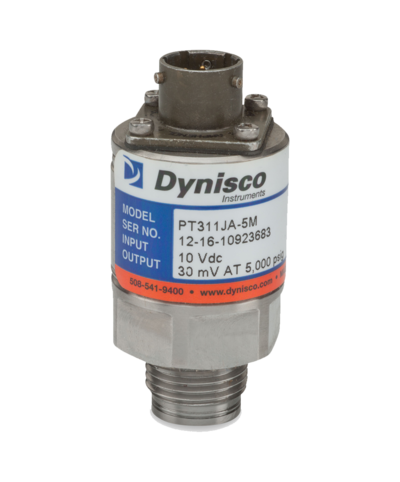

Dynisco's PT311JA flush diaphragm pressure transducer is designed for applications requiring a zero volume pressure port. The flush diaphragm improves frequency response and has excellent cleanability. The PT311JA has a full scale output of 3mV/V and offers reliable and accurate pressure measurement of gases, viscous liquids and slurries.
PT 311JA Pressure sensor
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco's PT311JA flush diaphragm pressure transducer is designed for applications requiring a zero volume pressure port. The flush diaphragm improves frequency response and has excellent cleanability. The PT311JA has a full scale output of 3mV/V and offers reliable and accurate pressure measurement of gases, viscous liquids and slurries.
| Pressure Range (psi): | 0 - 10,000 PSI |
|---|---|
| Accuracy: | ±0.5% full scale including linearity, hysteresis and repeatability |
| Full Scale Output: | 3 mV/V minimum |
|---|---|
| Excitation: | 10 Vdc recommended, 12 Vdc maximum |
| Insulation Resistance: | 1,000 megohms @ 50 Vdc |
| Bridge Resistance: | 350 Ohms nominal |
| Internal Shunt Calibration: | 80% full scale ±1.0% |
| Operating Range: | 65° to +250°F (-54°C to +120°C) |
|---|---|
| Compensated Range: | 0° to 150°F (-18°C to +66°C) |
| Temperature Effect On Zero: | ±0.01% full scale/°F (±0.018% full scale/°C) |
| Temperature Effect On Span: | ±0.02% full scale/°F (±0.036% full scale/°C) |
| Safe Overpressure: | 2 x rated pressure |
|---|---|
| Burst Pressure: | 4 x rated pressure |
| Wetted Material: | 17 - 4 PH stainless steel |
| Cover Material: | 303, 304 stainless steel |
| Pressure Port Seal: | Transducer supplied with DYNA-SEAL™ (P/N 633014) |
| Weight: | Approximately 5 ounces |
