Eight-core, shielded cable with threaded Bendix 8pin connector
These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.
Six-core cable
Shielded cable
Bayonet connector
6-Pin
Adapters for pressure sensors

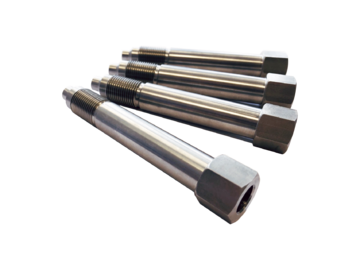

Adapter for Dynisco pressure sensors
Reduction for sensors from 1 / 2-20 UNF thread to M10x1.5 or M18x1.5 thread Another variant is the reduction from m10x1.5 to M18x, 15. These adapters are the fastest and most efficient way to turn an available (warehouse) sensor into a full-fledged replacement for a crisis situation.
High quality workmanship
Adapter options
1 / 2-20 UNF -> M10x1.5
M10x1.5 -> M18x1.5
Software Lava Suite
The new LaVa Suite software is now available for the LMI 5000 Series capillary plastometers. It offers complete and easy management when collecting, storing and working with digital data provided by the capillary plastometer. Lava Suite ™ software enables additional generated measurement results, filtering using identifiers and comparison of individual measurements on a larger scale, including time horizons.
Software Blue Control
Software for new UPR indicators and ATC controllers, which simplifies setup and configuration. The big advantage is OFF-LINE configuration and setting simulation, which reduces the risk of interrupting ongoing operations. With a PC, setup is even easier than with next-generation controllers and indicators.
UPR 900
ATC 990
1490
Backup
Simulation
Configuration
Guardian function
Machinery Directive standard EN ISO 13849-1 is a European safety regulation. This is a generic standard defining the requirements for the safety-related parts of control systems. Guardian meets the directive without the expense and complication of redundant sensors and external relay modules. Guardian also complies with NFPA 79 clauses A.9.2, A.9.4.1, A.9.4.3.2 as a way of evaluating safety-related aspects of control functions.
Integrated safety relay
Third party analysis (exida ™)
Meets performance level "c"
Machinery Directive (category 3)
Machinery Directive 2006 /42 / EC
SIL1 or 2 (output dependent)
NFPA provisions 79 A.9.2, A.9.4.1, A.9.4.3.2
Directive EM-C 2004/108 / EC
Available on all known Dynisco pressure sensors

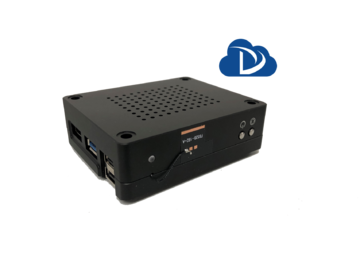

Edge Device - Cloud
Integrate and aggregate data from existing Dynisco products such as our LMI5000 & LMI4004 melt flow indexers, our LCR7000 capillary rheometer, and instrumentation like our UPR900 process indicator via the Dynisco Edge Device. With the Edge Device you have a single board computer that helps you better understand and manage:
Iot.Dynisco.com
Multiple user access
Data sharing
Working with results
Online access
Safety
Easy installation
8-pin connector
Threaded connection

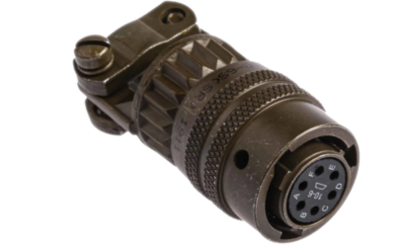

Bendix 6-PIN connectors
Separate Bendix connectors. In the variant of the 6-pin connector.
6-pin connector
Bayonet connection
Six-core, shielded cable with threaded Bendix 6pin connector
These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.
Six-core cable
Shielded cable
Bayonet connector
6-Pin
Transducer Mounting Hole Machining Tool Kit
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
Thread repair
Prevents damage to the sensor
Maintenance prevention
Leak removal
Transducer Mounting Hole Cleaning Tool Kit
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
Thread cleaning
Prevents damage to the sensor
Maintenance prevention
Melt removal
VPC 999084 Transducer Simulator
Model VPC-999084 simplifies the on-line troubleshooting of Dynisco strain gauge transducers, signal conditioners, and indicators. Its out-put can be varied in 20% steps or via a variable trim pot.
Optional sensor output sensitivity
Standard 6-pin Bendix connector
5 stage linear output 0 - 100%
Identifies defective components in the measuring loop
Simulates a number of sensors
Replacements for most pressure transducers
Indicator linearity check
Diagnostic tool
